NYLA Truck Specs – View/Download PDF
FEATURES & HIGHLIGHTS:
Grass Valley K-Frame XP compact; Studer Vista 5 M3; Sony HDC 2400/2500 Cameras; 2 31” Sony BVM-HX3110 Monitors in Production Monitor Wall; 2 Sony BVM-HX3110 in Video; Multiviews in Production, Audio, Video, and Tape; EVS W/ 2 42” LCD Monitors.

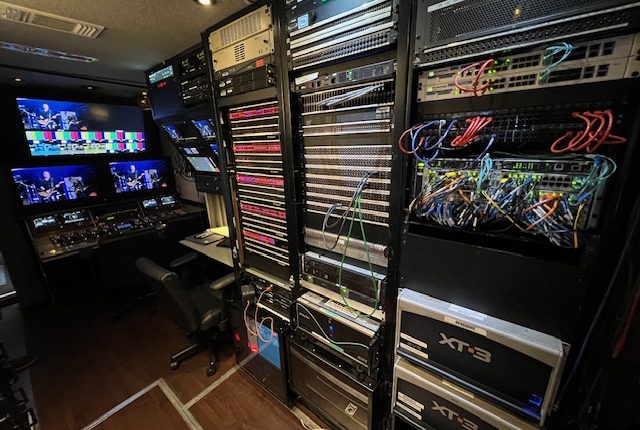

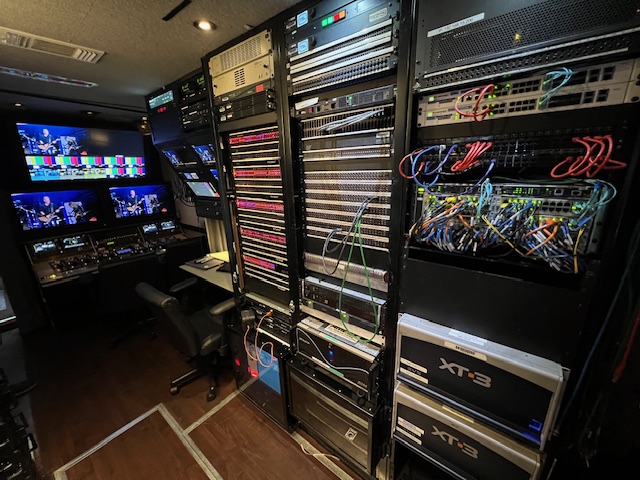

Engineering:
● Ross FR12 Router 160 in 160 out, 10 Frame Syncs Built In the Router, 15 For-A Up/Down/Cross/CC, Madi and Dante Directly To and From Router, 32 In 32 Out Fiber I/0
● 6 External Multiviewers
● 1 Video Stage Box 16 fiber to BNC and BNC to fiber converter
● Field Ferrofish A32pro Dante for Madi and Dante Needs
● 48 Port Managed Field Switch for All Network Needs
Video:
● 2 Sony BVM-HX3110 Monitors
● 4 Leader 5300a Scopes
● Multiviewer for Camera Repeats
● Sony HDC-2400/2500 Cameras (Wired for Up to 10)

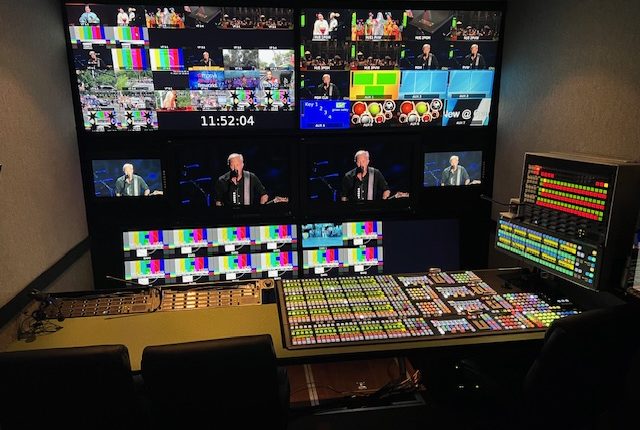

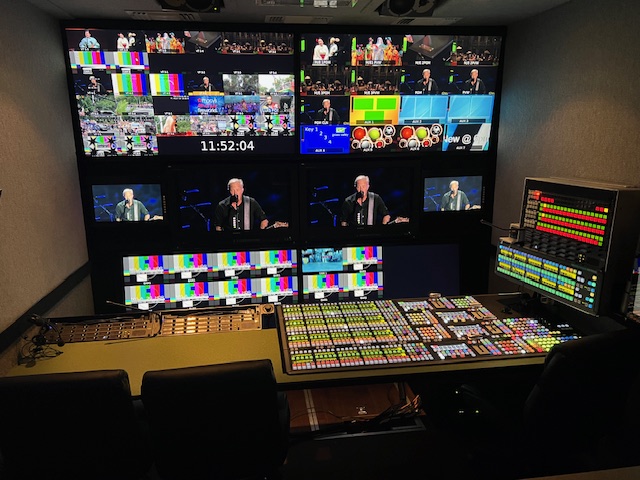

PRODUCTION
● Grass Valley K-Frame XP Compact Switcher (3G/HD) 80 In 40 Out, 5 M/E 8 Keyers per M/E
● 2 Sony BVM-HX3110 Monitors
● 2 55″ and 2 49″ Boland Monitors for Multiviewer Needs
AUDIO:
● Studer Vista 5 M3 W/ Vistamix and 42 Faders on the Surface
● Studer Stage Box W/ SMPTE Fiber (Optional)
RECORD & PLAYBACK:
● Up to 32 Record Channel Capability
● Wired for Two 8-channel DDRs
● 1OG Managed Network for Quicker Media Transfers
COMMUNICATIONS:
● Riedel Artist 128 Matrix
● 2 Connect Trio Telephone Interfaces
GRAPHICS:
● Wired for 1 CG Machines
Format Support :
● 720p 60Hz, 720p 59.94Hz, 720p 50Hz
● 1080i 30Hz, 1080i 29.97Hz, 1080i 25Hz,
● 1080p 30Hz, 1080p 29.97Hz, 1080p 25Hz, 1080p 24Hz, 1080p 23.98Hz
● 1080p-a 60Hz, 1080p-a 59.94Hz, 1080p-a 50Hz
POWER REQUIREMENTS:
● A-Unit:
200 AMP, Single Phase, 208 Volt, 3 Wire

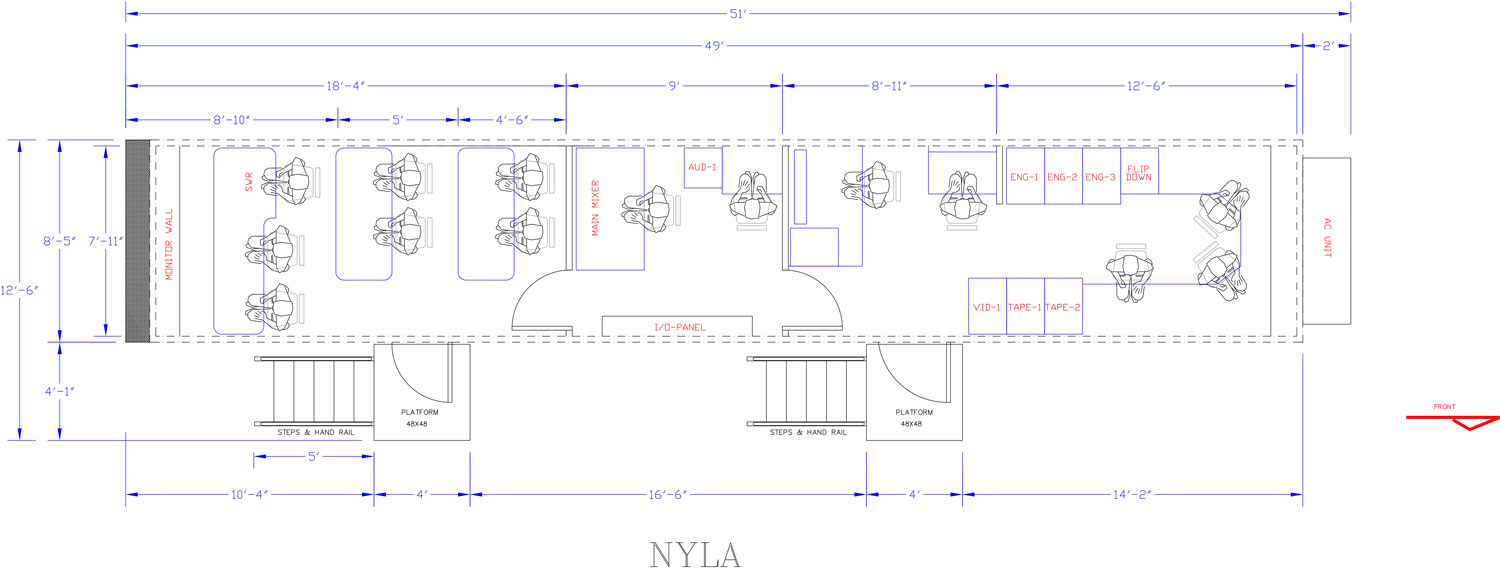

SPACE REQUIREMENTS:
● A-Unit: (All Measurements Without Tractor)
51’ Long x 13’6” High x 8’5” Wide–Closed (W/ the Longest Tractor Length is 72’)
53’ Long x 13’6” High x 12’6” Wide–W/ AC Flaps Open & Stairs/Platform
Mobile unit equipment list subject to change without notice. Additional equipment available.
Please consult with your AMV Account Executive regarding availability and per-event specifications.
