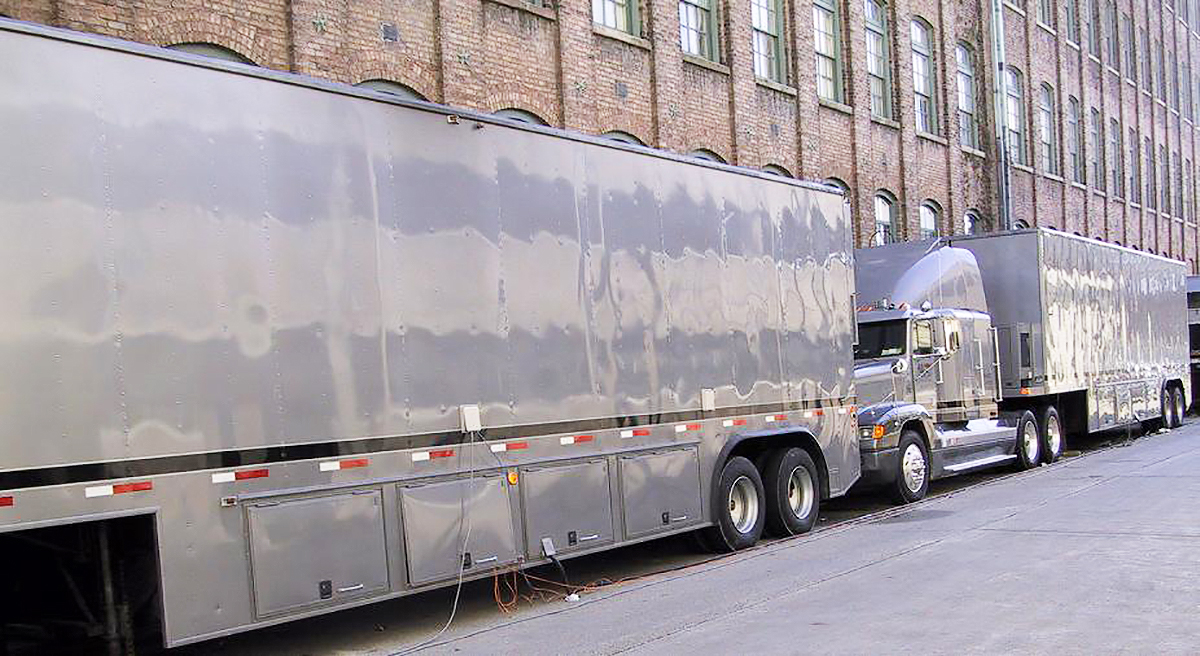

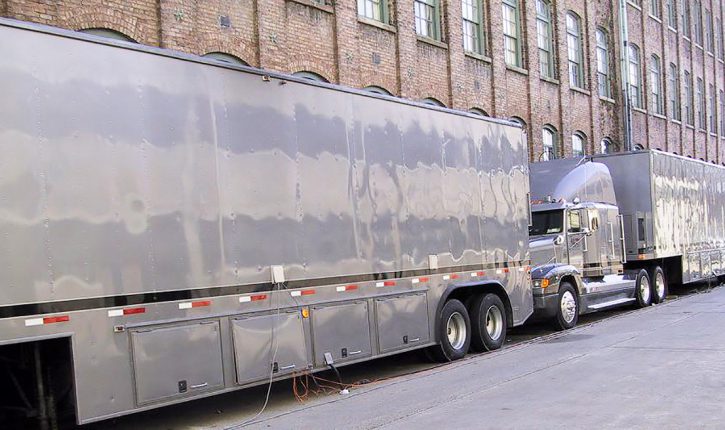

Meister & NLE are straight utility trucks each offering the following possible configurations.

Possible Configurations

  • Augment any A Unit with additional equipment and space
  • Screens switching & Graphics
  • EVS servers and audio sub mix
  • Communications
  • Editing
  • Custom Configurations

Contact us, and an AMV Account Executive will work with you based on your technical needs to offer the most comprehensive package available.

Specifications

  • Trailer Length: 50′ (includes AC units, +4′ if lift gate is open) Add apx. 20′ for tractor – travelling length apx. 70′
  • Exterior Width: 8′-6″ (+1′ if street-side rear door is fully open and tethered to side of trailer, +6′-1″ if curb-side stairs/landings deployed)
    Note: rear doors need a clearance of 4′-2.5″ on each side to open all the way and be tethered to side of trailer. However, they do not need to be fully open in order to use liftgate.
  • Exterior Height: 13′-5″
  • Exterior doors: 2′-10.75″W x 7′-5″H
  • Interior front room (nose): 12′-7.75″L x 8′-1.5″W x 8′-2″H (to lights, +2.5″ to ceiling)
  • Interior middle room: 14′-8″L x 8′-1.5″W x 8′-2″H (to lights, +2.5″ to ceiling)
  • Interior rear room (tail): 18′-0″L x 8′-1.5″W x 8′-2″H (to lights, +2.5″ to ceiling)
  • Interior door front to middle: 2′-4.5″W x 6′-8″H
  • Interior door middle to rear: 2′-11″W x 6′-8″H
  • Power Requirement: 100 amp, 3 Phase

Contact us, and an AMV Account Executive will work with you based on your technical needs to offer the most comprehensive package available.

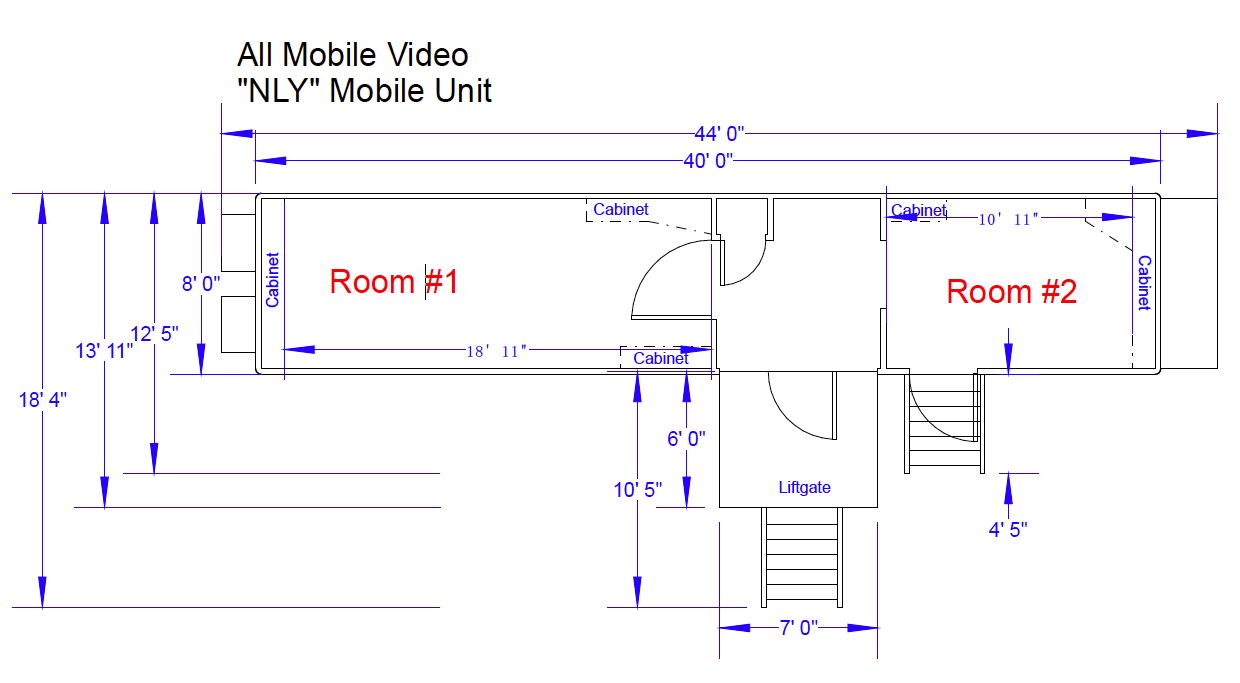

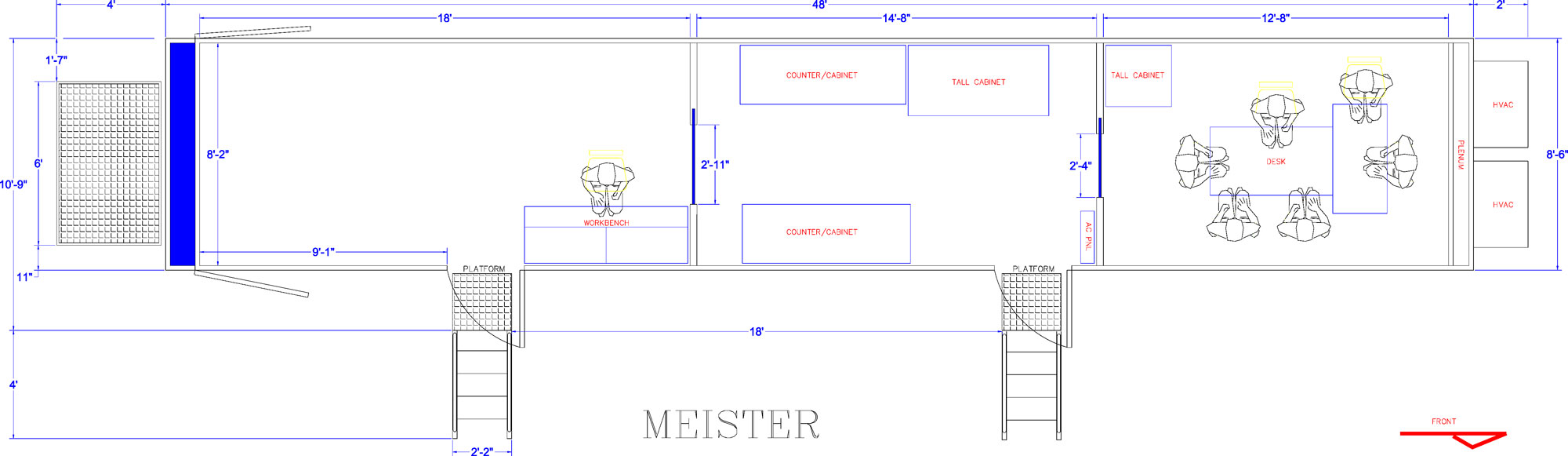

Floor Plan – View / Download PDF


Specifications

  • 44’5″ Length Trailer (61’ Long with Tractor Attached)
  • 8’4″ Body Width (plus 6’ for Stairs & Liftgate)
  • Power Requirement: 100 amp, 3 Phase

Contact us, and an AMV Account Executive will work with you based on your technical needs to offer the most comprehensive package available.

Floor Plan – View / Download PDF
