Features & Highlights:

  • Grass Valley K-Frame Switcher 5 ME W/8 Floating IDPMs, 6 keyers w/2D Re-sizers per ME
  • Studer Vista 9
  • GVG LDX 86N

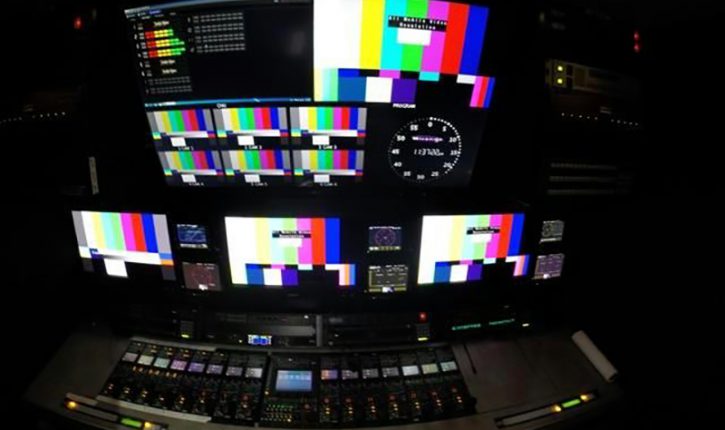

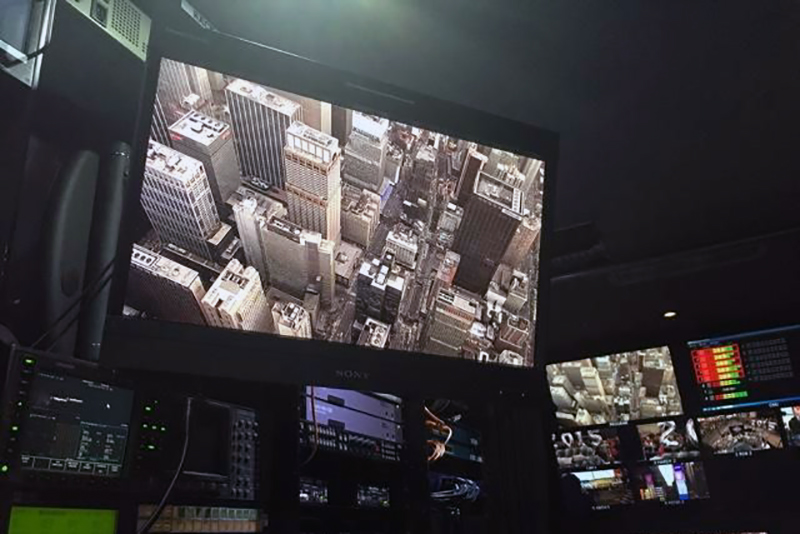

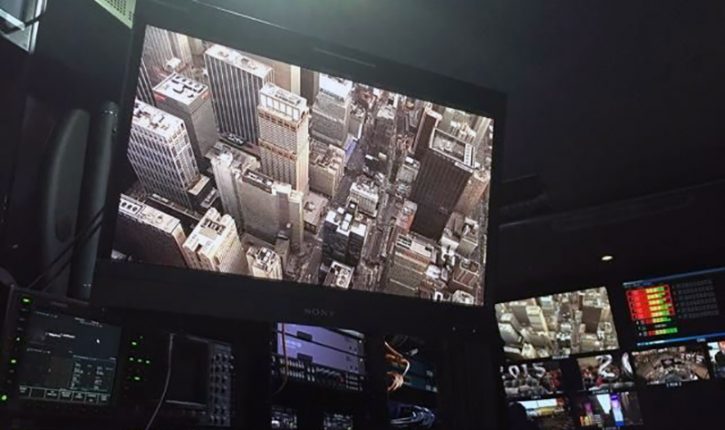

  • 4 25” OLED Monitors in Production Monitor Wall
  • Monitors in Rear Production Consoles-15 Monitors Per Console
  • OLED BVM Monitors in Video

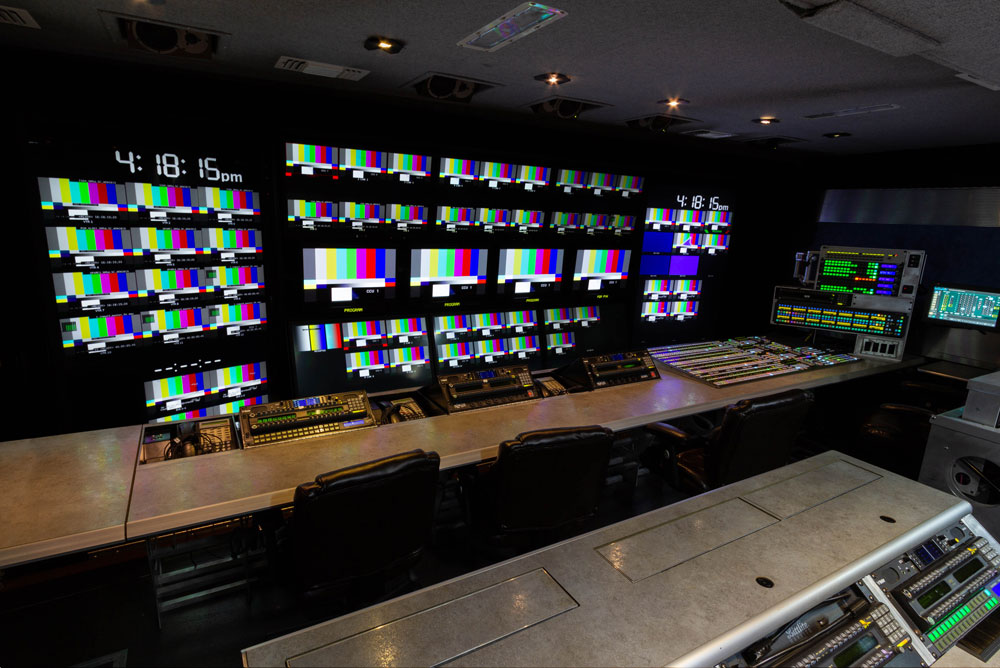

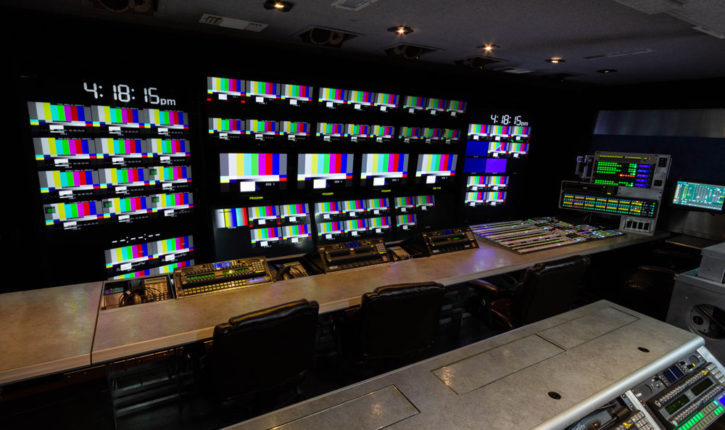

  • Production Room 96 Input Virtual Wall
  • Tape and EVS Room 96 Input Virtual Wall
  • 1080 23.98p to 1080 23.98psf Conversion (16)
  • 16 Single Mode ST Fiber In/Out to Router on Entrance
  • 32 Router Embed/16 De-Embed on Entrance Panel
  • Time Code Embedding/De-Embedding in Router
  • MADI In/Out on Router

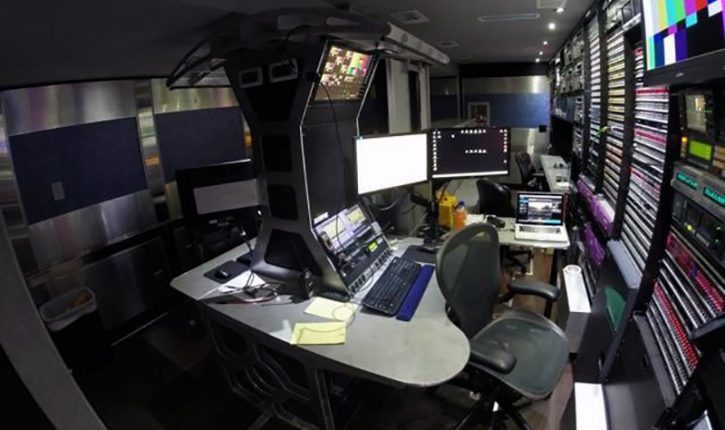

  • Comms EIC Postion

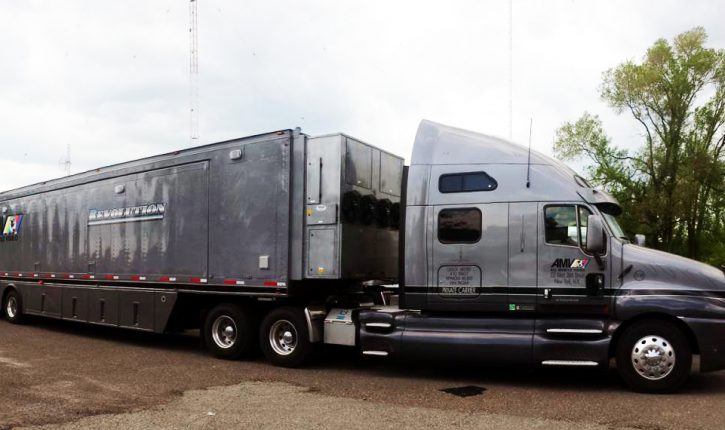

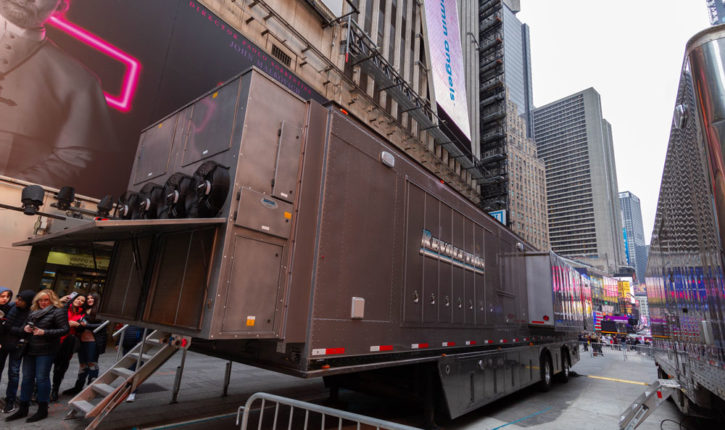

  • 56’ 4” Double-Expando

REVOLUTION Truck Specs – View/Download PDF


PRODUCTION:

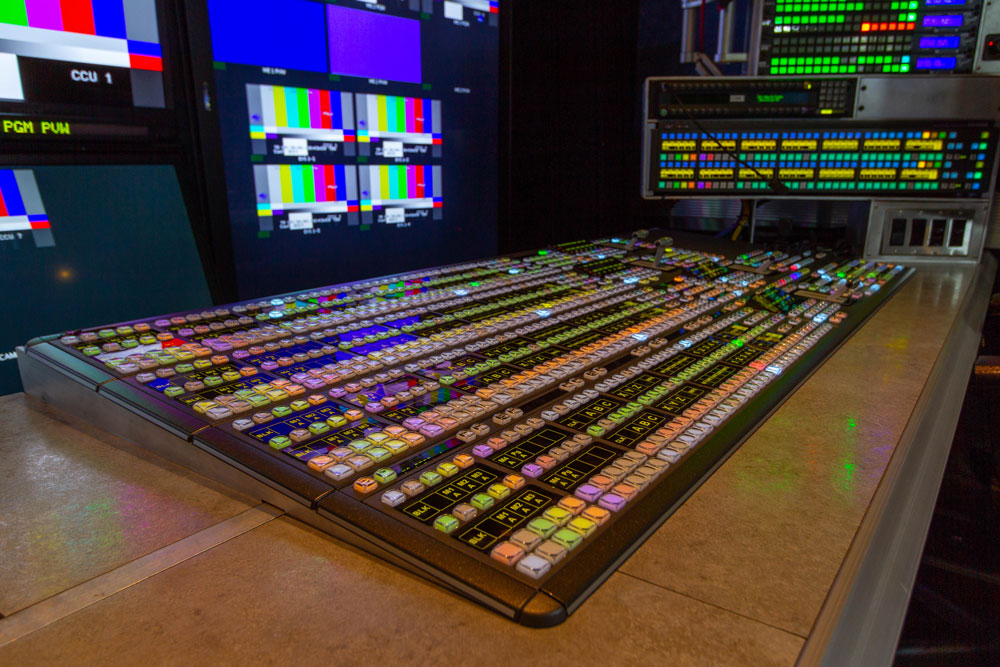

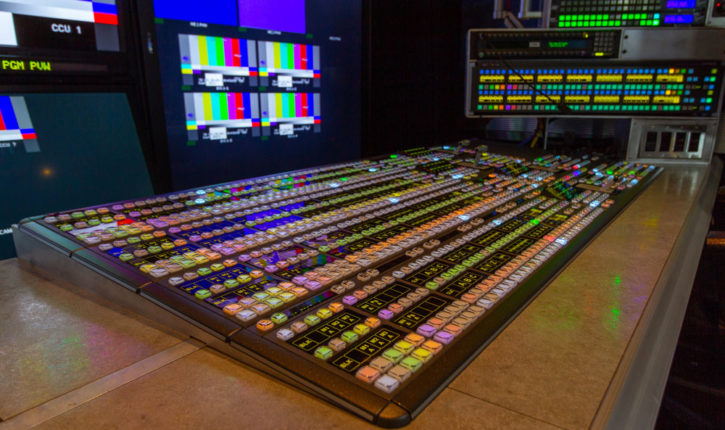

● Grass Valley K-Frame Switcher 5 ME W/ 8 Floating IDPMs, 6 keyers w/2D Re-sizers per ME
Kayenne 35 crosspoint, 4 ME control panel

AUDIO:

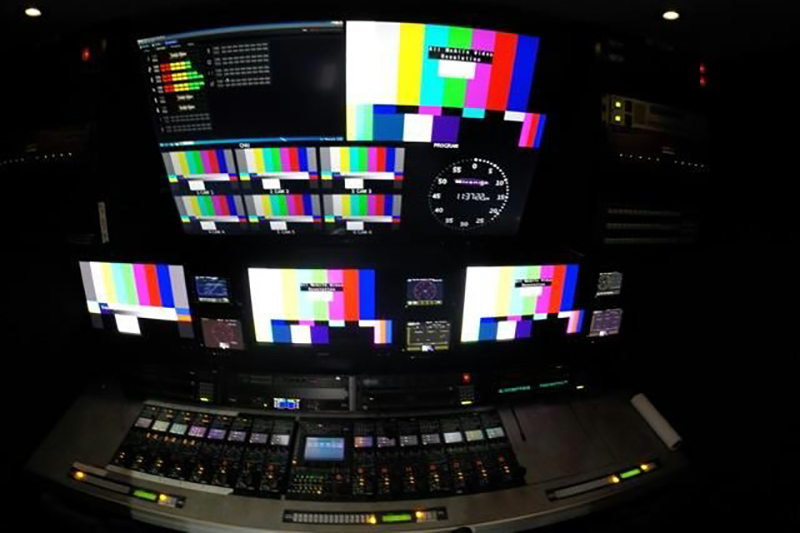

● Studer Vista 9 W/ 60 Faders on the Surface
● Studer Stage Box W/ SMPTE Fiber (Optional)

CAMERAS:
● 12 GVG LDX 86N (Wired for up to 16)
● Native HD/3G (lvl A & lvl B) 1920×1080 acquisition
● Introducing the new Grass Valley Creative Camera Grading system
● Frame rates 59.94p/i, 50p/i 29.97psf, 25psf, 24psf, 23.98psf

RECORD & PLAYBACK:
● Up to 4 8-Channel EVS
● Up to 16 Recording Devices

COMMUNICATIONS:
● RTS Adam 136 x 136
● 8 Tiff 4000 Telephone Interfaces

GRAPHICS:
● Wired for 2 CG Machines

POWER REQUIREMENTS:
● A-Unit:
200 AMP, 3 Phase, 208 Volts, 4 Wire
● B-Unit:
100 AMP, Single Phase, 208 Volts, 3 Wire (Only When Used for Production)

SPACE REQUIREMENTS:

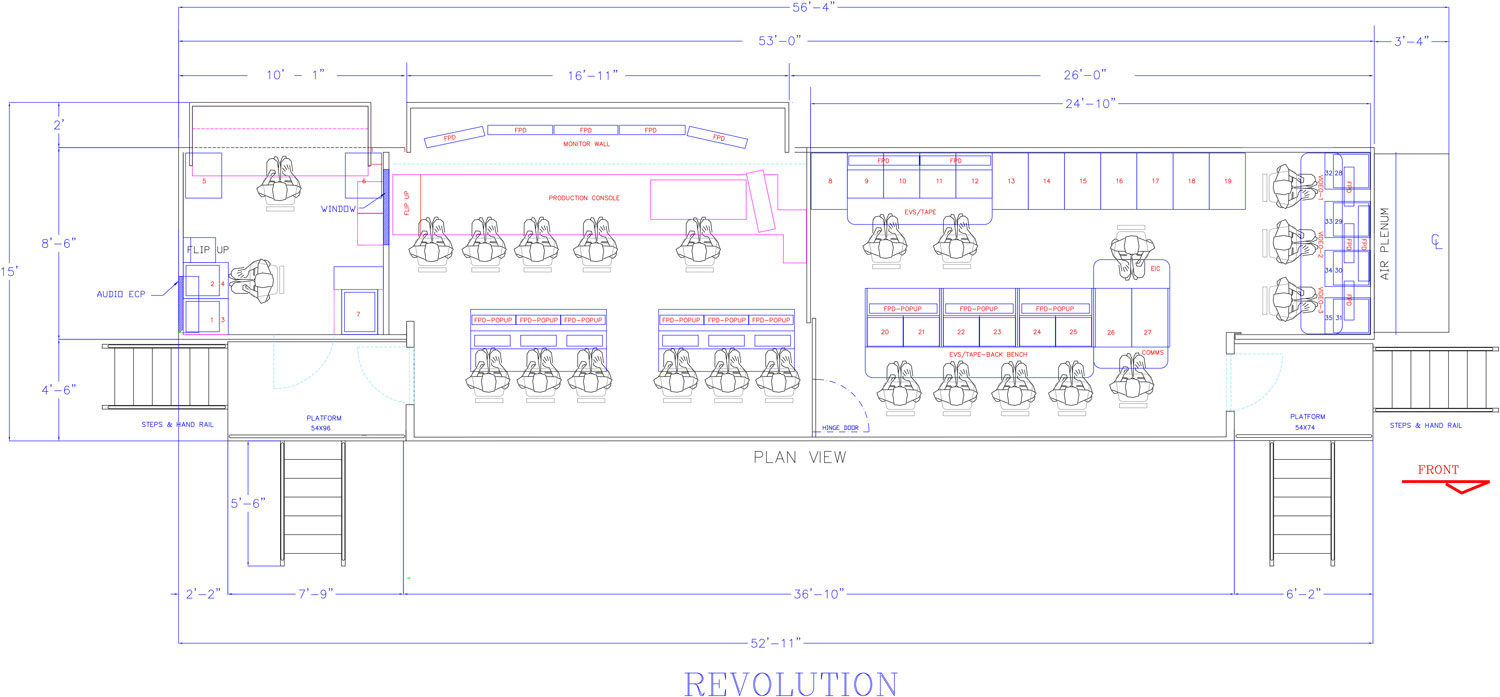

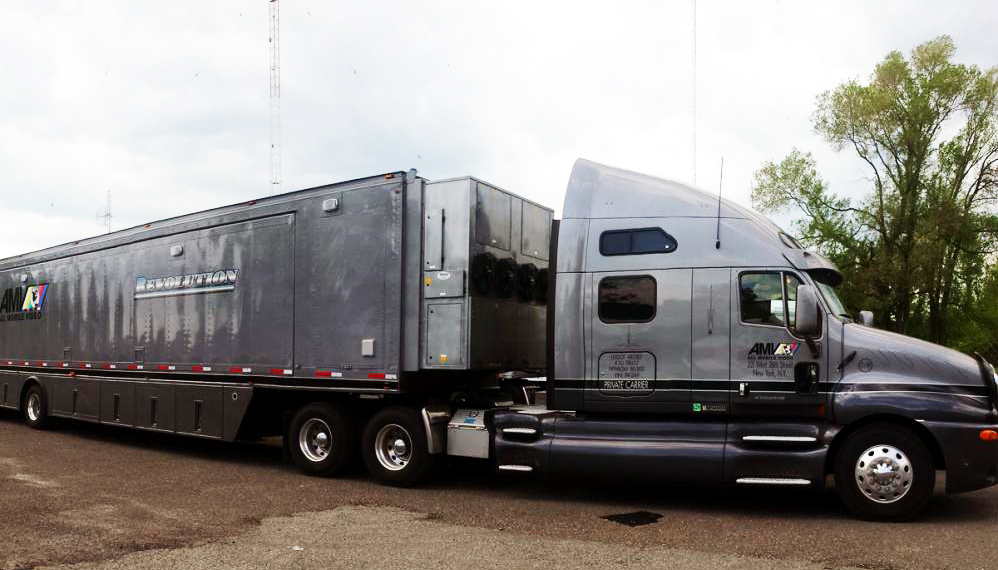

● A-Unit: (All Measurements Without Tractor)
56’ 4” Long x 13’6” High x 8’6” Wide– Closed (W/ the Longest Tractor Length is 76’4”)

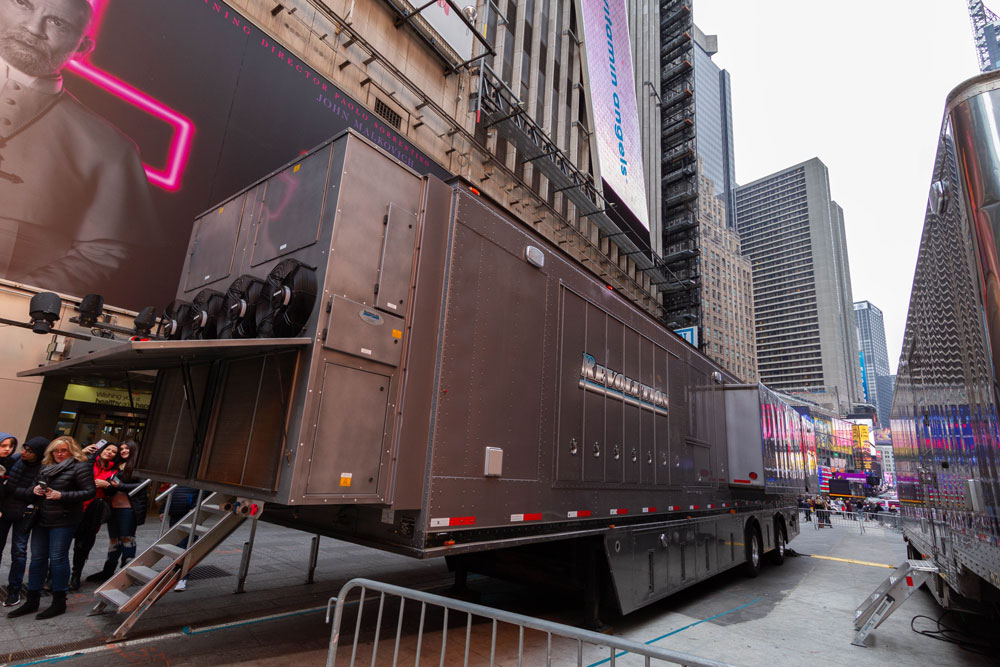

56’ 4”’Long x 13’6” High x 20’6” Wide– Expanded W/ AC Flaps Open & Stairs Perpendicular to Curb
● B-Unit: (All Measurements Without Tractor)
50’6” Long x 13’6” High x 8’6” Wide– Closed
58’6” Long x 13’6” High x 8’6” Wide– W/ Liftgate Down

Mobile unit equipment list subject to change without notice. Additional equipment available.
Please consult with your AMV Account Executive regarding availability and per-event specifications.

Revolution A Unit – View/Download PDF

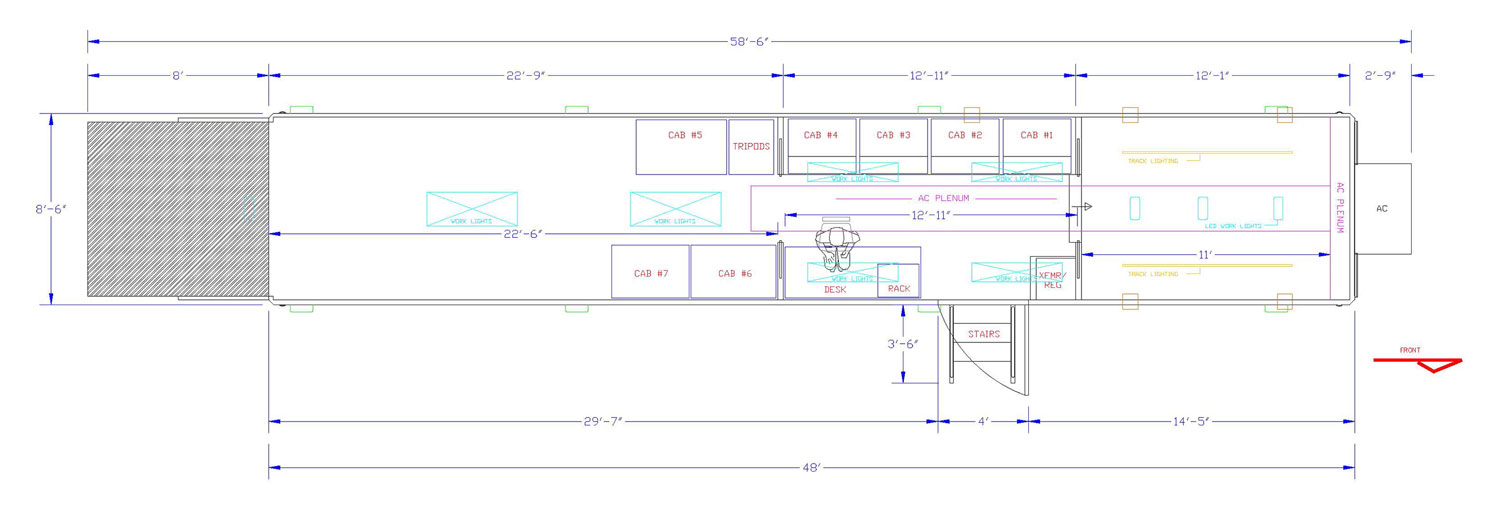

Revolution B Unit – View/Download PDF

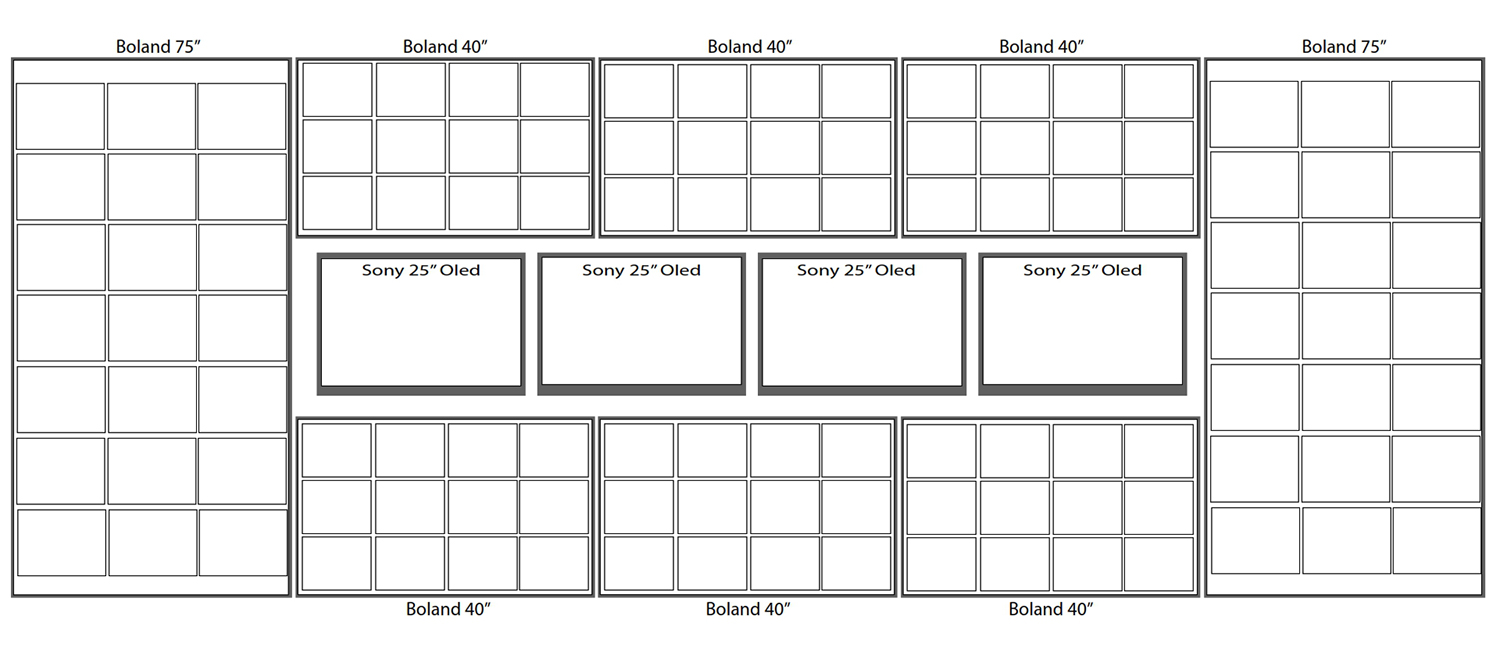

Revolution Monitor Wall – View/Download PDF
