Studio 57 is located on the West side of mid-town Manhattan. This historic facility houses a 5,000sq ft sound stage, endless support space, recently upgraded Technical Facilities, and 2 floors of newly renovated offices.

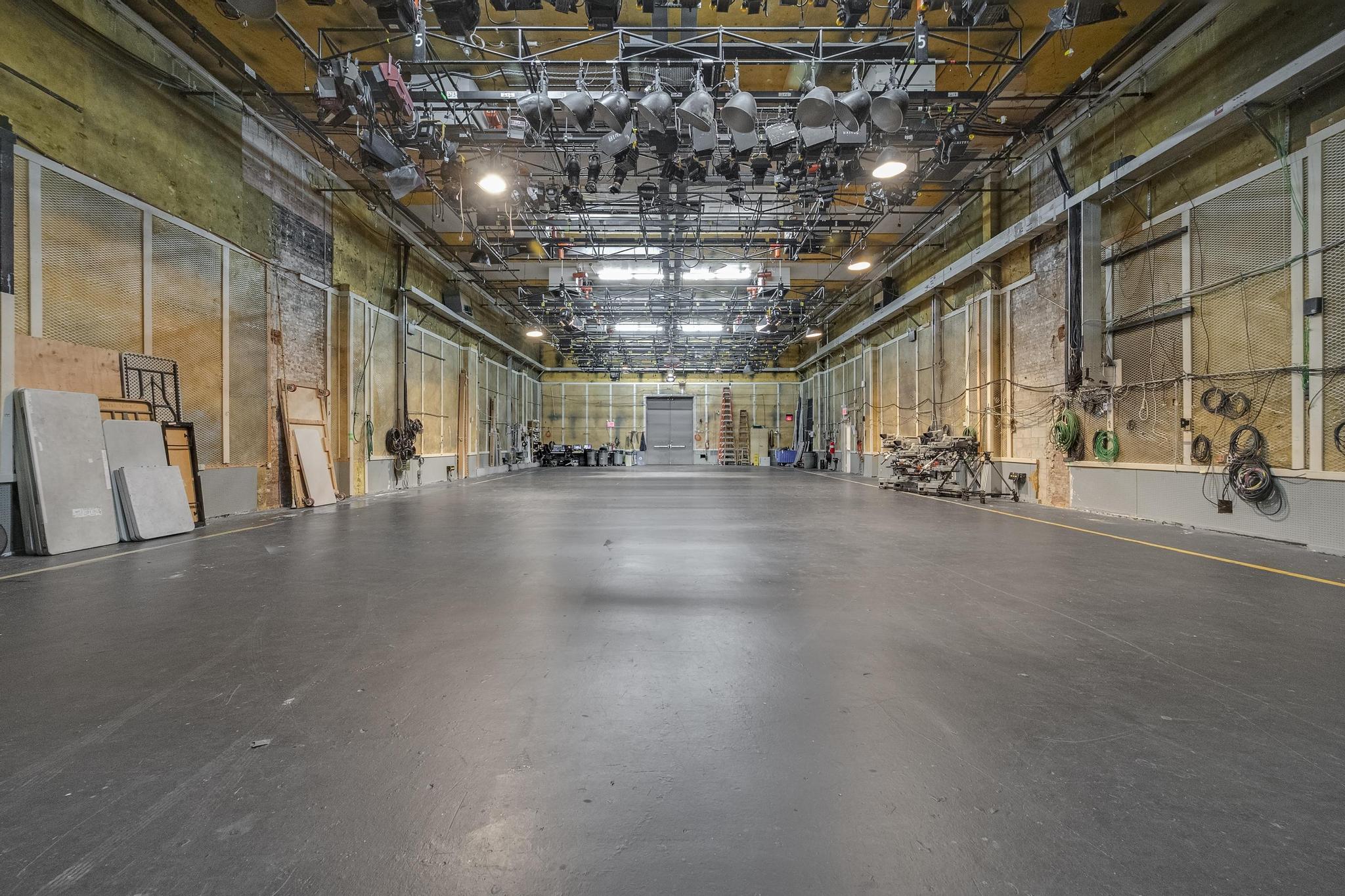

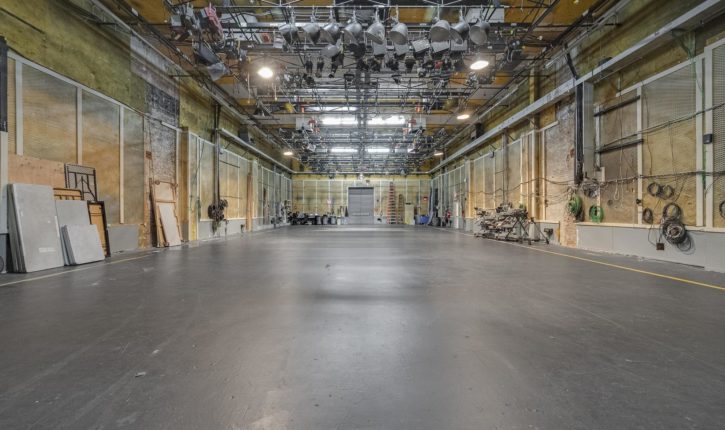

At 99’L x 47.5’W x 19’H to the Lighting Grid – Studio 57 offers a vast space suitable for any large-scale production.
Load-in access is ideal with a street level double-door loading dock giving you all the space you need to get your set, lights and any other elements you have directly onto the Studio floor.

Studio 57 is surrounded by ample support space that provides an efficient and comfortable environment for a Production of any size. Two Host Suites, seven Green Rooms and three Hair/Makeup stations are conveniently situated just a few steps from the main stage. Three large Production rooms, four offices, a Conference room and an Audience Holding area allow your team to spread out and still be in close proximity to the Studio and Technical area.

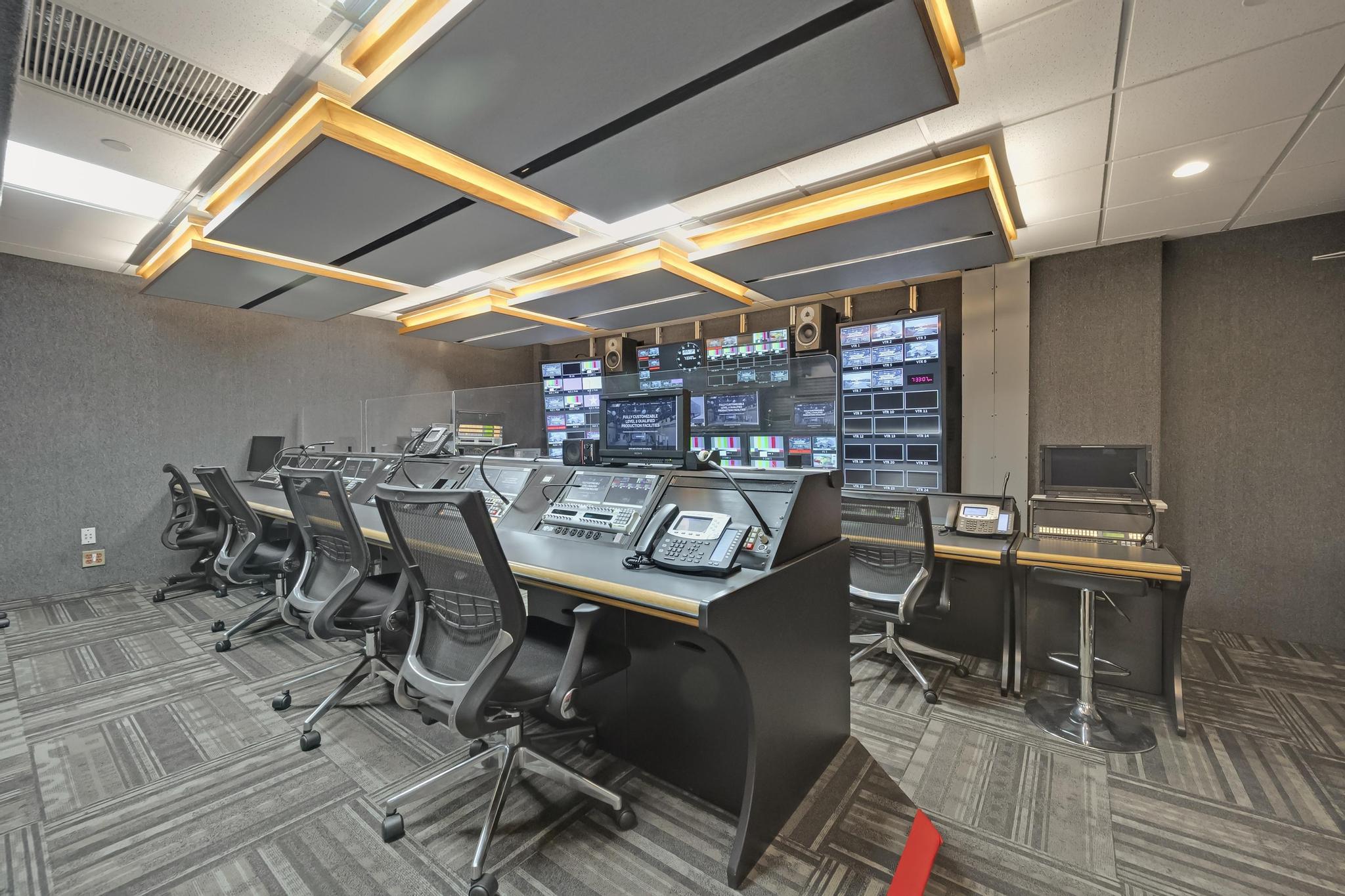

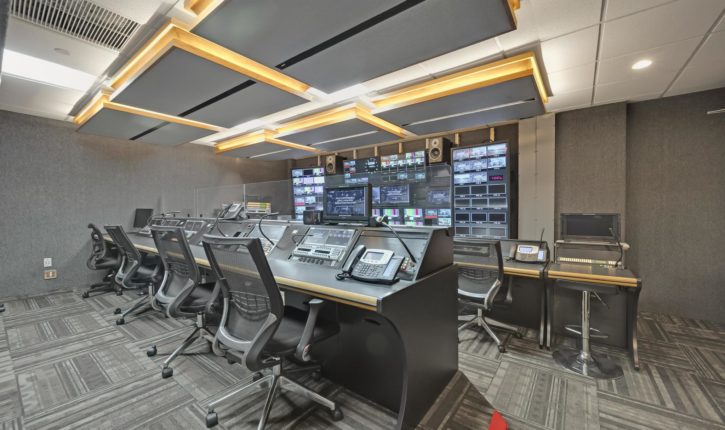

The newly upgraded Technical infrastructure boasts an HD control room with Sony MVS-8000G HD switcher, Miranda Kaleido X multiviewer monitor wall, a Calre Zeta Digital Audio Console with a large analog and AES and dual MADI I/O, Miranda Conversion gear, Sony OLED monitors and a Sony HD/AES Digital router. Your choice of tape, file based encoding and HD playback can be incorporated as required. HD Graphics using Avid Deko or Ross Xpression are available. We are well connected allowing for transmission of your live signal via fiber to wherever you need it, including the ability to hit our international uplink or streaming facilities.

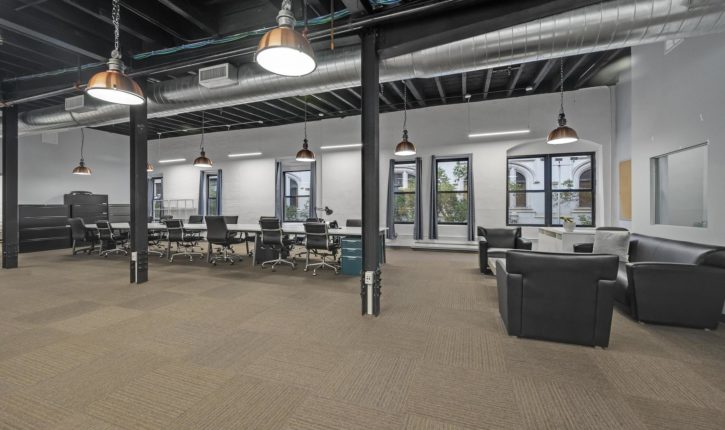

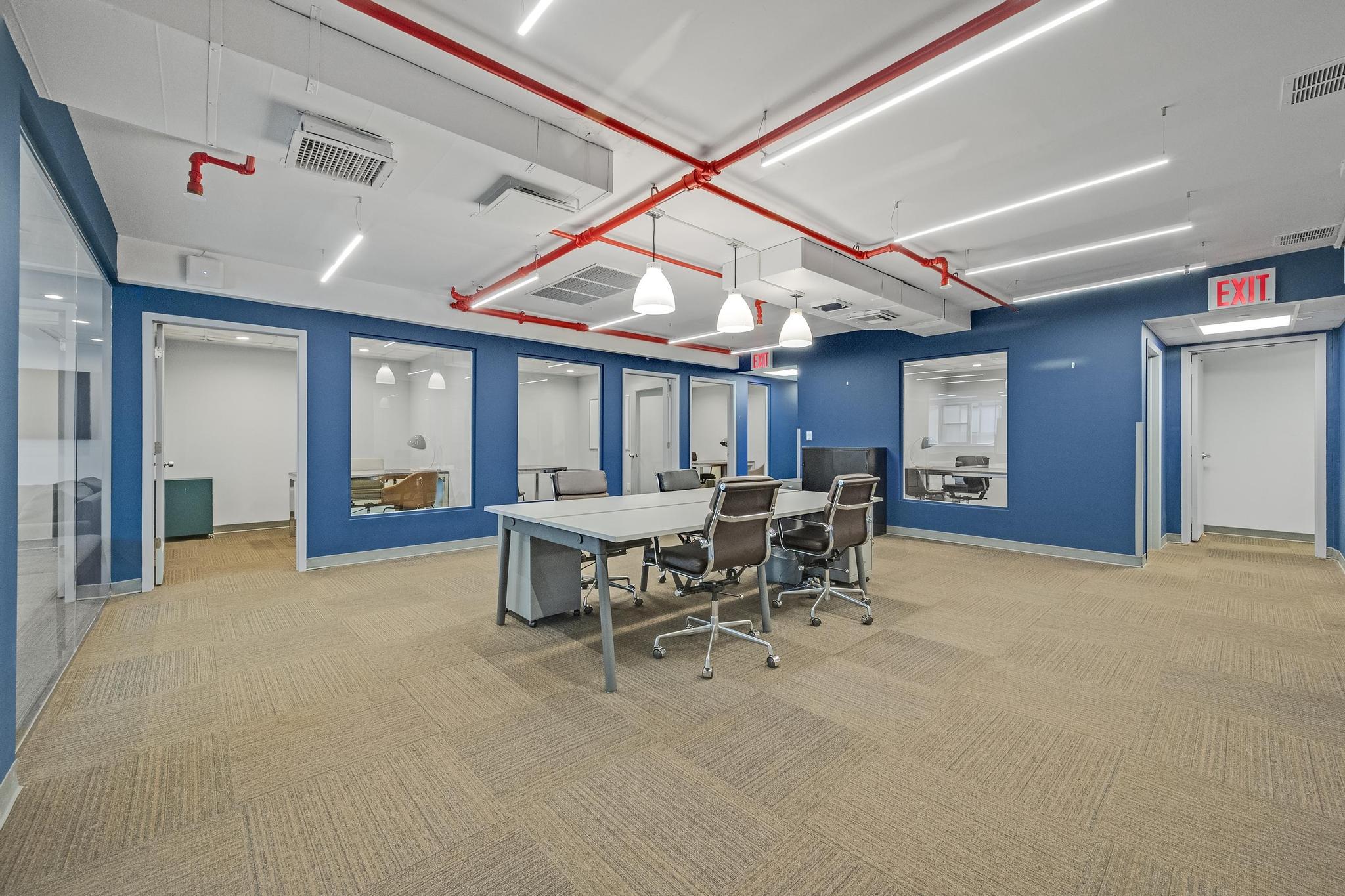

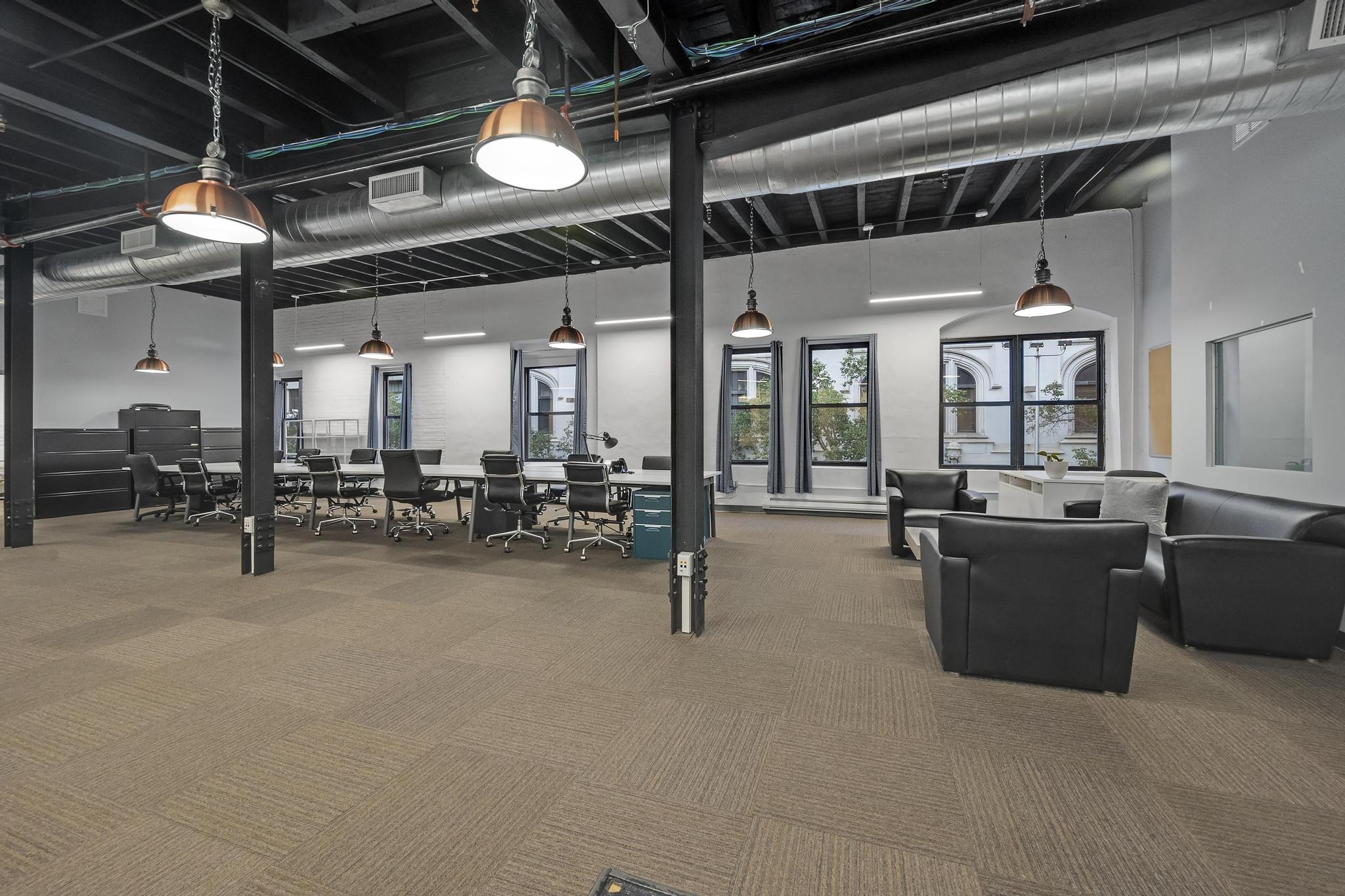

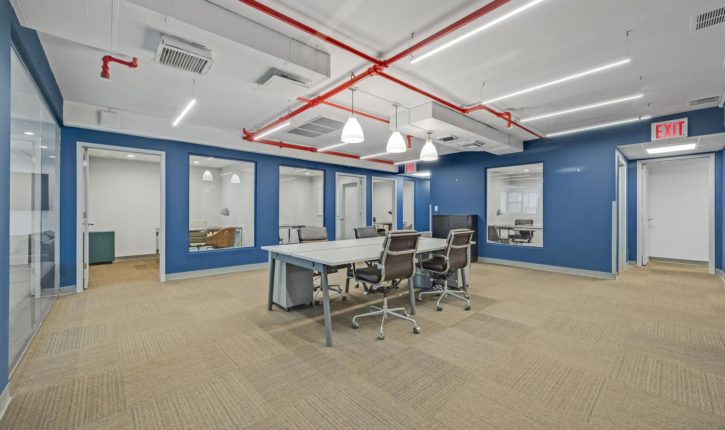

A complete renovation of the Mezzanine and 3rd Floor has resulted in twenty-three offices, two conference rooms, two large open bull-pens, two kitchens, and five private restrooms. Modern lighting and design make this expansive space perfect for a full Production Staff to call home.

View/Download PDF

CONTROL ROOM

· SONY MVS8000G HD/SDI NTSC/PAL 1080I OR 720P

  • (4) ME’S

· (1000) INTERNAL FRAME MEMORY FRAMES

· (4) CHANNELS OF INTERNAL DME

· MIRANDA TECHNOLOGIES KALEIDO-X MULTIVIEWER

· 96 IN – 8 OUT W/ INTEGRATED UMD’S AND TALLY

· MIRANDA TECHNOLOGIES FRAME SYNCS, DOWNCONVERTERS, EMBEDDING &
DE-EMBEDDING

· SONY 128X128 AUDIO/VIDEO ROUTER

· FOR-A COLOR CORRECTION AVAILABLE

Recording & PLAYBACK Capability

· 16+ CHANNELS OF ROUTABLE VIDEO EACH w/ 8 CHANNELS OF EMBEDDED AUDIO

· ALL TAPELESS, TAPE OR XDCAM DISK FORMATS AVAILABLE

· HD VIDEO PLAYBACK WITH AUDIO FROM TAPELESS OR TAPE FORMATS AVAILABLE

(HDCAM, XDCAM, EVS, ABEKAS MIRA, GVG, K2, CINEDECK)

Cameras

· (7) HDC-1000/1500 HD CAMERAS

· VINTEN FULMAR PEDESTALS AND PANHEADS

· SACHTLER STICKS AND PANHEADS

· 6’ – 21′ JIMMY JIB WITH HD MONITORING

· PANASONIC & SONY ROBOTIC CAMERAS AVAILABLE

Prompter

· AUTOSCRIPT PROMPTING SYSTEM

Audio & INTERCOM

· CALREC ZETA AES/ANALOG AUDIO CONSOLE WITH 2 MADI I/O

· SENNHEISER RF MICS – LAVS AND HAND HELDS AVAILABLE

· CUSTOM ANTENNA DISTRIBUTION SYSTEM SERVICING ENTIRE BUILDING

· YAMAHA M7CL PA CONSOLE

· EV & MEYER SPEAKERS

· AT5100 AUDIENCE MICS

· 96 PORT ADAM SYSTEM WITH 8 TIFS

  • (3) BTR 800 2 CHANNEL RF PL SYSTEMS

Transmission & telephone interface

· HD & ASI INBOUND FIBER CONNECTIVITY

· HD OUTBOUND FIBER

· UPLINK TRUCK TIE IN AVAILABLE

· TELOS AND GETNER TELEPHONE HYBRIDS

HOUSE RF SYSTEM

· 50+ CHANNELS OF DIRECT-TV + HD OFF AIR

· 2 IN-HOUSE STUDIO RF CHANNELS

View/Download PDF

STUDIO HEIGHT 19’3” TO MOVABLE GRID

STUDIO HEIGHT 21’ TO STATIONARY GRID

STUDIO FLOOR SERVICE – 100/3 CAM LOCKS

DIMMING SYSTEM

ETC ION LIGHTING V 2.2

(368) CHANNELS

(214) DIMMERS 20A

(26) DIMMERS 60A

LIGHTING EQUIPMENT

(14) STRAND 1K LIGHT CYC UNITS

(3) ALTMAN 300W FRESNELS UNITS

(37) STRAND 1K FRESNELS

(16) STRAND 2K FRESNELS

(5) STRAND 5K FRESNELS

(7) MOLE-RICHARDSON 1K

(2) MOLE-RICHARDSON 2K

(2) MOLE-RICHARDSON 1K SOFT

(6) MOLE-RICHARDSON 2K SOFT

(1) MOLE-RICHARDSON 2K BABY SOFT

(14) DESISTI 1K FRESNELS

(21) DESISTI 2K FRESNELS

(30) SCOOPS 18”

(6) SCOOPS 14”

(9) KINO FLOS IMAGE 80

(16) PAR CANS 64

GRIP EQUIPMENT

(18)FULL APPLE BOXES

(26) HALF APPLE BOXES

(7) PANCAKES

(40) SAND BAGS

(40) ASSORTED CLAMPS

(10) CHEESEBOROS FIXED

(9) CHEESEBOROS SWIVEL

(1) 3’ KELLEM STIRRUPS

(8) 6’ KELLEM STIRRUPS

(20) 7’ KELLEM STIRRUPS

(3) 8’ KELLEM STIRRUPS

(4) 9’ KELLEM STIRRUPS

(1) 10’ KELLEM STIRRUPS

(4) 5-9’ MATTHEWS STIRRUPS

(22) 3-6’ MATTHEWS STIRRUPS

(2) 4’ MATTHEWS STIRRUPS

(18) 3-7’ MOLE STIRRUPS

(1) 6-10’ MOLE STIRRUPS

(5) MOLE STANDS 2K

(4) MOLE STANDS 750

(3) MATTHEWS STANDS 750

(10) C-STANDS

(10) GOBO ARMS

(10) GOBO HEADS

MISCELLANEOUS

(1) 16’ A FRAME

(1) 14’ A FRAME

(4) 12’ A FRAME

(7) 10’ A FRAME

(5) 8” A FRAME

(2) 6” A FRAME

(1) 4” A FRAME

(2) GENIE LIFT MODEL
