Features & Highlights:

  • Sony MVS 7000X Switcher W/5 ME & 4 Internal DME Channels & Re-Sizers on all Banks
  • Studer Vista 8
  • Sony HDC 1000R/1500Rs

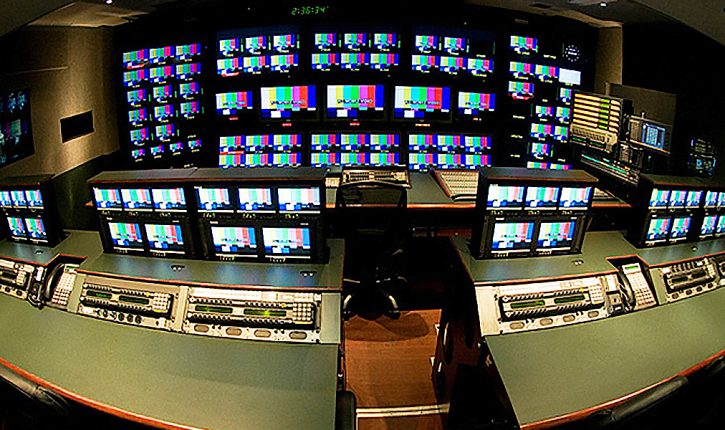

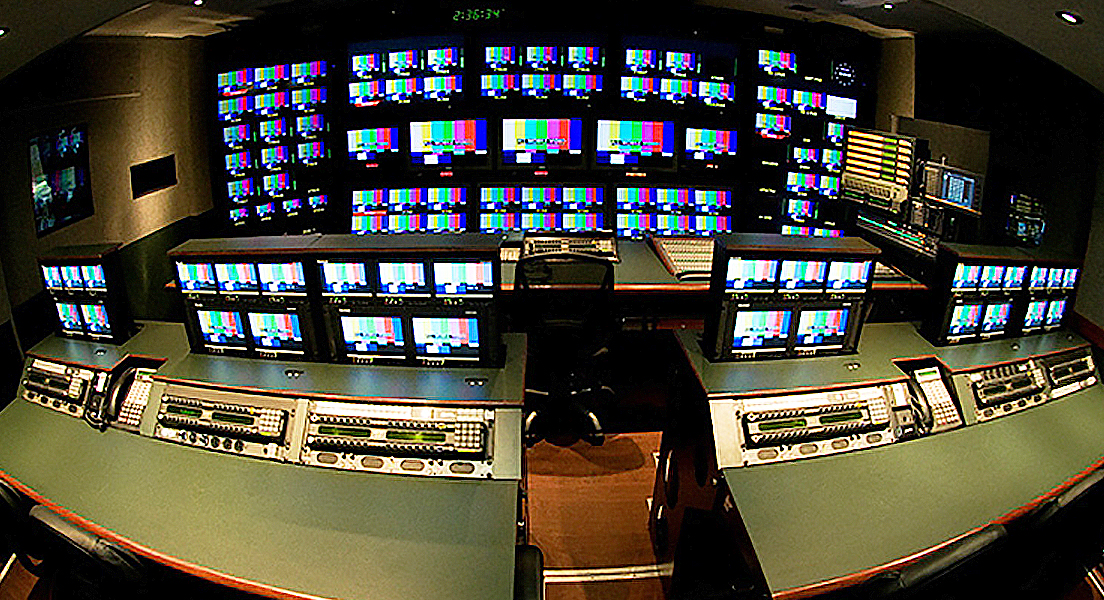

  • 3 – 24” TV Logic Monitors in Production Monitor Wall
  • Monitors in Rear Production Consoles-15 Monitors Per Console
  • Time Code Embedding/De-Embedding in Router
  • MADI In/Out on Router
  • 12 Up/Down/Cross Converters; 58’ Triple Expando

Crossroads Truck Specs – View/Download PDF


PRODUCTION:

  • Sony MVS 7000X Switcher W/5 ME & 4 Internal DME Channels & Re-Sizers on all Banks

AUDIO:

  • Studer Vista 8 W/ 60 Faders
  • Studer Stage Box W/ SMPTE Fiber (Optional)

CAMERAS:

  • Sony HDC 1000R/1500Rs (Wired for up to 16)

RECORD & PLAYBACK:

  • Up to 3 8-Channel EVS
  • Up to 16 Recording Devices

COMMUNICATIONS:

  • RTS Adam 136 x 136
  • 8 Tiff 4000 Telephone Interfaces

GRAPHICS:

  • Wired for 1 CG Machine

POWER REQUIREMENTS:

  • A-Unit:
    • 200 AMP, 3 Phase, 208 Volts
  • B-Unit:
    • 100 AMP, Single Phase, 220 Volts (Only When Used for Production)

SPACE REQUIREMENTS:

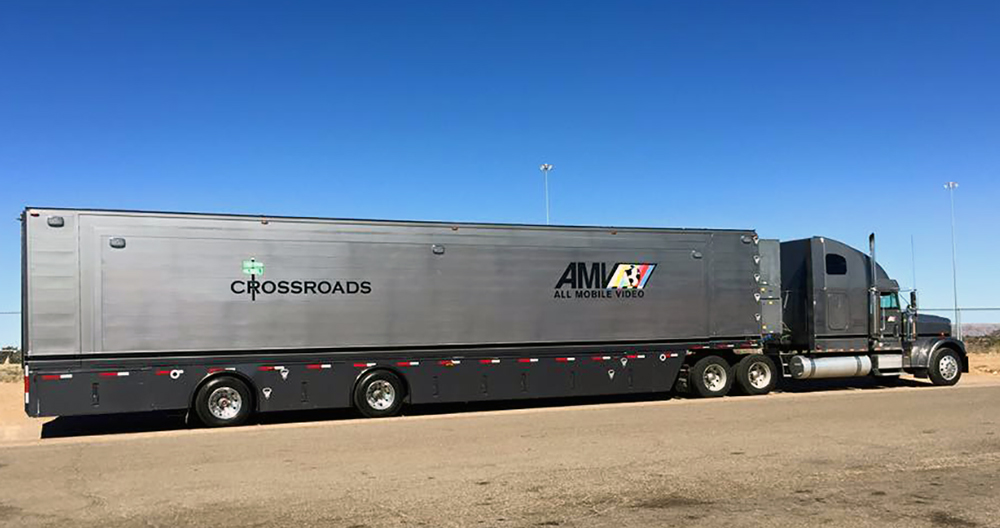

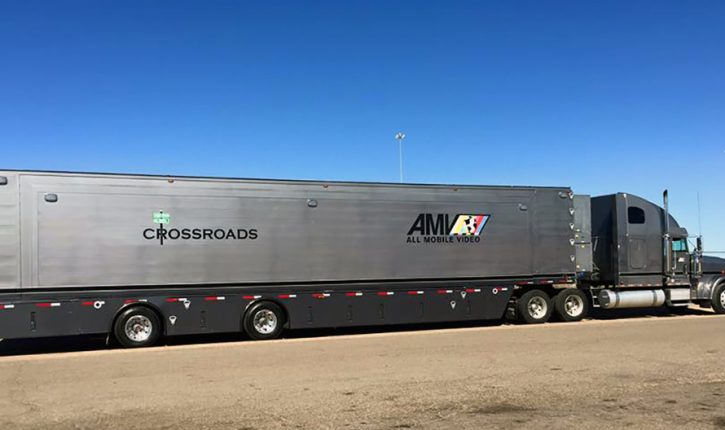

  • A-Unit: (All Measurements Without Tractor)
    • 55’3” Long x 13’6” High x 8’6” Wide– Closed (W/ the Longest Tractor Length is 76’)
    • 58’1” Long x 13’6” High x 17’3” Wide– Expanded W/ AC Flaps Open & Stairs Perpendicular to Curb
  • B-Unit: (All Measurements Without Tractor)
    • 50’6” Long x 13’6” High x 8’6” Wide– Closed
    • 58’6” Long x 13’6” High x 8’6” Wide– W/ Liftgate Down



Mobile unit equipment list subject to change without notice. Additional equipment available.

Please consult with your AMV Account Executive regarding availability and per-event specifications.

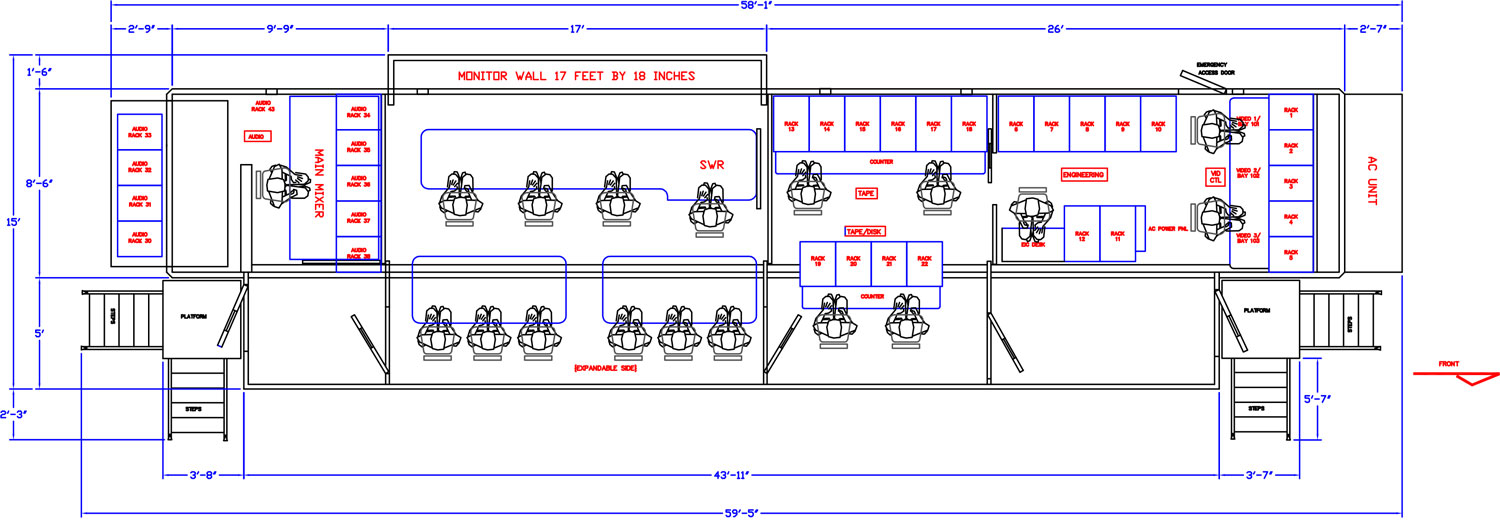

CROSSROADS A-Unit – View/Download PDF

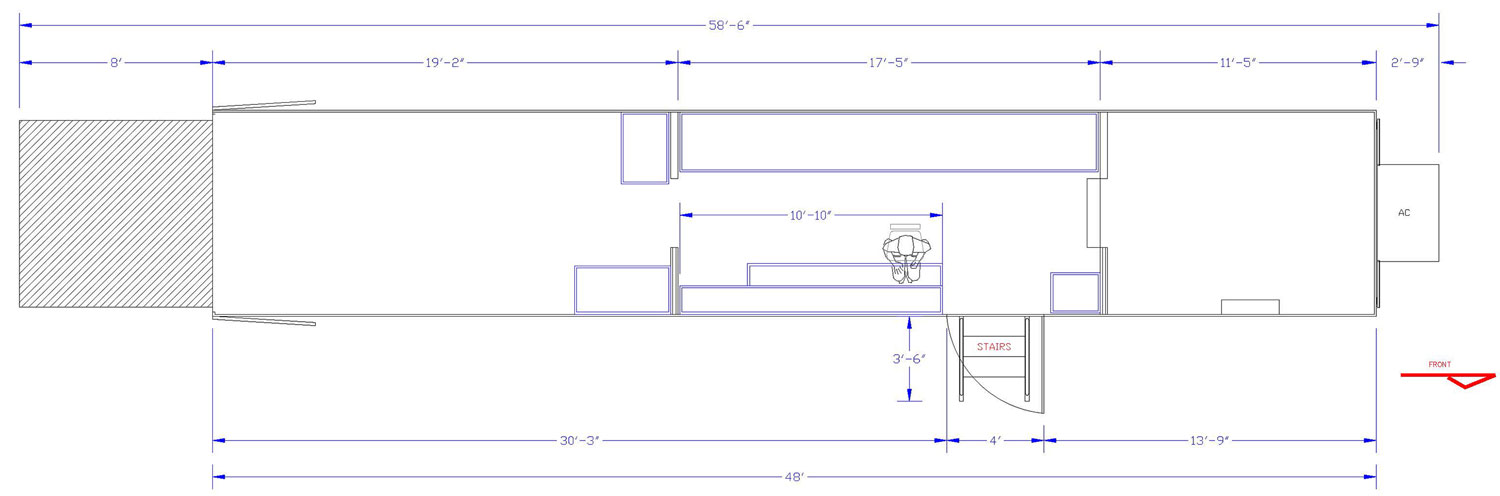

CROSSROADS B-Unit – View/Download PDF

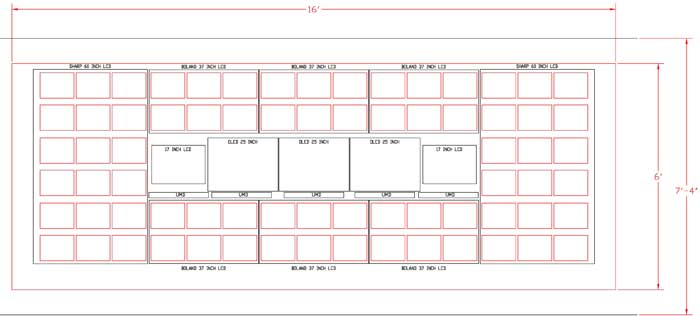

CROSSROADS Monitor Wall – View/Download PDF
