• Sony MVS-8000X Switcher: 3D/4K Capable
  • 5 ME W/ Aux Busses That Can Dissolve (Up to 12)
  • Studer Vista 8
  • Sony HDC-2000/2500s Cameras
  • Time Code Embedding/De-Embedding in the Pesa Router, 1080p 23.98 to 1080psf 23.98 Conversion, Fiber In/Out of Pesa Router Single Mode ST on Entrance Panel
  • MADI In/Out on Router
  • 32 Fiber Router Outs
  • 25” OLED in Shading Position
  • Dedicated Comms Tech Position
  • Fx Audio/Producers Production Console in Audio Room
  • 56’ Double Expando

Epic Truck Specs – View/Download PDF


PRODUCTION:

  • Sony MVS-8000X Switcher 5 ME W/ 4 DME Channels (4 Internal) & Re-Sizers on all Banks

AUDIO:

  • Studer Vista 8 W/ 60 Faders on the Surface
  • 64×64 I/O Dante capability
  • Studer Stage Box W/ SMPTE Fiber (Optional)

CAMERAS:

  • Sony HDC 2000/2500s (Wired for up to 16)

COMMUNICATIONS:

  • RTS Adam 136 x 136
  • 8 Tiff 4000 Telephone Interfaces

RECORD & PLAYBACK:

  • Up to 4 8-Channel EVS
  • Up to 18 Recording Devices

GRAPHICS:

  • Wired for 2 CG Machines

POWER REQUIREMENTS:

  • A-Unit:
    • 200 AMP, 3 Phase, 208 Volts, 4 Wire
  • B-unit:
    • 100 AMP, 3 Phase, 208 Volts, 4 Wire (Only When Used for Production)

SPACE REQUIREMENTS:

  • A-Unit: (All Measurements Without Tractor)
    • 56’3” Long x 13’6” High x 8’6” Wide– Closed (W/ the Longest Tractor Length is 76’)
    • 58’7” Long x 13’6” High x 21’6” Wide– Expanded W/ AC Flaps Open & Stairs Perpendicular to Curb
  • B-Unit: (All Measurements Without Tractor)
    • 55’6” Long x 13’6” High x 8’6” Wide– Closed
    • 63’6” Long x 13’6” High x 8’6” Wide– W/ Liftgate Down

Mobile unit equipment list subject to change without notice. Additional equipment available.

Please consult with your AMV Account Executive regarding availability and per-event specifications.

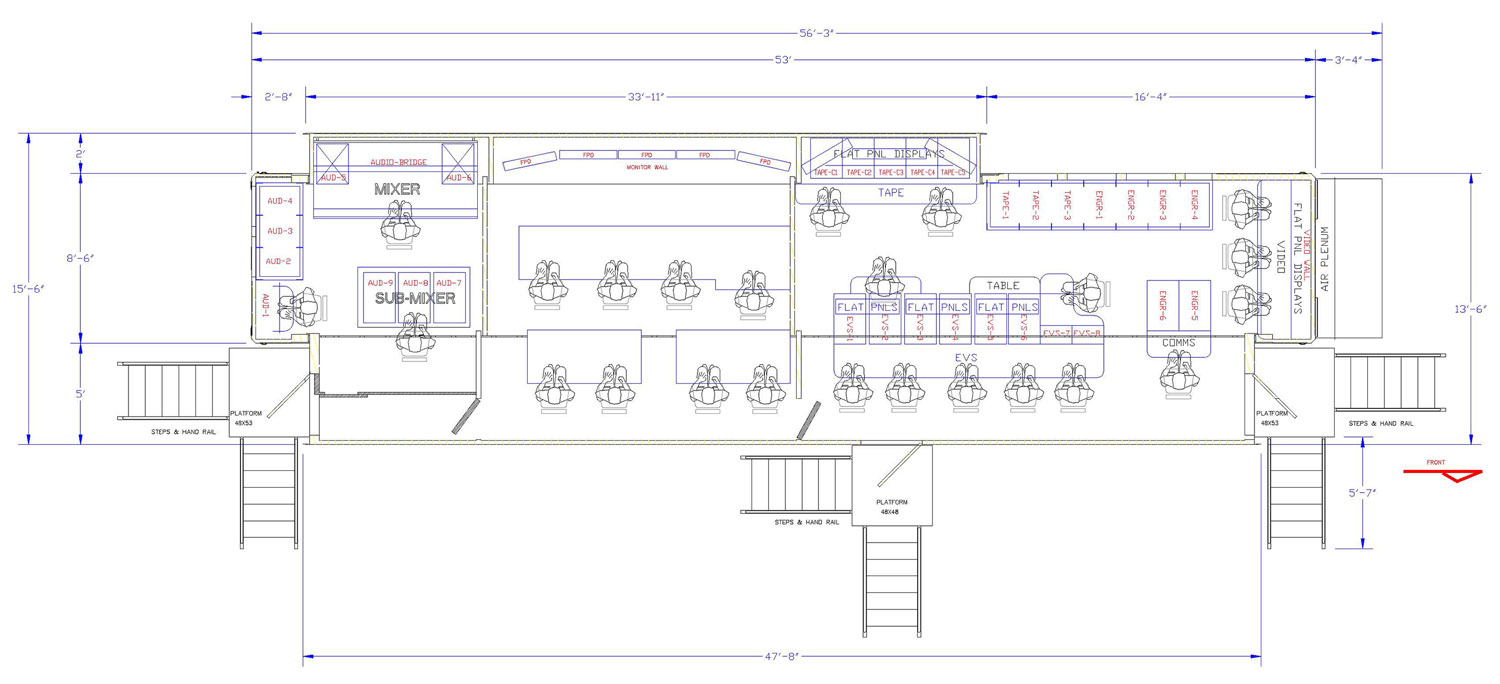

EPIC A Unit – View/Download PDF

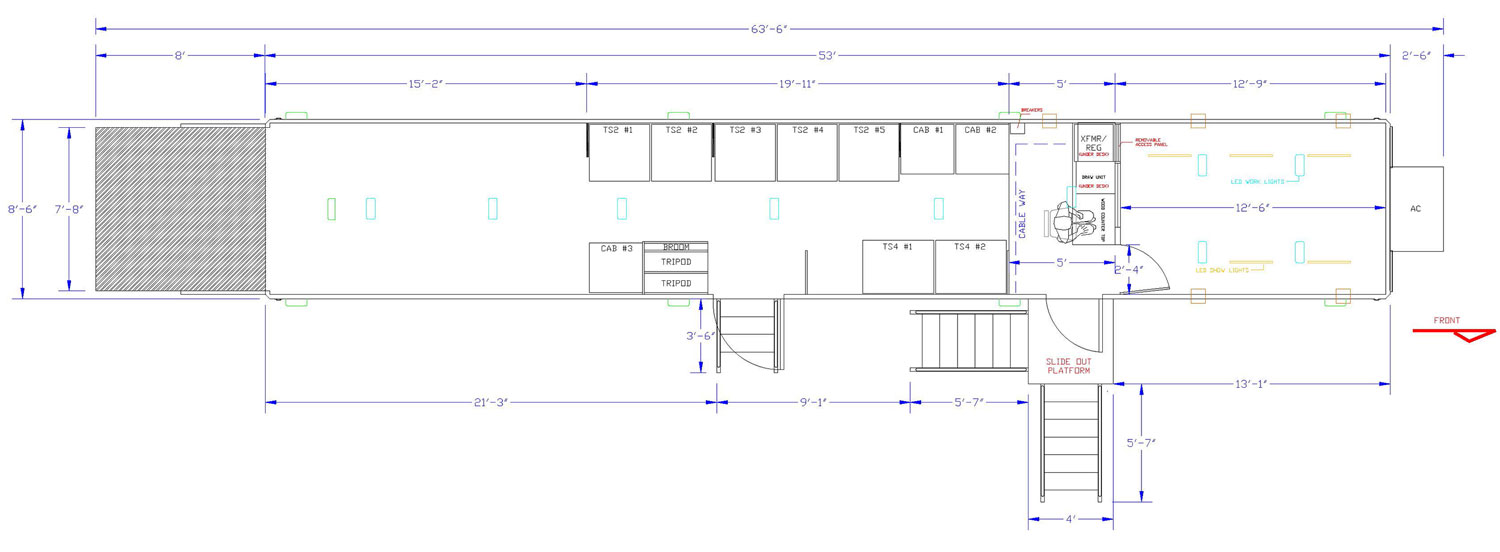

EPIC B Unit – View/Download PDF

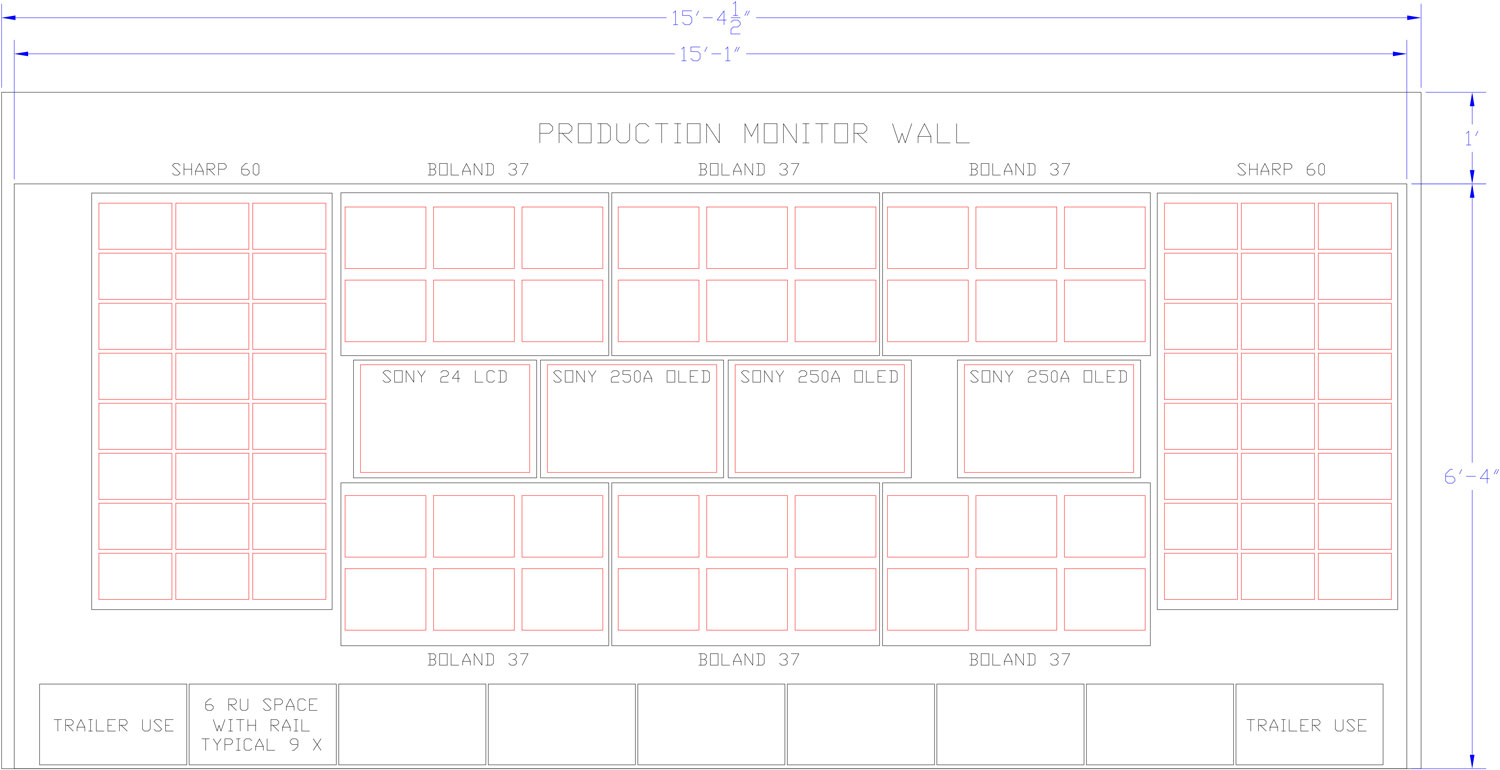

EPIC Monitor Wall – View/Download PDF
