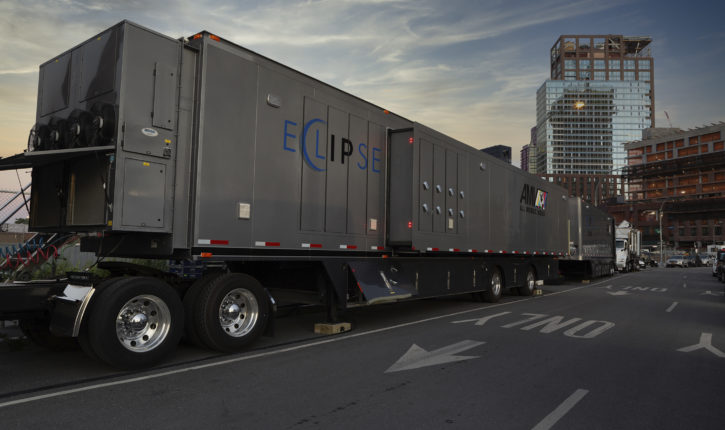

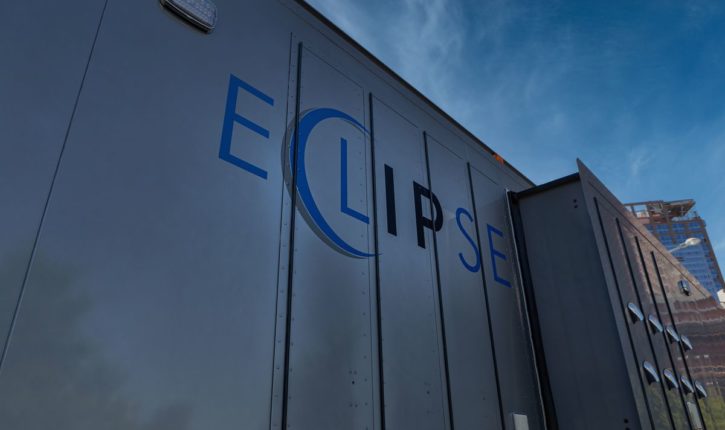

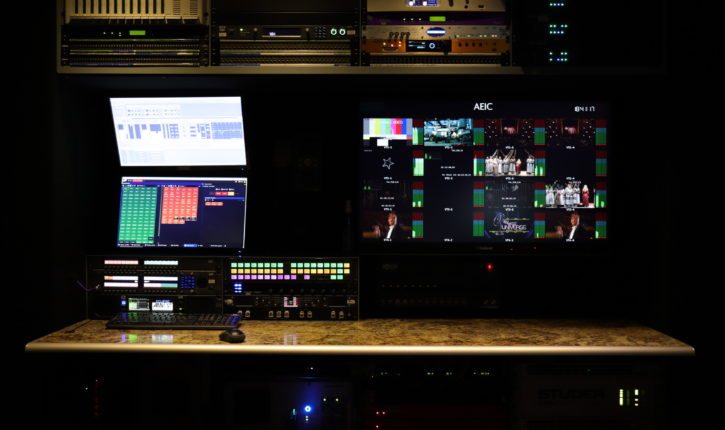

Triple Expando Mobile Production Unit / IP / UHD HD / HDR WCG

Contact

Features & Highlights:

  • AMV’s Large and Powerful HDR and 4K IP Production Truck
  • GVG XP/IP SWITCHER (UHD/3G/HD Capable) 6 ME
  • 16 LDX 150 IP Native Cameras
  • Wired for 80 Video Recording Channels and 4 EVS Chassis
  • 4- 31” BVM-HX310 HDR/4K Monitors in Production

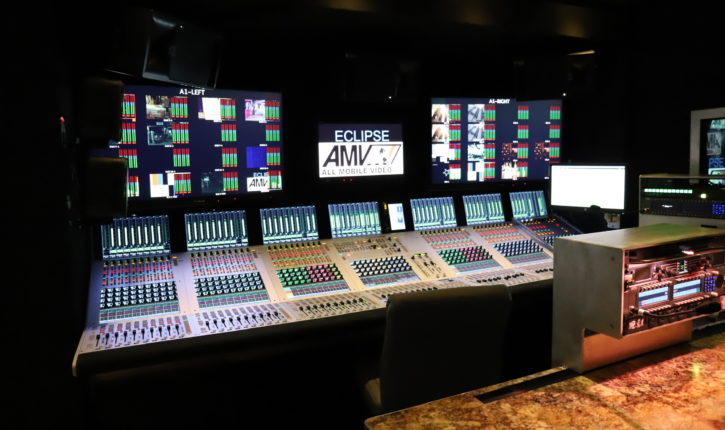

  • Studer Vista X; (Audio Back Bench in Audio Room)
  • 32 IN and 32 OUT Single Mode ST Fiber to I/O
  • 56- XiP Up/Down/Cross Converters

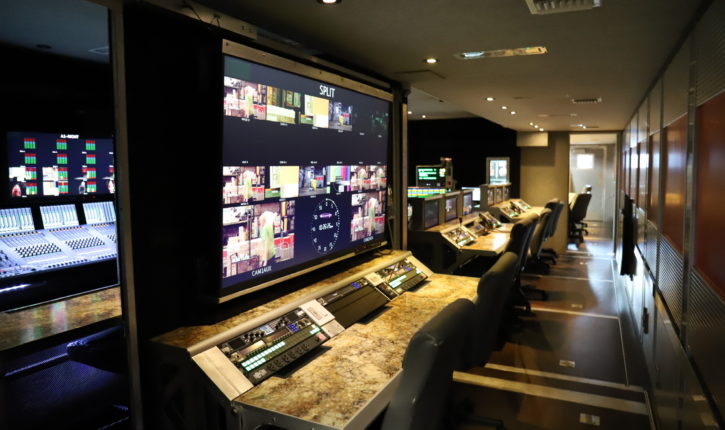

  • Split Position in Control Room Allowing 2 Extra Seats W/ Intercom and Multiviewer
  • Divider Available If Needed to Separate From Control Room
  • Truck Offers 6-I/O Stage Boxes in Different Configurations Which Carry Cameras, Video, Madi, Dante, Gpi, 422, Phones, Truck Networks Available in the Field

Eclipse Truck Specs – View/Download PDF


PRODUCTION:

  • Grass Valley 6 M/E K Frame XP/IP (UHD/3G/HD Capable) Switcher 6 ME W/ 6 Keyers per M/E
  • 4-BVM-HX310 TFT LCD HDR/4K Monitors
  • Monitor Wall Includes 6-49” and 2-75” Monitors Displaying Grass Valley Multiviewer
  • 3-Sony BVM-HX310 TFT LCD in Video Position
  • 1-Sony BVM-HX310 TFT LCD in LD Position

AUDIO:

  • Studer Vista X 600, Fully Redundant, W/ 72 Faders on the Surface and 2 x Lexicon PCM96 “Plug-In” Efx
  •  4- 48X16 Studer Stage Boxes Connected via SMPTE or TAC Fiber
  • 64 Channels of DANTE I/O x 2, Multiple MADI Streams, Analogue, and AES I/O
  • Telos Phone Interfaces
  • 4 Engine TC Electronics System 6000
  • 8 Channels Cedar Noise Suppression
  • Extensive MADI Routing and Access
  • Extensive DANTE Routing and Access
  • 5.1 Audio Monitoring/ ‘JBL 7’ Speakers
  • All Positions – Multi-Channel Routable Audio Monitors

CAMERAS:

  • 16 Grass Valley LDX 150 IP Native Cameras (Wired for up to 18) W/ Creative Grading

ROUTER:

  • GV Orbit Monitoring Control System with Cisco Fabric, Spine and Leave Architecture; 1200 Source X 2400 Destinations Router 2022-7 Redundancy Supporting HD, 3G, UHD, 4K

RECORD & PLAYBACK:

  • Up to 4 12-Channel EVS
  • 80 Record Channel Capable in HD
  • 40 Record Channels in UHD

COMMUNICATIONS:

  • 512-640 Port RTS Intercom W/ Analogue/Legacy, RVON, and Vlink Capability
  • All Positions- Omneo Keypanels
  • 12 Telephone Interfaces
  • 2 Walkie/Talkie Interfaces
  • External Omneo Keypanels and Omneo to Analogue Interfaces

GRAPHICS:

  • Wired for 2 CG Machines in HD or UHD

POWER REQUIREMENTS:

  • A-Unit: One service of 400 AMP 3 Phase 208 Volts (if 4/o feeder cable is supplied by a 3rd party), or Two services of 200 AMP 3 Phase 208 Volts each (Eclipse carries 2/o feeder cable for 2×200 AMP services)
  • B-Unit: One service of 100 AMP 3 Phase 208 Volts (Only Required if Used for Production)

SPACE REQUIREMENTS:

  • A-Unit: (All Measurements Without Tractor)
    55’8” Long x 13’6” High x 8’6” Wide– Closed (W/ the Longest Tractor Length is 77’4”)
    65’11” Long x 13’6” High x 15’6” Wide– Expanded W/ AC Flaps Open & Stairs Parallel to Truck (Add 5 ft to Width if Stairs Perpendicular to Curb)
  • B-Unit: (All Measurements Without Tractor)
    50’4” Long x 13’6” High x 8’6” Wide– Closed
    61’ Long x 13’6” High x 8’6” Wide– W/ Liftgate Down & Side Door Closed & AC Door Open

Mobile unit equipment list subject to change without notice. Additional equipment available. Please consult with your AMV Account Executive regarding availability and per-event specifications.
