Features & Highlights:

  • AMV’s Large and Powerful HDR and 4K Production Truck
  • Sony XVS 8000 (UHD/3G/HD Capable) 5 ME W/ Aux Buses that Can Dissolve (Up to 12)
  • Sony 4300 Cameras
  • Wired for 20 Video Recording Machines and 4 EVS Chassis
  • 3- 30” OLED 4K Monitors in Production

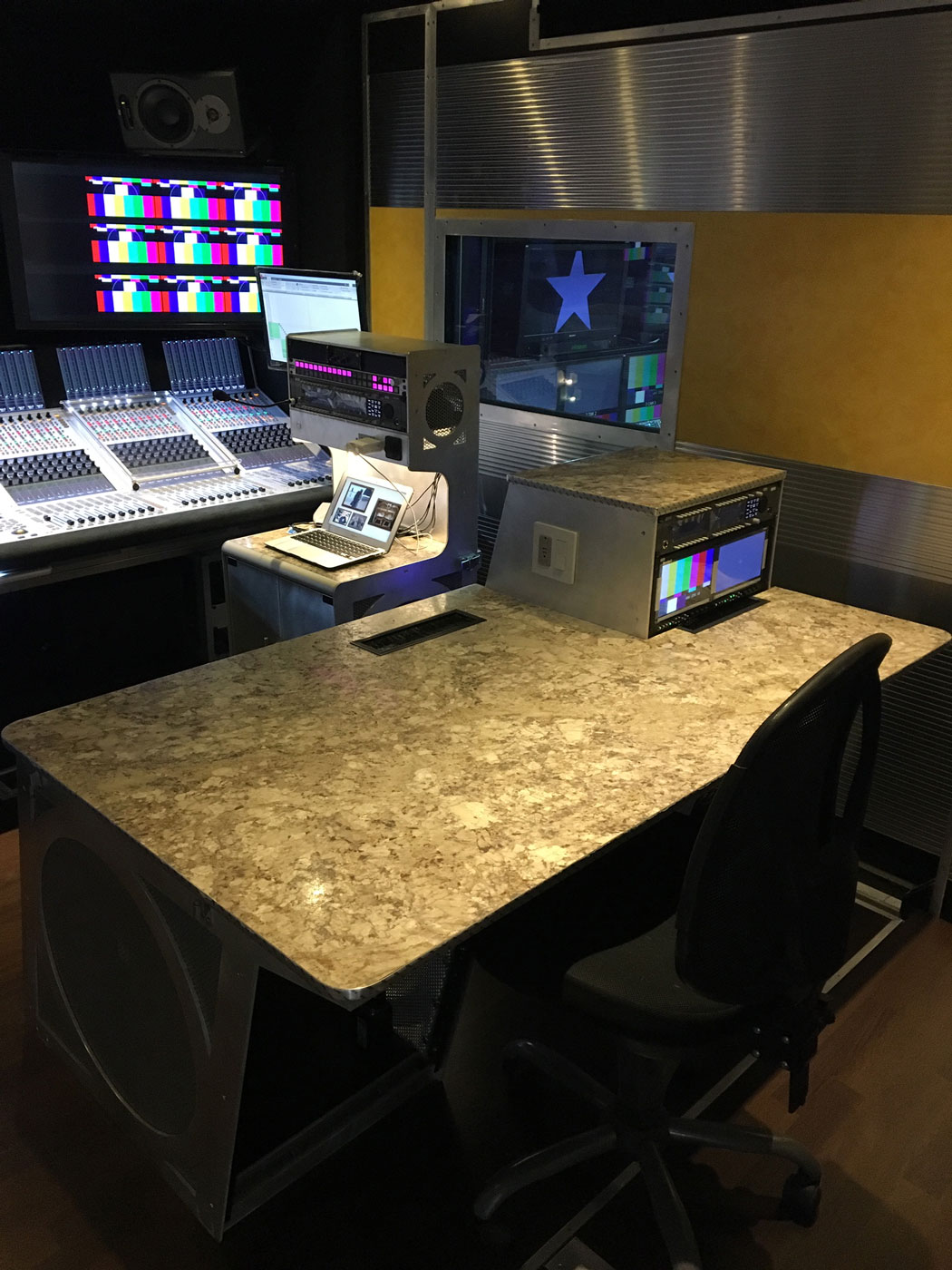

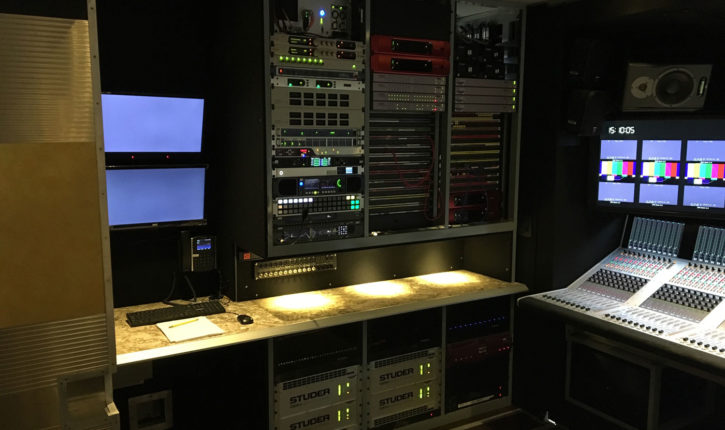

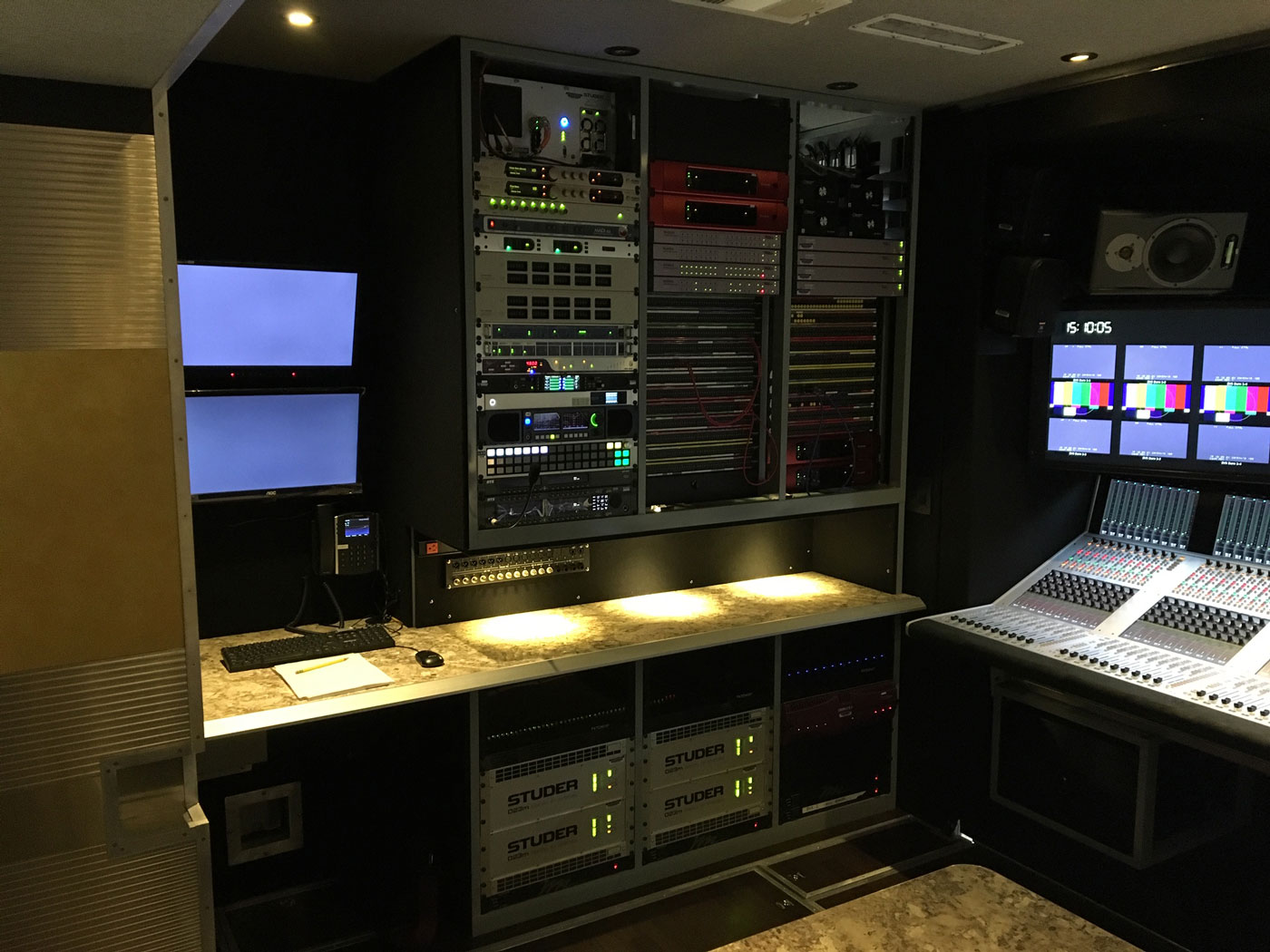

  • Studer Vista X; (Audio Back Bench in Audio Room)
  • 32 IN and 32 OUT Single Mode ST Fiber to I/O from Grassvalley Router
  • 32 x 32 Dante/ Analog converter I/O Box
  • 104 DeEmbedders, 160 Embedders, 16 Frame syncs. MADI 7 In – 8 Out on Router
  • 16 XVP Up/Down/Cross Converters w/ 23.98p to 23.98psf
  • 59′ Triple-Expando

Zurich Truck Specs – View/Download PDF

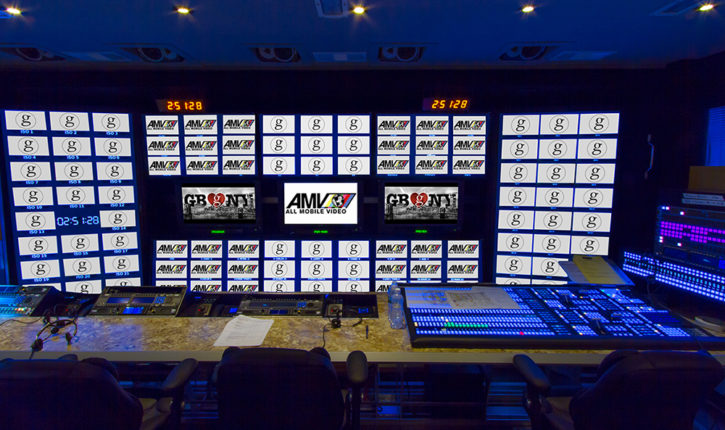

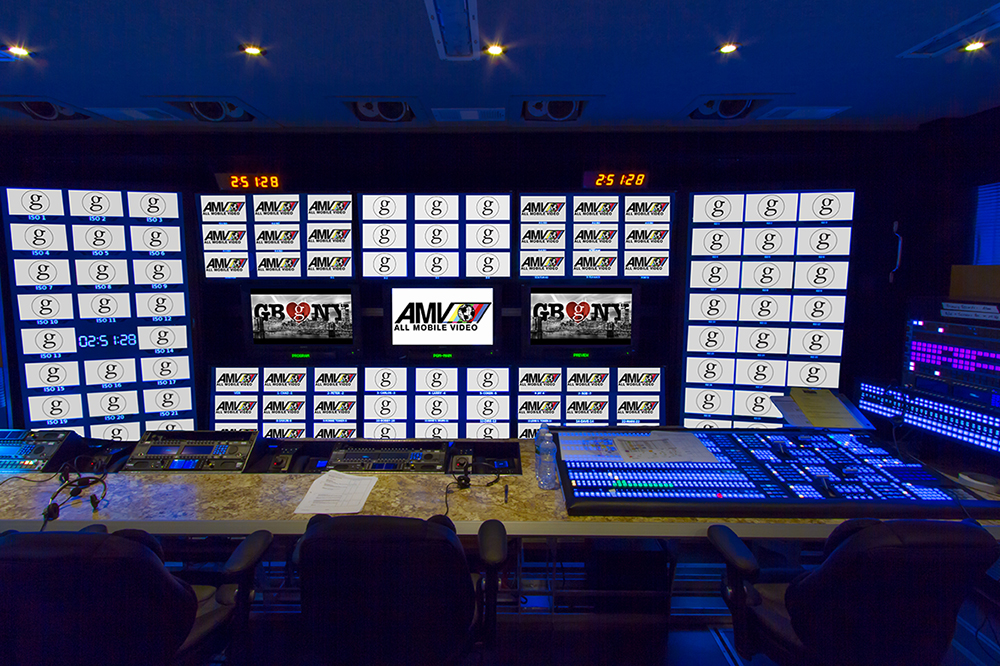

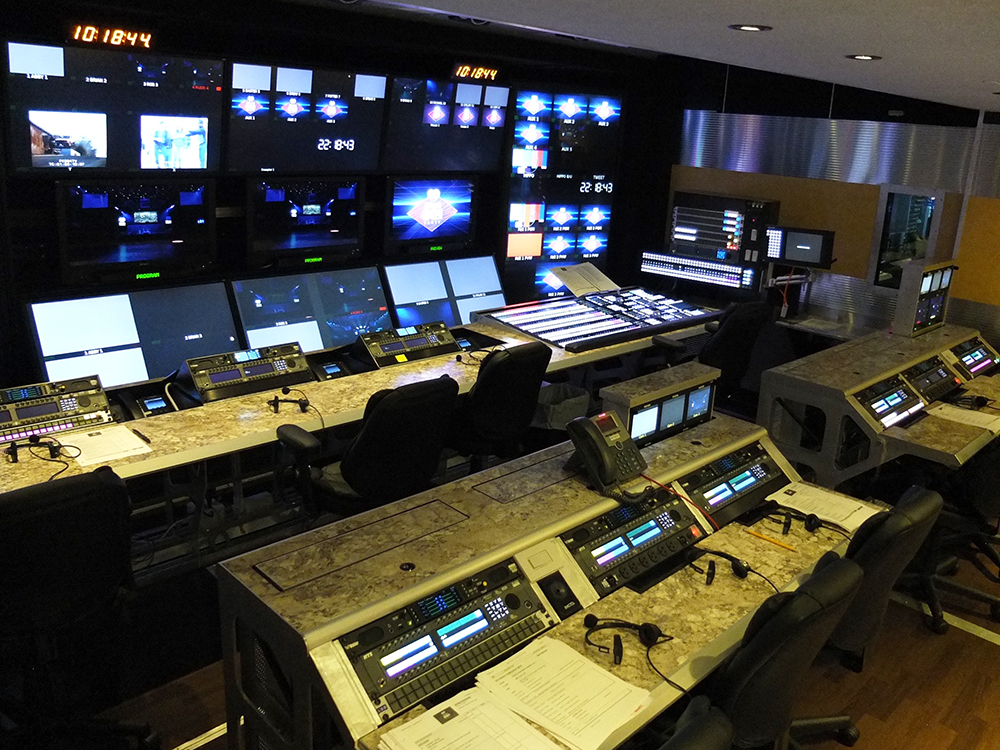

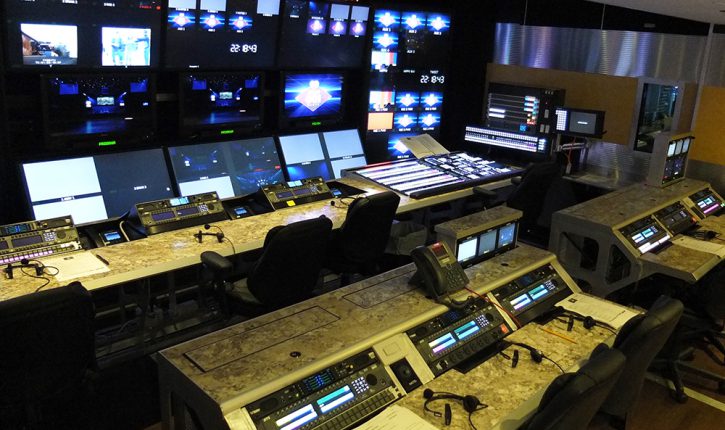

PRODUCTION:

Sony XVS 8000 (UHD/3G/HD Capable) Switcher, (112 Inputs X 48 Outputs); 5 ME W/ 4 external DME Channels & Re-Sizers on all Keyers; Back Bench/ Screens Switching Panels (2- 25 button X-Point Moduals & 2- Transition/ Flexi Pad Moduals) Attached to Main Switcher Frame; 128 X 8 Multi View Monitor Wall; 48 X 4 External Multi View to I/O.

FR8576 NV8576 32RU Frame 576 x 1152 Frame

  • 164×278 3GIG
  • 32×32 3 GIG Fiber
  • 104 DEM
  • 288 EMB
  • 64×64 AES
  • 64×64 AA
  • 7×8 MADI
  • 17 M3 interconnects to Kaleido Multiviewer

Total router 359 input x 766 output plus 7 MADI in and 8 MADI out

Multi-viewer

  • KALEIDO-MX-24X2
  • KALEIDO-MX-16X4
  • KALEIDO- Modular-X/17 KMX-3901-IN-16-Q/10 KMX-3901-OUT-D = 272 input x 40 output multi-viewer system
  • All multi-viewer routable

Total multi-viewer= 312 x 46  multi-viewer system

Sony XVS 8000 UHD 3G

  • 112 inputs
  • 48 outputs
  • 5 ME’s (10 possible)

AUDIO:

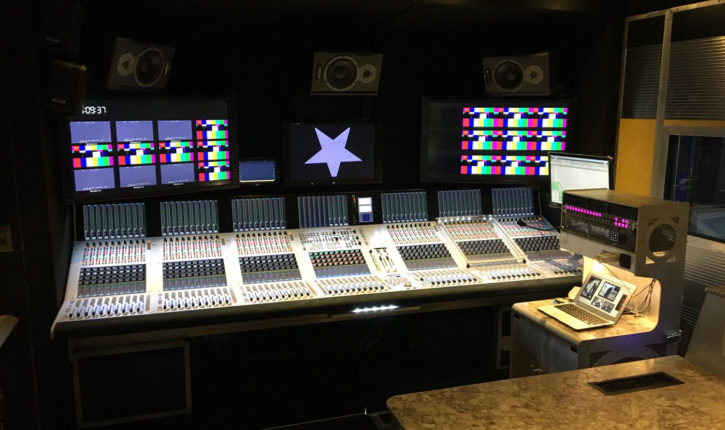

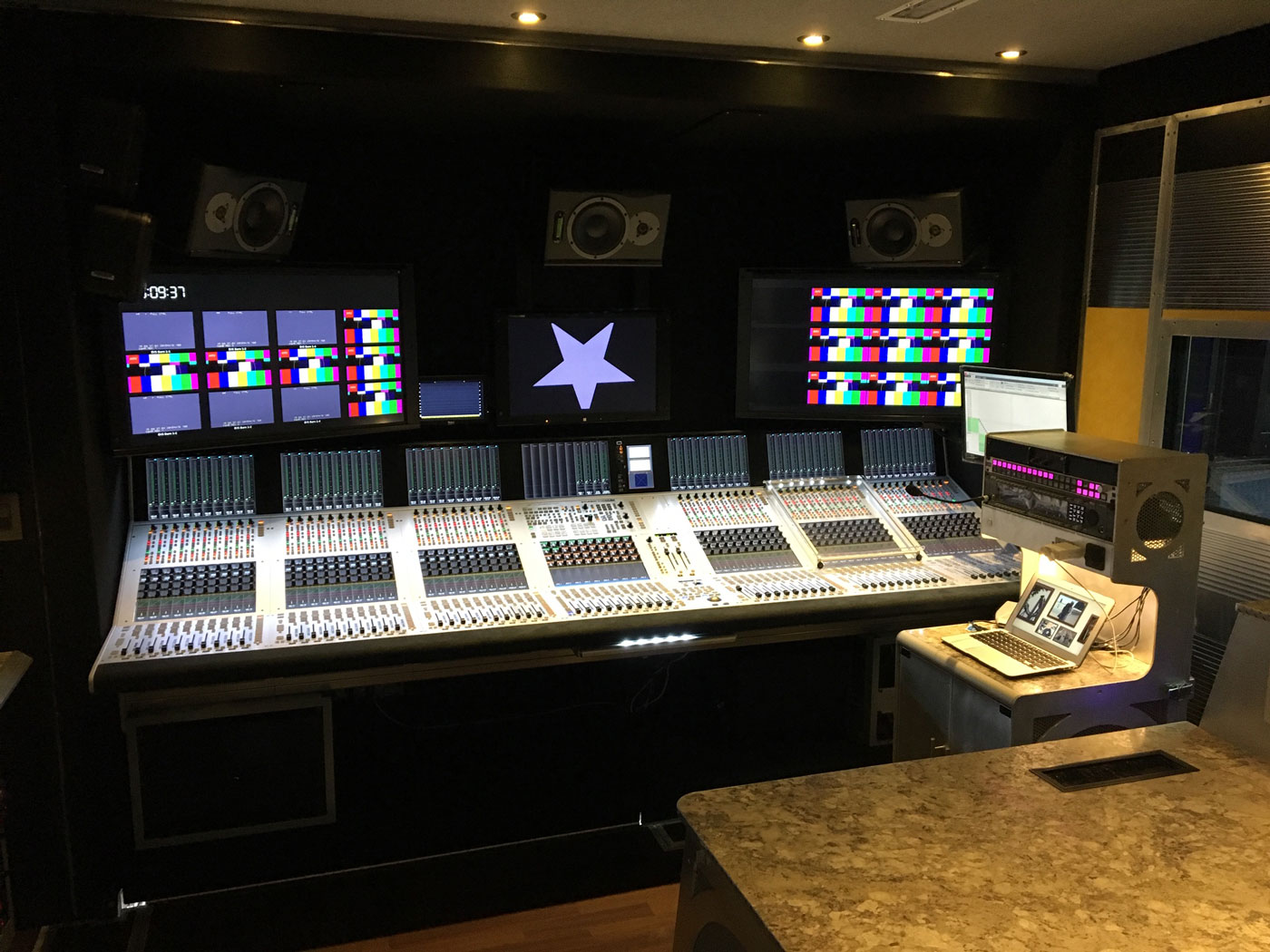

  • Studer Vista X W/ 72 Faders on the Surface with built in dual PCM96 effects processors
  • Studer Stage Boxes W/ SMPTE Fiber (Optional) (2) 48 X 16 & (1) 40 Stage Boxes
  • 128 channels of DANTE I/O
  • 4 Engine TC Electronics System 6000
  • Extensive MADI routing
  • 2 Lexicon PCM 96
  • Studer Vista X
    • 3 Madi in
    • 4 Madi out
    • 1 Dante

CAMERAS:

  • 12 Sony 4300-4K (Wired for 16)+
  • 6 F-55 w/ CA backs available upon request

ROUTER/ CONVERSION:

  • 104 DeEmbedders, 160 Embedders, 16 Frame syncs. MADI 7 In-8 Out on Router;
  • 64X64 AES Router; 64X64 ST Analog Router
  • 6 4K Up/Down Converters (Available Upon Request)
  • 2 4K Color Corrector Channels Available
  • 8 HD Color Corrector Channels Available

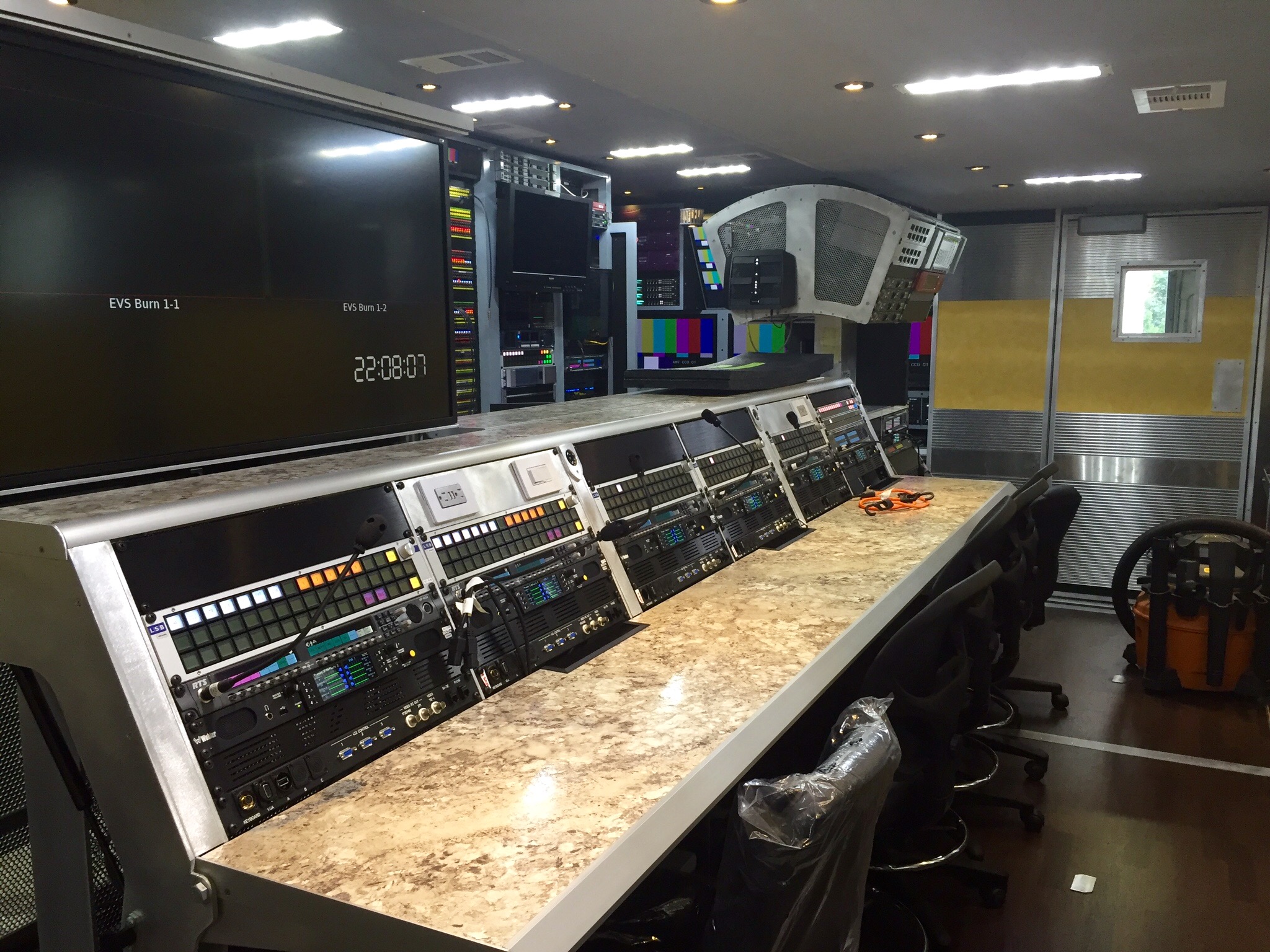

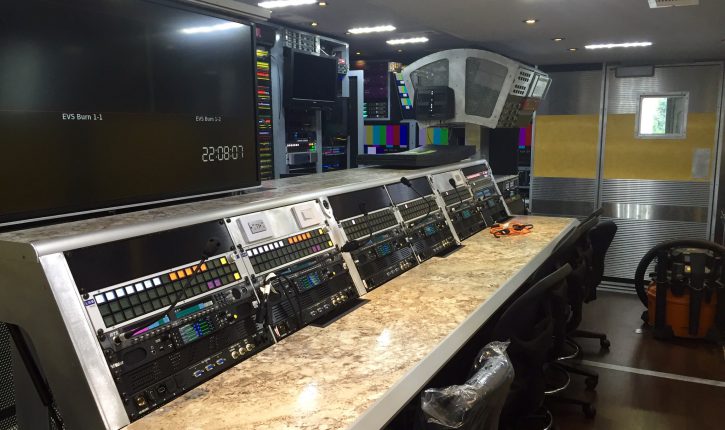

RECORD & PLAYBACK:

  • Up to 4 8-Channel EVS
  • 10 VTR Slots/Wired for 20
  • 4 Channel H.264 Recorder
  • 6 Time Code Keyers
  • 20 channels of HD Rec w/back-up
  • 15 channels of UHD Rec
  • 32 channels of server in HD
  • 16 channel of server in UHD

COMMUNICATIONS:

  • RTS Adam M OMNEO Intercom with 208 X 208 Ports
  • 8– RTS Tiff 4000s

GRAPHICS:

  • Wired for 2 CG Machines

POWER REQUIREMENTS:

  • A-Unit: 1 Service, 200 AMP, 3 Phase, 208 Volts
  • B-Unit: 1 Service, 100 AMP, 3 Phase, 208 Volts (Only Required if Used for Production)

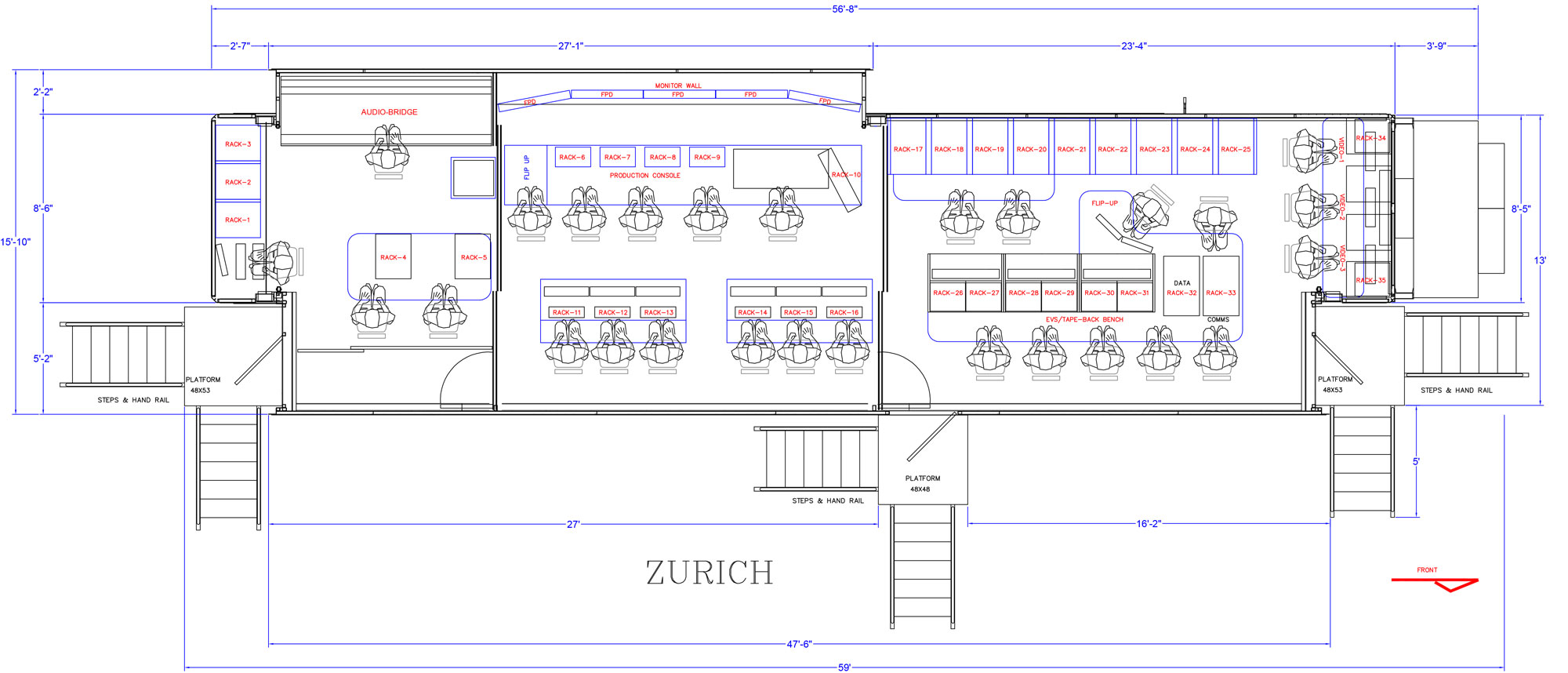

SPACE REQUIREMENTS:

  • A-Unit: (All Measurements Without Tractor)

56’8” Long x 13’6” High x 8’6” Wide– Closed (W/ the Longest Tractor Length is 77’4”)

59’ Long x 13’6” High x 15’10” Wide– Expanded W/ AC Flaps Open & Stairs Perpendicular to Curb

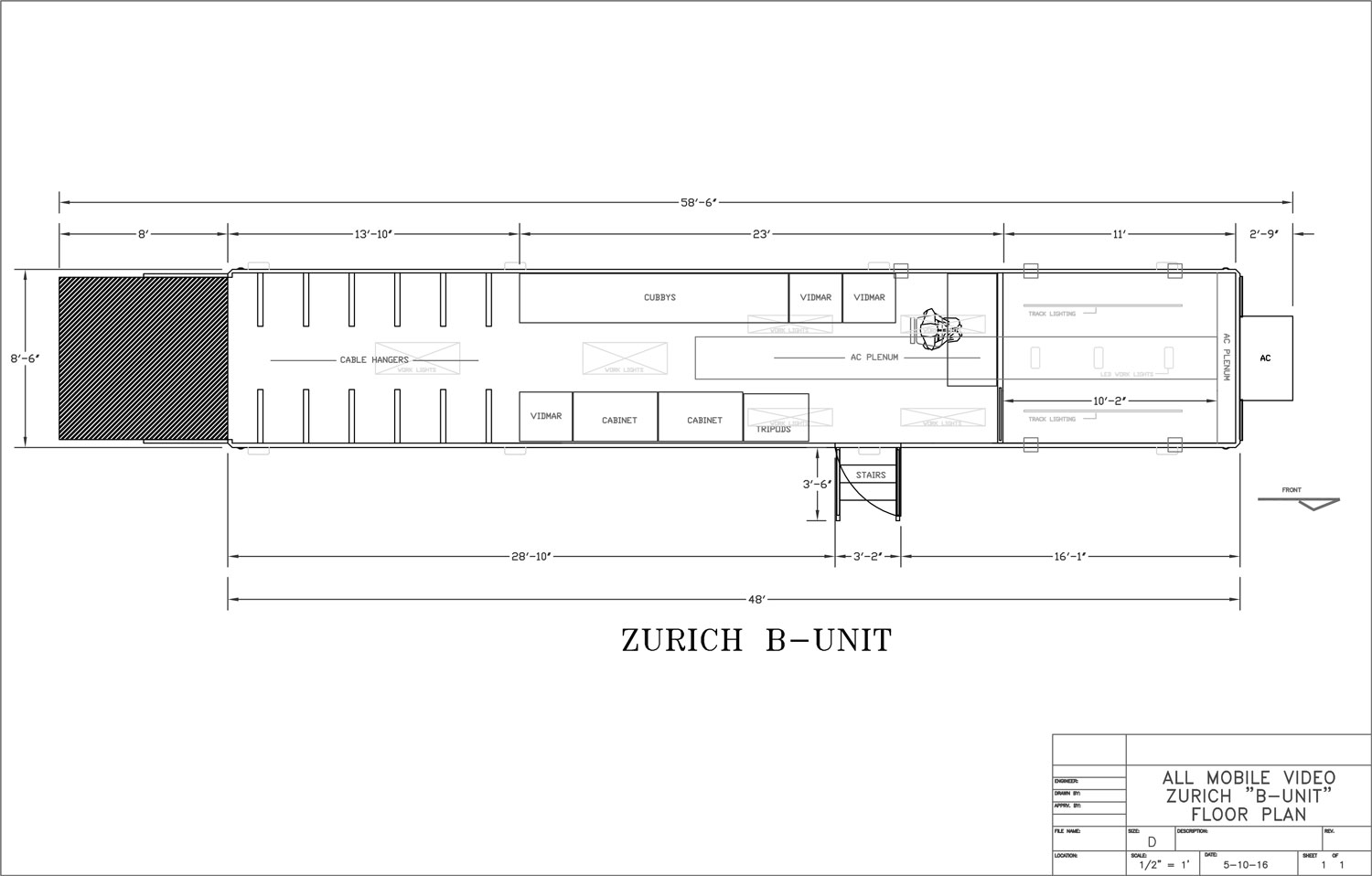

  • B-Unit: (All Measurements Without Tractor)

51’6” Long x 13’6” High x 8’6” Wide– Closed

58’ Long x 13’6” High x 8’6” Wide– W/ Liftgate Down & Side Door Closed



Mobile unit equipment list subject to change without notice. Additional equipment available. Please consult with your AMV Account Executive regarding availability and per-event specifications.

Zurich A Unit – View/Download PDF

Zurich B Unit – View/Download PDF

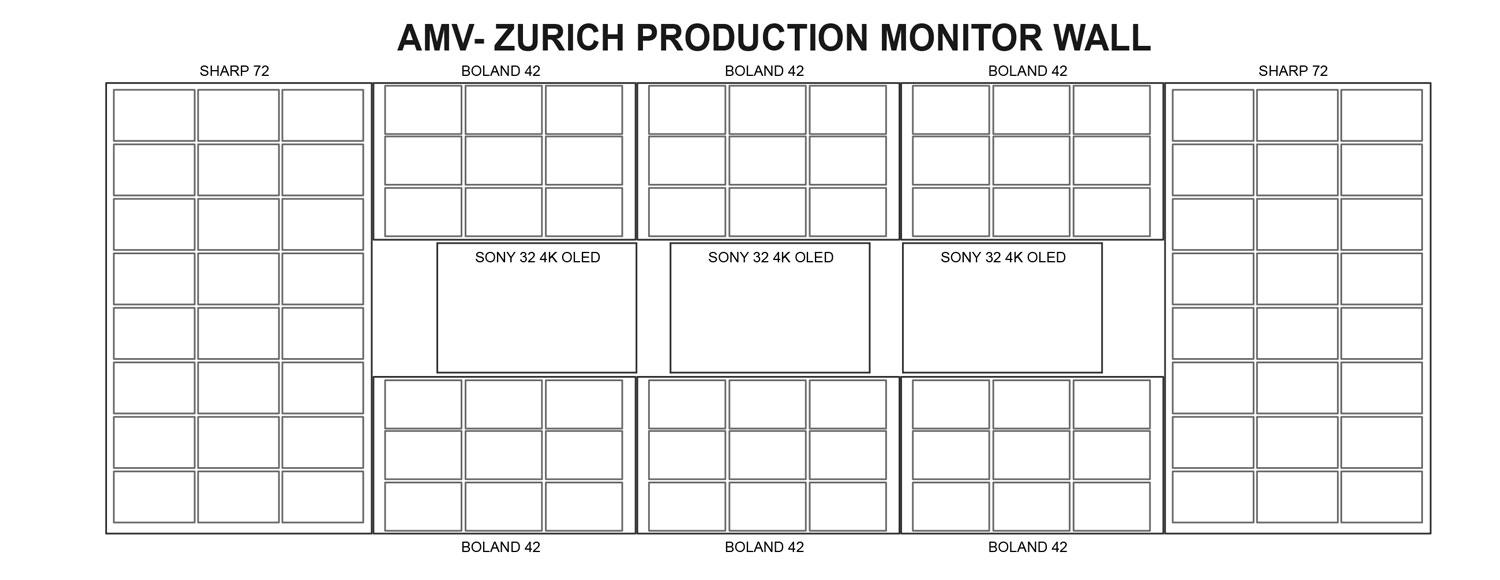

Zurich Monitor Wall – View/Download PDF
