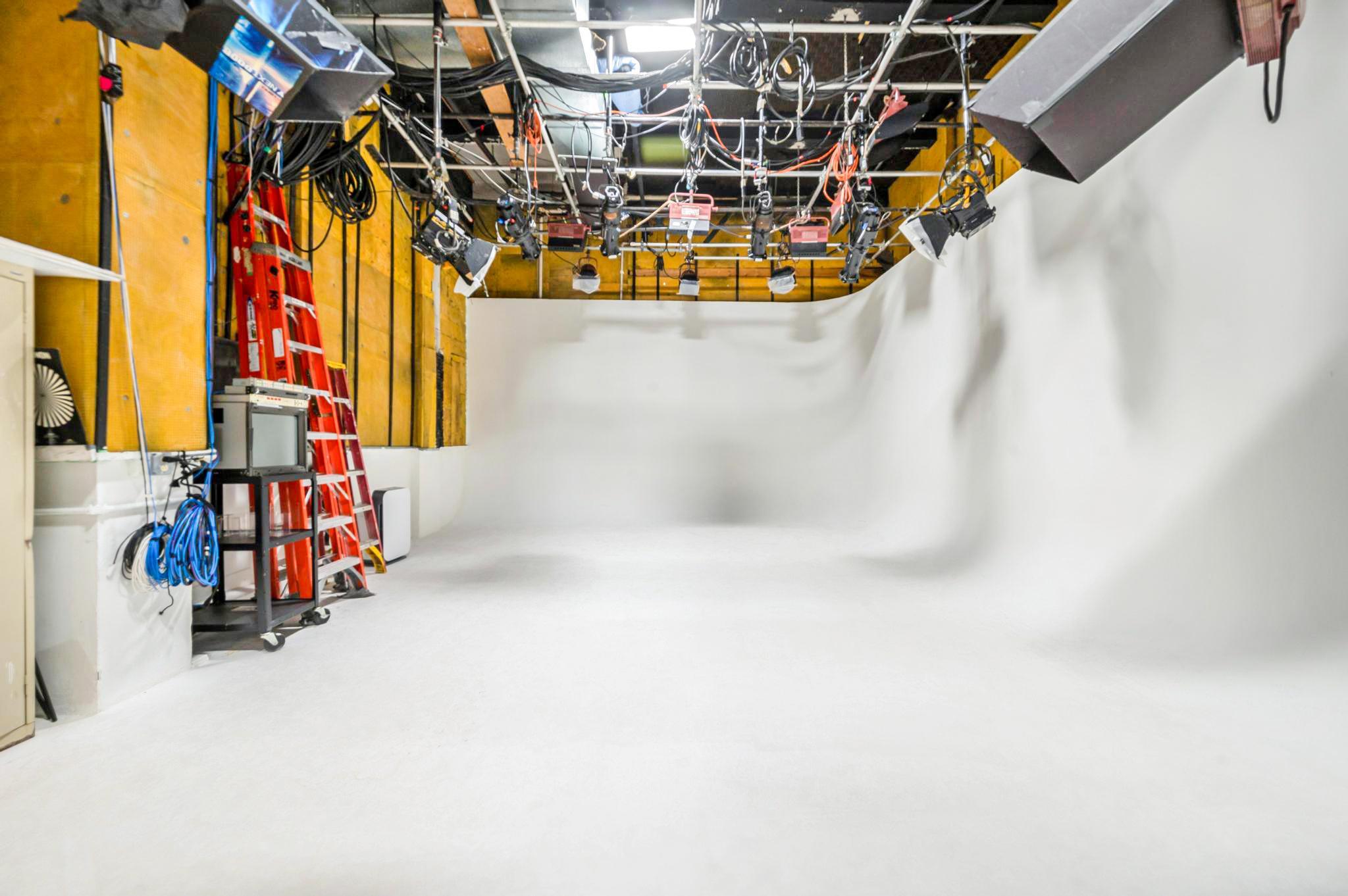

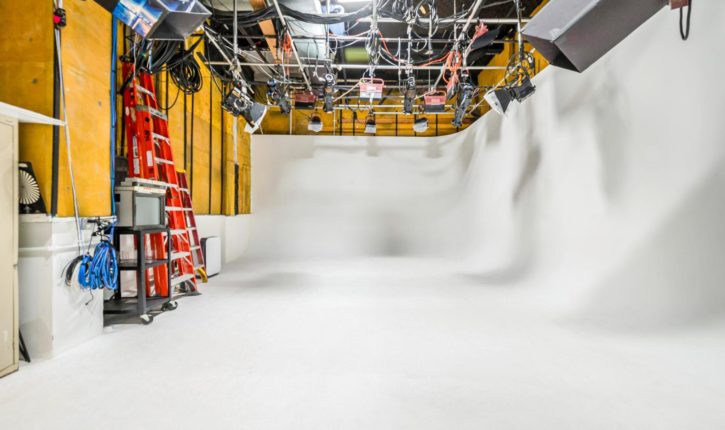

Situated in the heart of Chelsea, Studio D is a refined 600 sq. ft. sound stage suited for any small-scale production. Approximately 21’ L X 30’ W X 14.5’ H to the lighting grid, this insert sound stage also features a 2-wall hard cyclorama.

Click here to see a virtual tour of Chelsea Studio D.

With the illusion of endless dimensions, Studio D provides your production with the option of multiple set other small studios may not be able to grant. The studio is also conveniently located on the first floor of the building with direct off-the-street load-in access.

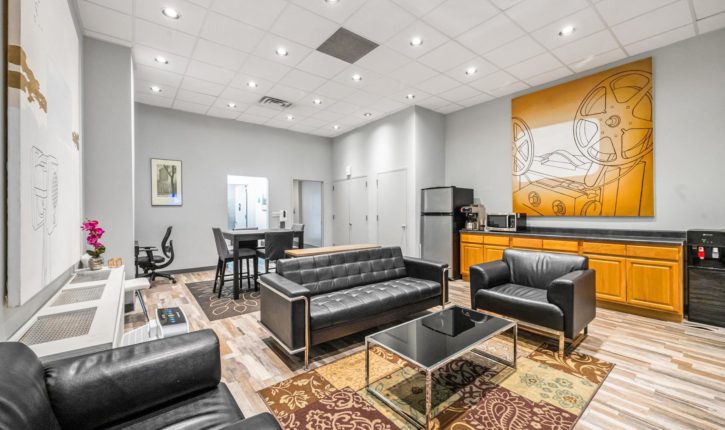

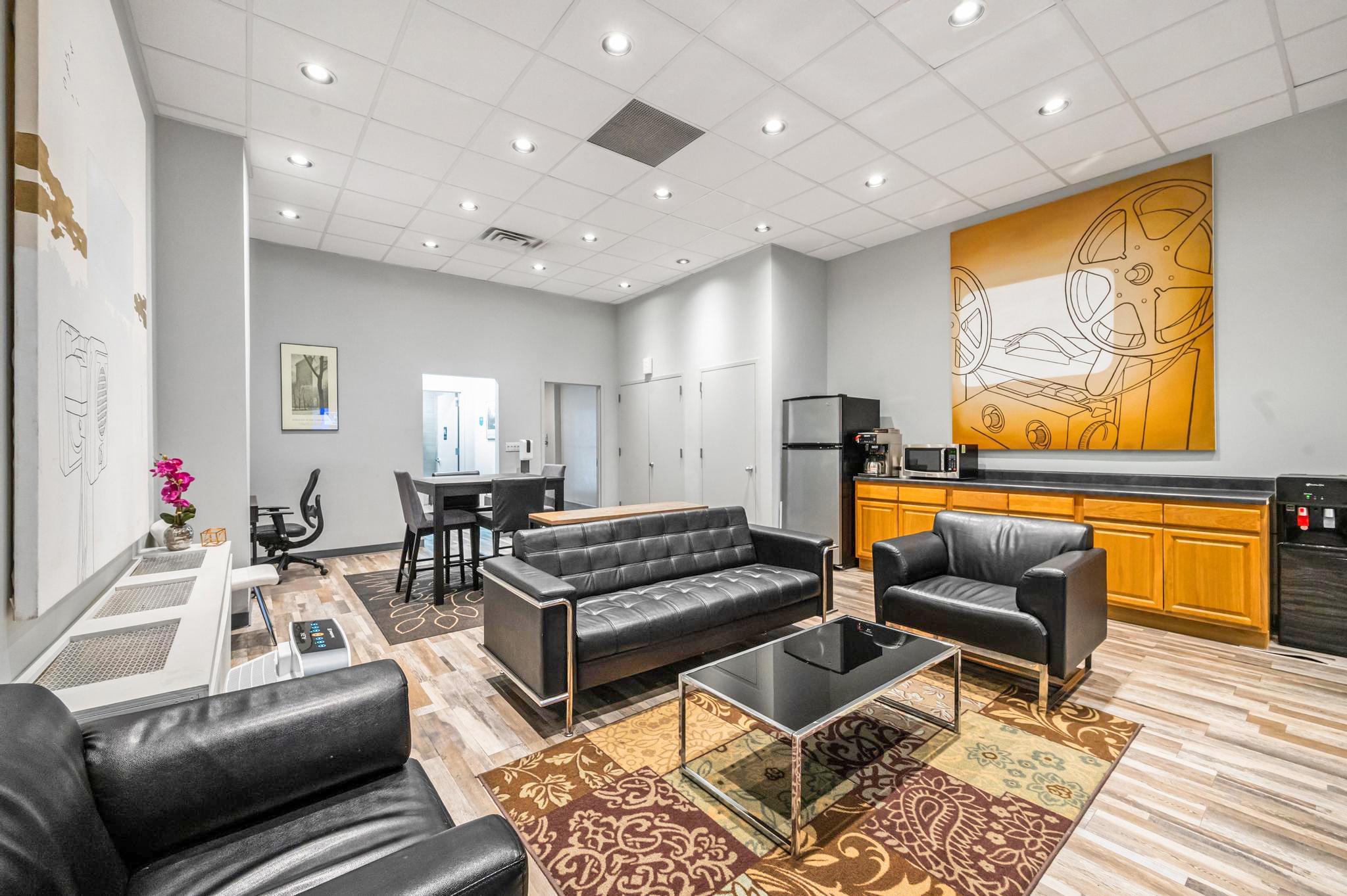

Studio D is complemented by multi support spaces- including two hair/make-up stations, and a large green room, located directly across the hall from the studio.

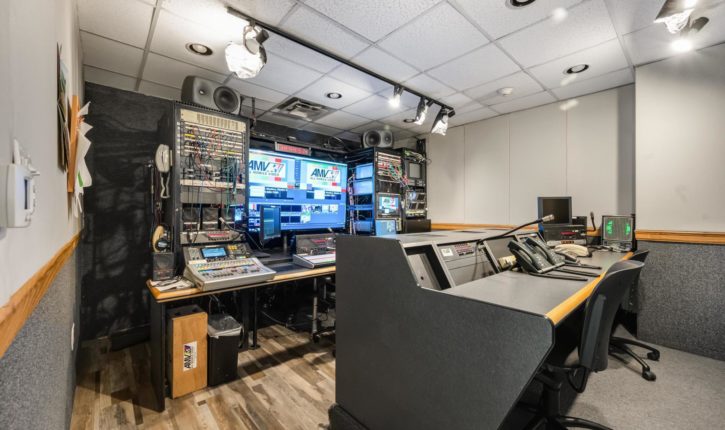

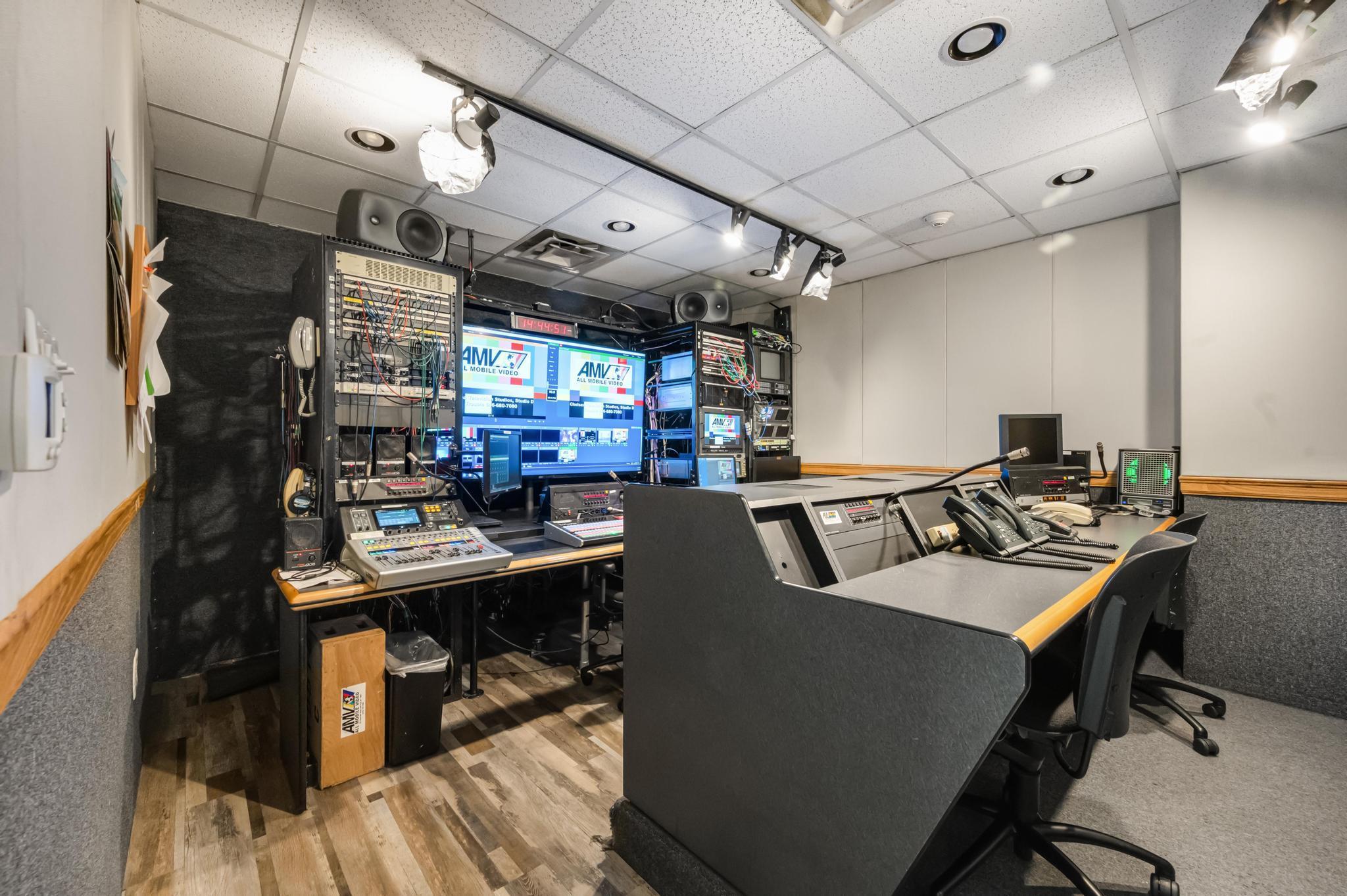

The technical facilities which are in close proximity to the sound stage, features a NewTek TriCaster TCXD-8000 with Chroma Keying and Virtual set, a Monitor wall with Multiviewer, and a PreSonus StudioLive 16.4.2 AI Digital Audio Console. Live projects are catered to with fiber and satellite uplink facilities as well as our ability to provide recording and encoding technologies specific to your needs.

Studio D Tech Spec – View/Download PDF


Control Room

· NEWTEK TRICASTER 8000 WITH CHROMA KEYING & VIRTUAL SET

· MONITOR WALL MULTIVIEWER FROM TRICASTER

· ROSS XPRESSION HD GRAPHICS AVAILABLE

· AUTOSCRIPT PROMPTING AVAILABLE

Audio

  • PRESONUS STUDIO LIVE 16.4.2 DIGITAL AUDIO CONSOLE
  • 360 SYSTEMS DIGICART AUDIO PLAYBACK UNITS
  • GENTNER TELEPHONE HYBRIDS
  • SENNHEISER RF LAV AND HANDHELD MICS
  • LECTROSONICS RF IFB

Intercom

  • RTS ADAM DIGITAL INTERCOM MATRIX
  • TELEX KP-96, KP-98, KP-12 KEYPANELS

· TELEX TIFF-2000 HYBRIDS FOR REMOTE PL OVER PHONE LINES

· TELEX BTR-800 RF PL SYSTEM

Cameras

  • SONY HDC-1000/1500 HD CAMERA SYSTEMS
  • FUJINON STUDIO, ENG AND WIDE ANGLE LENSES
  • FULMAR AND TEAL PEDESTALS
  • SACHTLER TRIPODS WITH WHEELS

· STANTON TRIANGLE JIMMY JIB CAPABLE OF 21’ LENGTH

Video Control

  • FOR-A FA-9500 COLOR CORRECTORS
  • HARRIS X-50 AND X-75 FRAME SYNCS

* TERANEX 2D

Video Tape Recorder (VTR)

· HDCAM, XDCAM, HDVCAM, DVCPRO HD, KiPRO, CINEDECK, H.264 –

ASK FOR YOUR RECORDER OF CHOICE.

  • AVID AIRSPEED AVAILABLE
  • DVD RECORDERS
  • HI-SPEED DVD DUBBING

View/Download PDF

DIMMING SYSTEM : STUDIO C

ETC Element Lighting Control Console 60 Faders with 250 Channels

(96) 20 amp dimmer circuits

Dimmer system is powered by a 400 Amp 3 Phase disconnect located in the
studio.

Additional 200 Amp 3 Phase Disconnect is also available in the studio with
cam-lock tails.

180 Amps of technical power is located in the studio denoted by orange
outlets.



DIMMING SYSTEM : STUDIO D

ETC Element Lighting Control Console 60 Faders with 250 Channels

(24) 20 amp dimmer circuits in studio D



SHARED LIGHTING EQUIPMENT : STUDIO C & D

(34) Sticks

(48) 1K

(36) 2K

(12) Leko Source Fours with various lenses

(14) 1K Scoops

(6) 1K Cyc light

(14) 2K Baby Zips

(7) Par 64



(3) 4 lamp 2ft. Kino Flow

(1) 2 lamp 2ft. Kino Flow

(4) 4 lamp 6ft. Kino Flow



12 C-stands with heads and gobo arms

30 sandbags

18 full apple boxes

12 half apple boxes

1 Assorted Flag Kit

Note:

All units may not have a full set of scrims and gel frames in the studio.
