Features & Highlights:

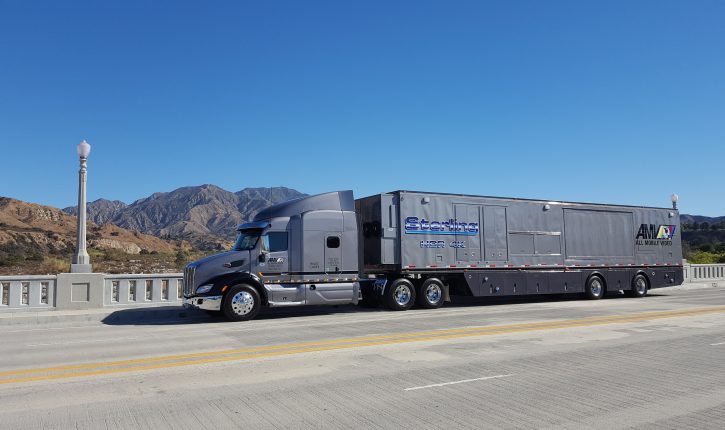

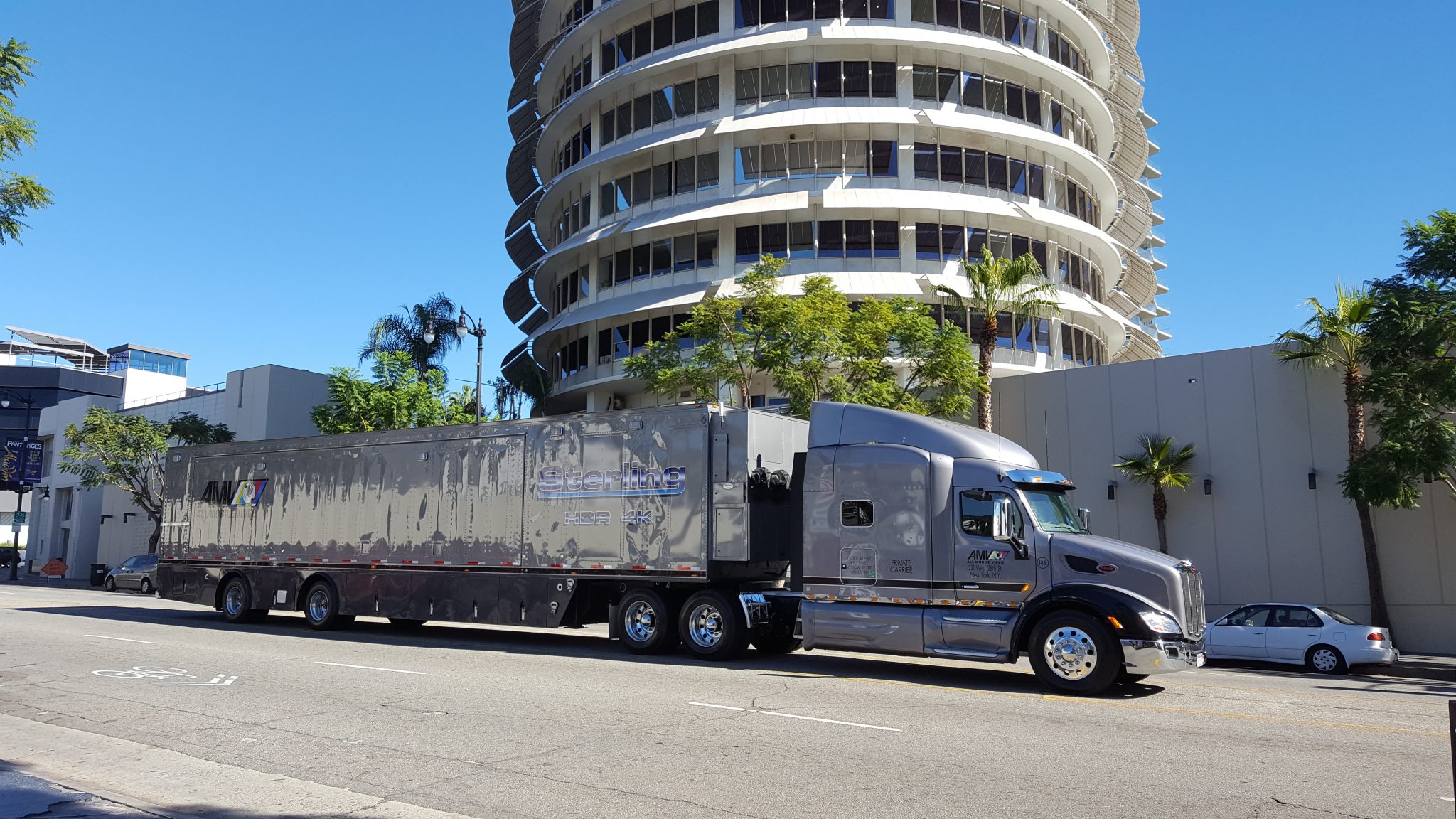

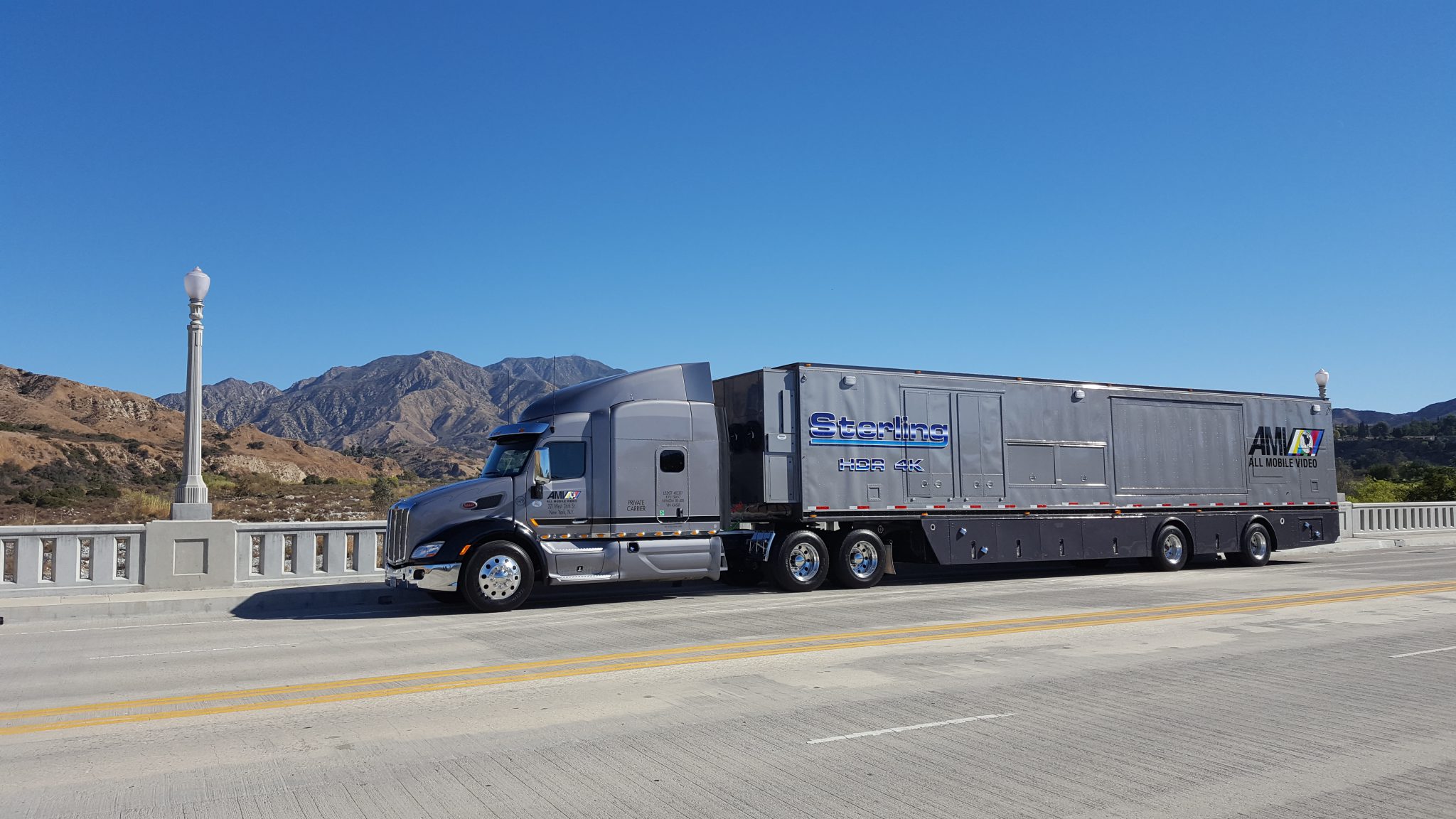

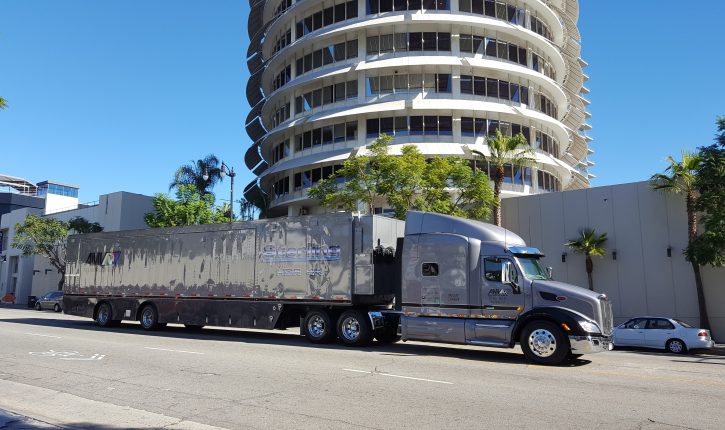

  • AMV’s Large and Powerful HDR and 4K Production Truck
  • Sony XVS 7000 (UHD/3G/HD Capable) 5 ME W/ Aux Buses that Can Dissolve (Up to 12)
  • Sony 4300 Cameras
  • Wired for 24 Video Recording Channels and 3 EVS Chassis; 3- 30” OLED HRD/4K Monitors in Production
  • Studer Vista 8

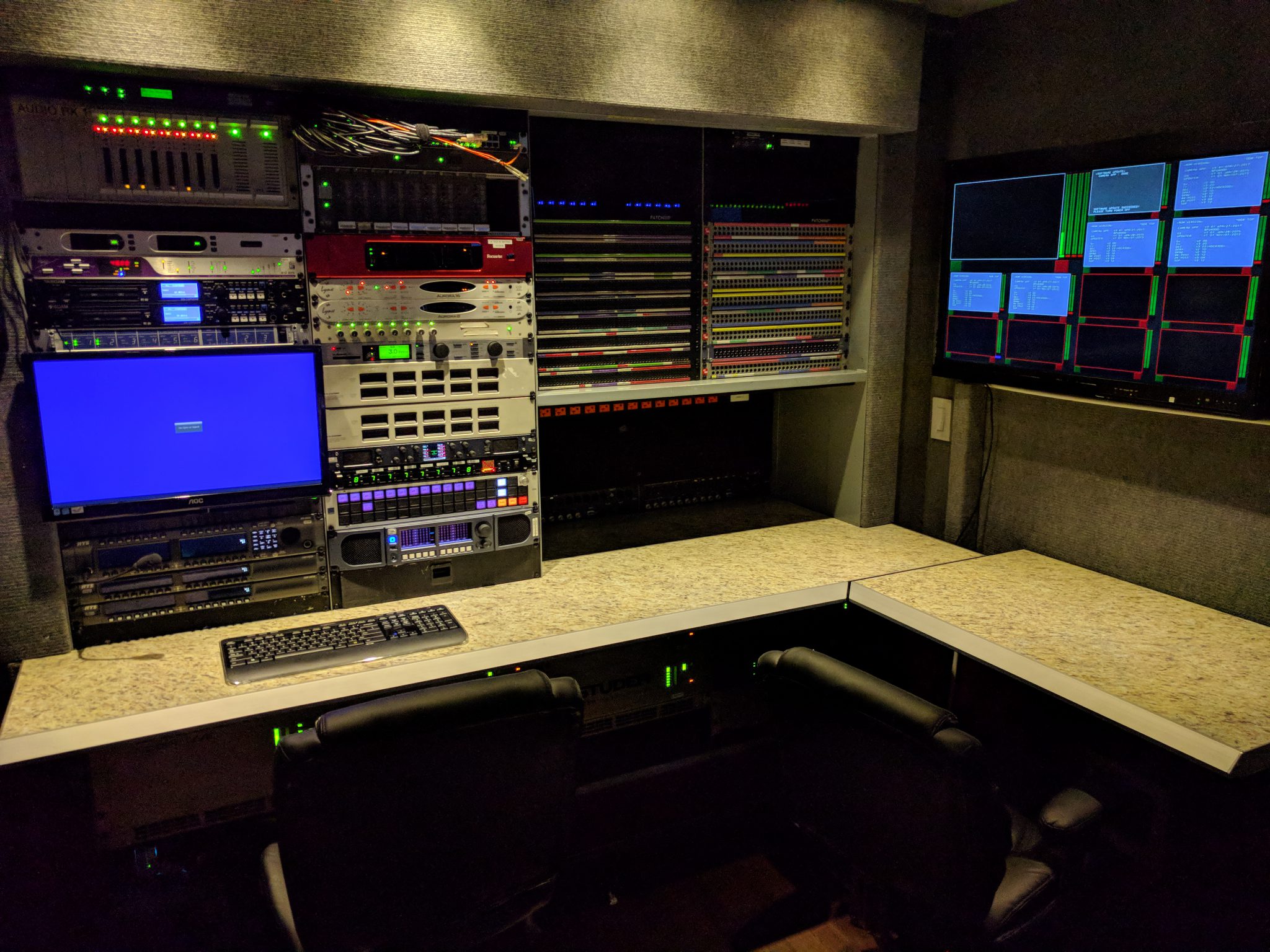

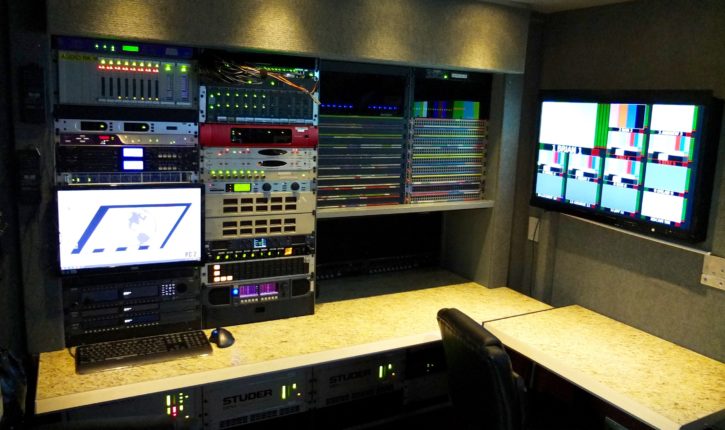

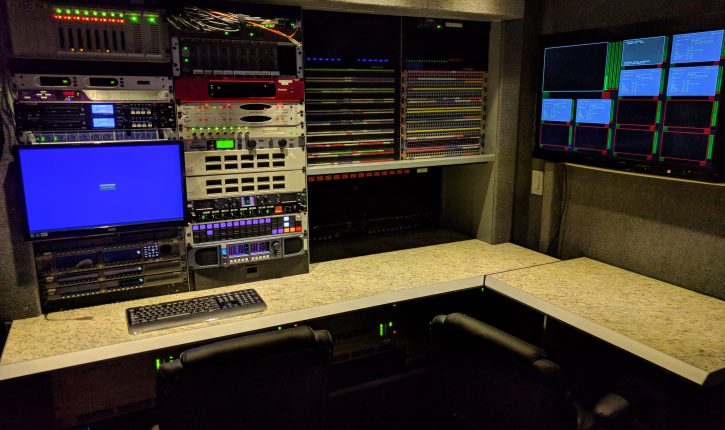

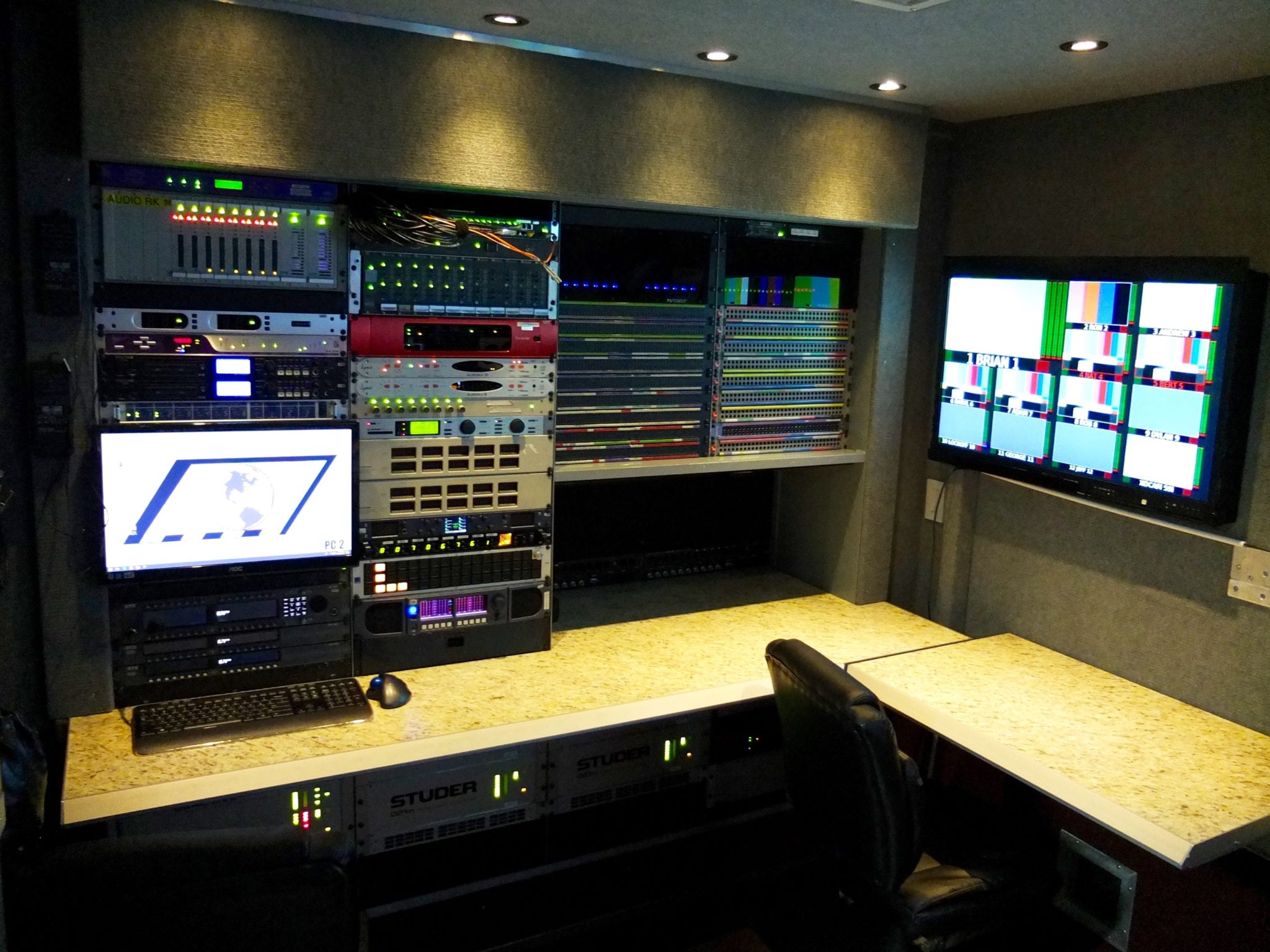

  • Audio Back Bench in Audio Room
  • 32 IN and 32 OUT Single Mode ST Fiber to I/O from Grassvalley Router. 104 DeEmbedders, 272 Embedders. MADI 7 In – 8 Out on Router
  • 16 XVP Up/Down/Cross Converters w/ 23.98p to 23.98psf

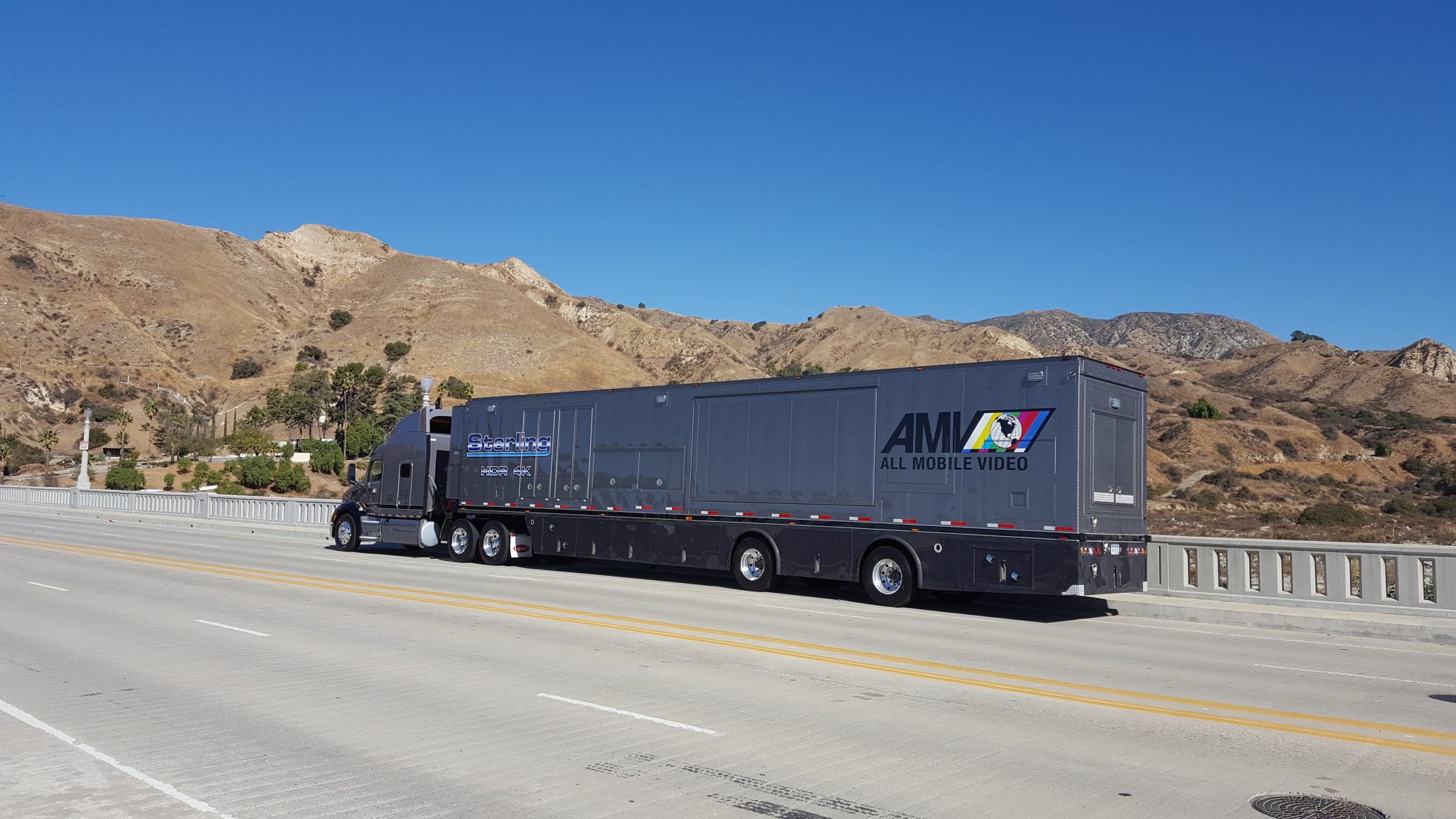

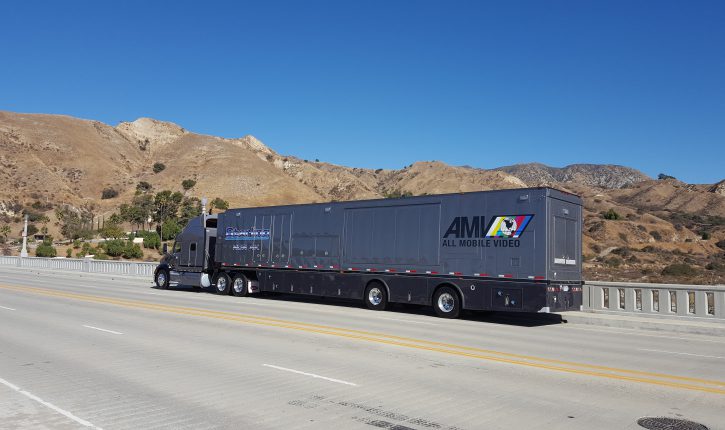

  • 63′ Triple-Expando

Sterling Truck Specs – View/Download PDF

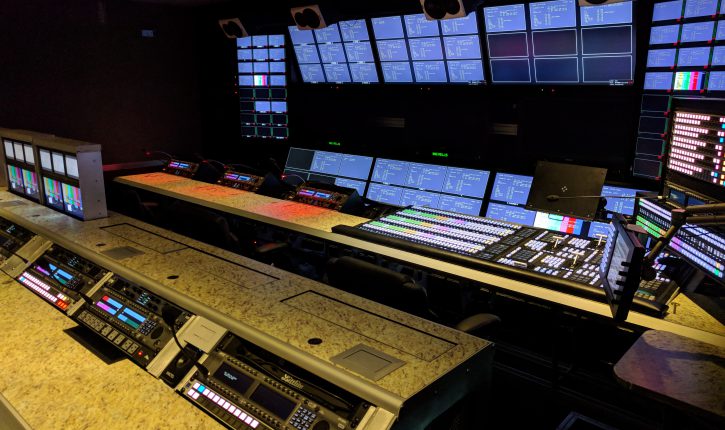

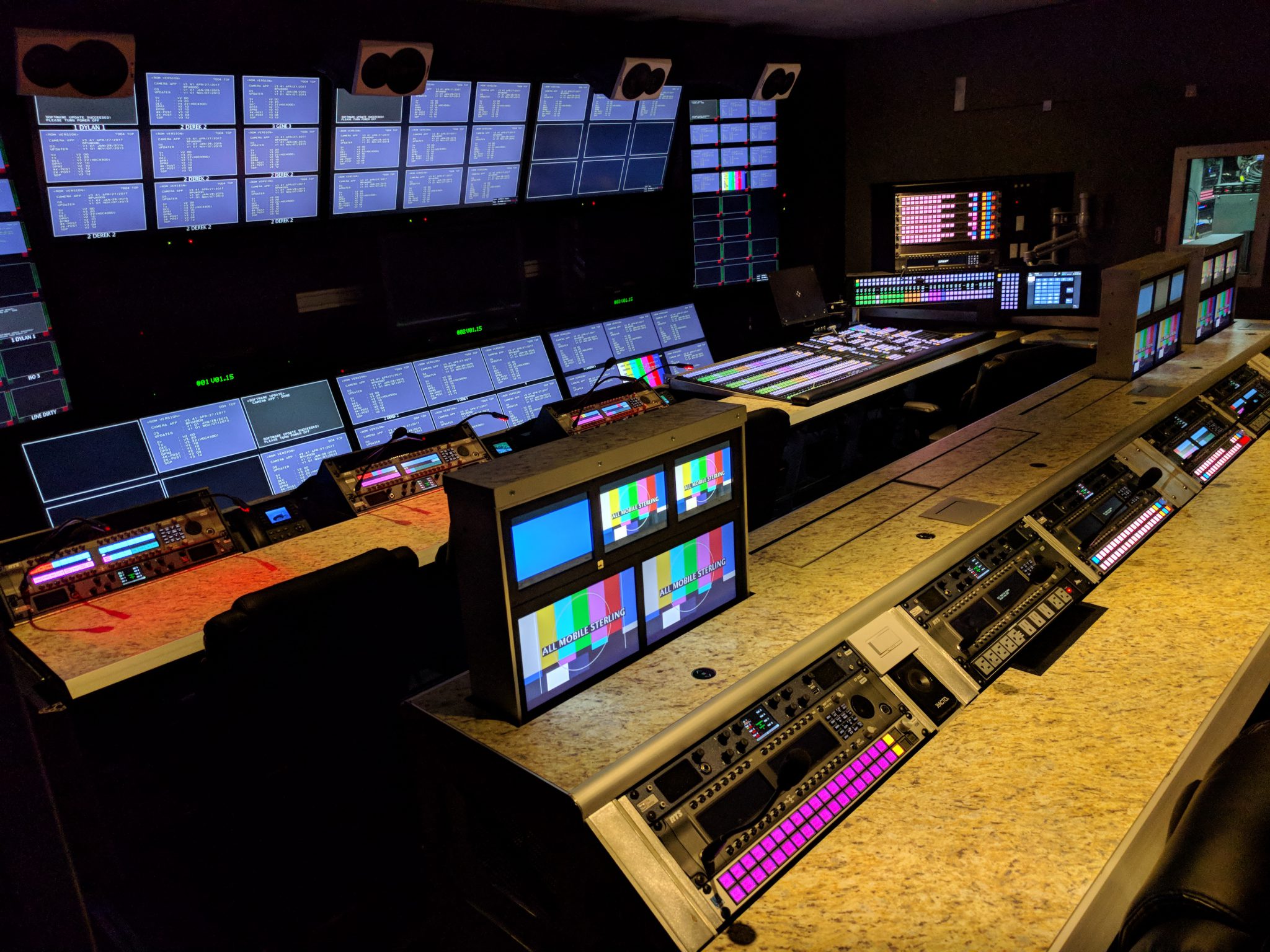

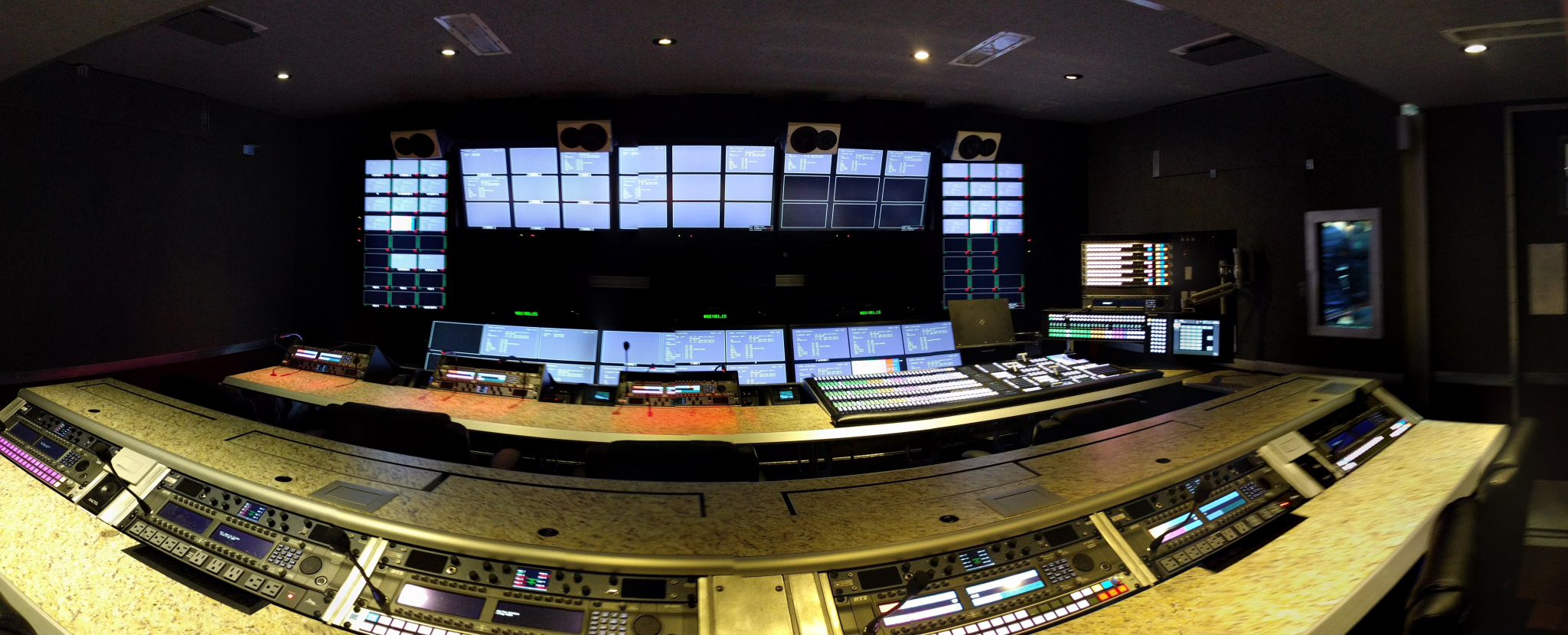

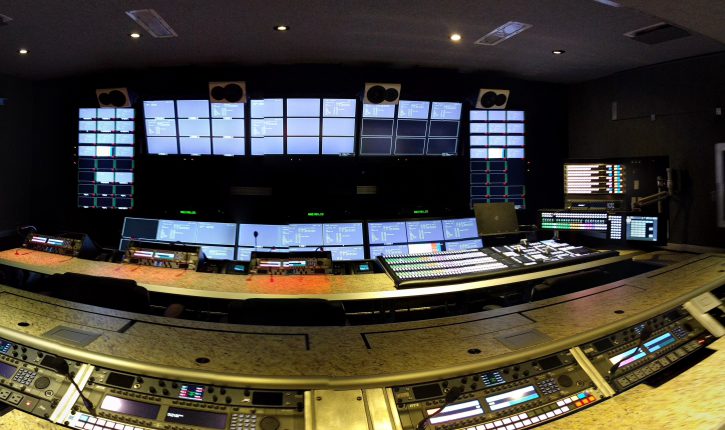

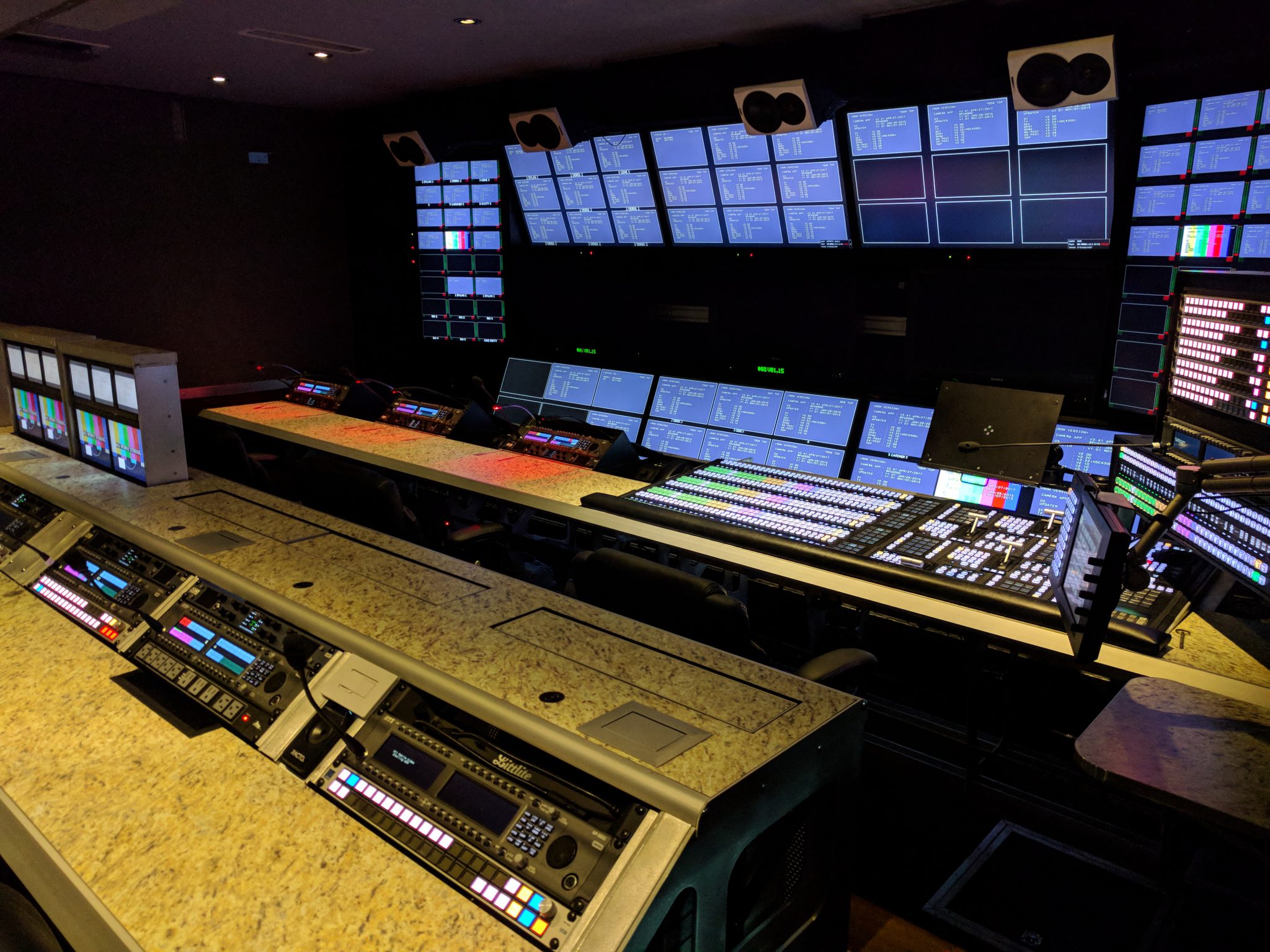

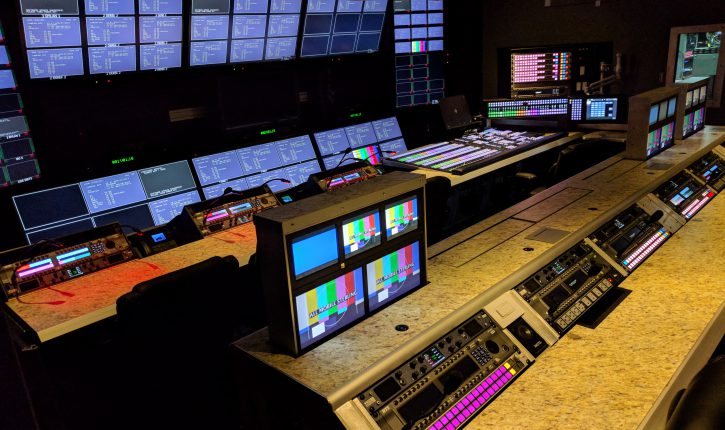

PRODUCTION:

  • Sony XVS 7000 (UHD/3G/HD Capable) Switcher 5 ME W/ 4 internal DME Channels & Re-Sizers on all Keyers 128X8 Multi View Monitor Wall; 48X4 External Multi View to I/O.

FR8280 NV8280 16RU Frame 288 x 576 Frame

  • 164×262 3GIG
  • 32×32 3 GIG Fiber patchamp converter into router
  • 104 DEM
  • 272 EMB
  • 64×64 AES
  • 7×8 MADI
  • 11 M3 interconnects to Kaleido Multiviewer

Total router 268 input x 534 output plus 7 MADI in and 8 MADI out

Multi-viewer

  • KALEIDO-MX-64×4
  • KALEIDO-MX-64×4
  • KALEIDO-MX-48×4
  • KALEIDO-X— 96×8
  • Not all multi-viewer routable

Total multi-viewer= 272 x 20  multi-viewer system

Sony XVS 7000 UHD 3G

  • 112 inputs
  • 48 outputs
  • 4 ME’s (6 possible)

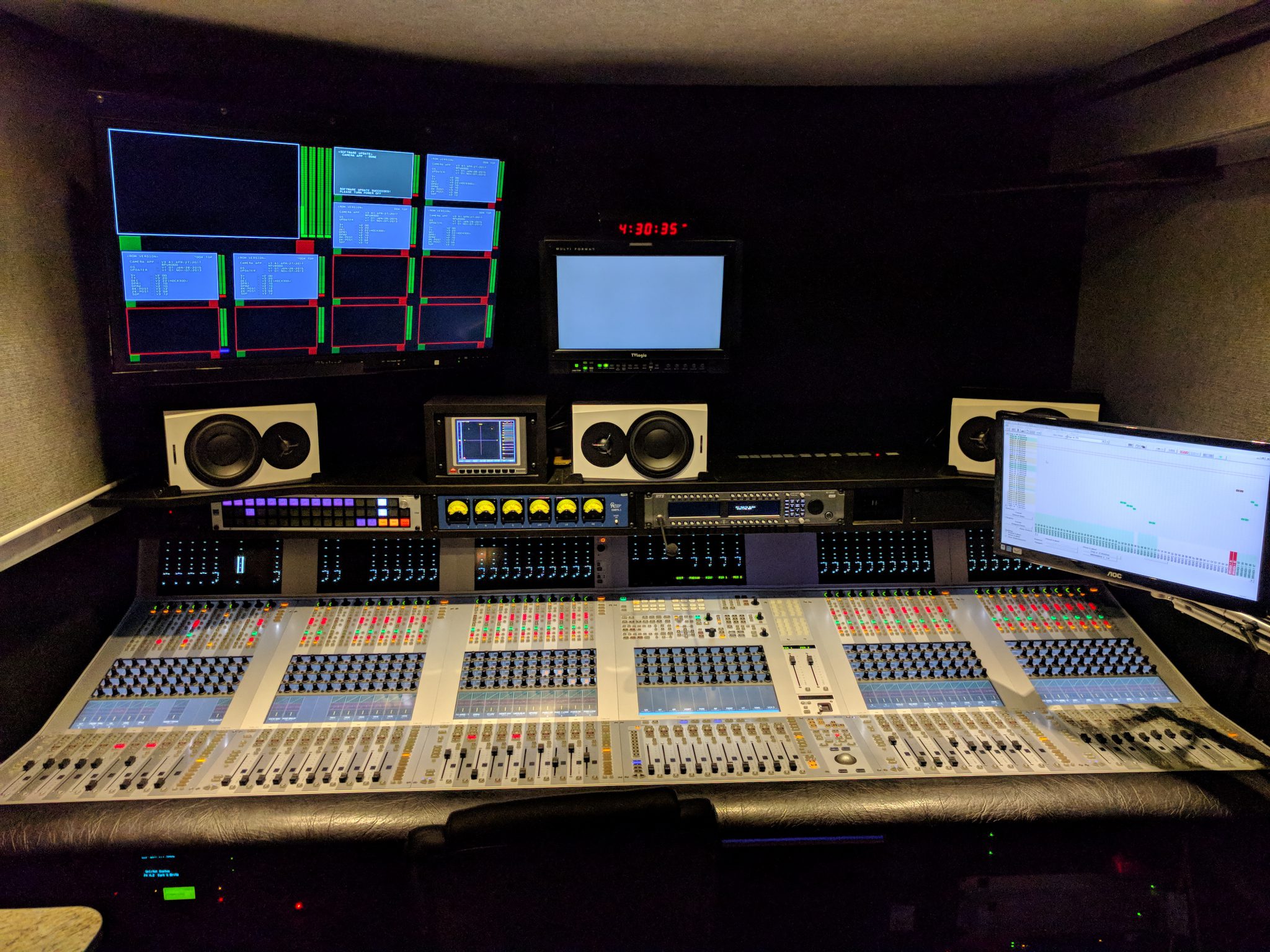

AUDIO:

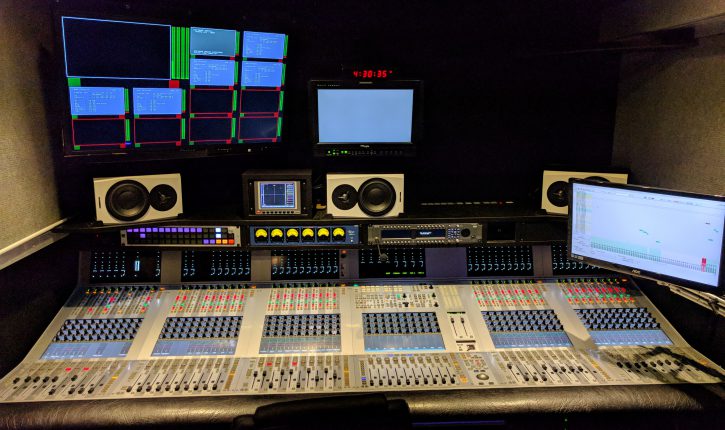

  • Studer Vista 8 W/ 62 Faders on the Surface
  • Studer Stage Boxes W/ SMPTE Fiber (Optional)
  • 64 channels of DANTE I/O
  • 4 Engine TC Electronics System 6000
  • Extensive MADI Routing
  • Capable of 2- 48X16 Studer Stage Boxes
  • 5.1 Audio Monitoring

Studer Vista 8

  • 2 Madi in
  • 2 Madi out
  • 1 Dante

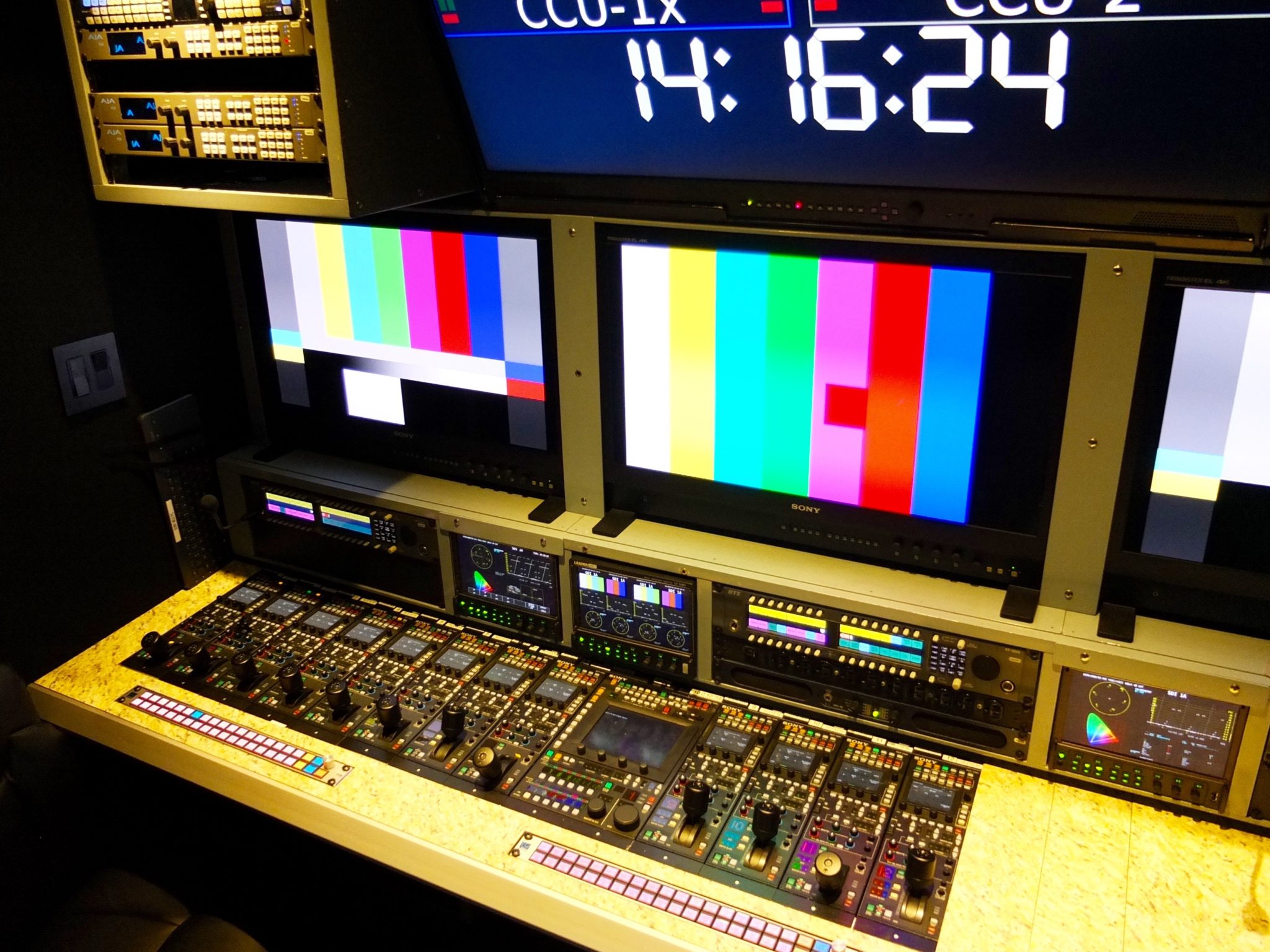

CAMERAS:

  • 12 Sony 4300-HDR/4K (Wired for 16)-+

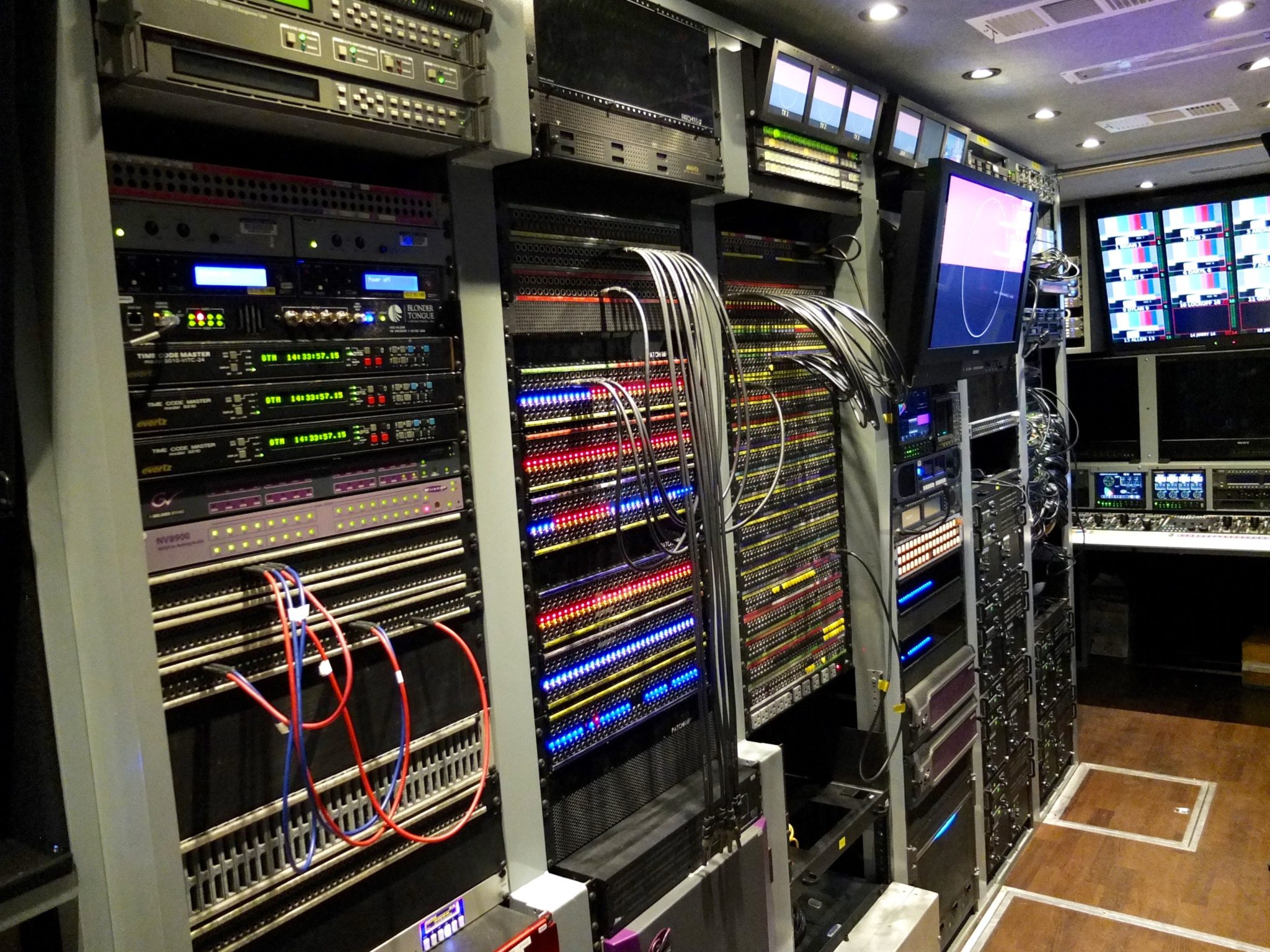

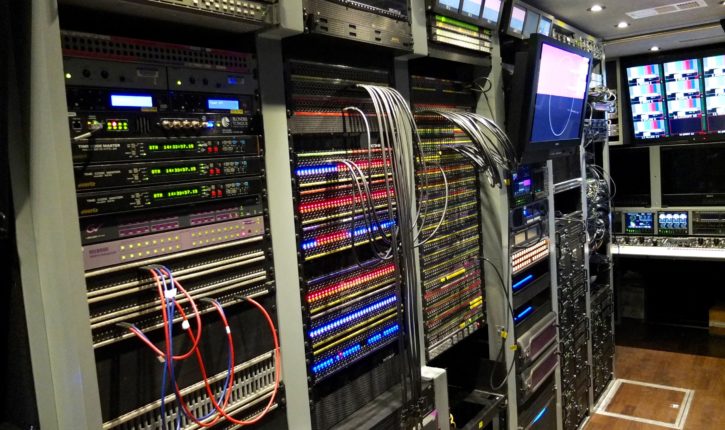

ROUTER:

  • 104 DeEmbedders, 272 Embedders, 16 XVPs. MADI 7 In-8 Out on Router;
  • 64X64 AES Router
  • 64×64 TC RTR

RECORD & PLAYBACK:

  • Up to 4 8-Channel EVS
  • 24 Channel Capable in HD
  • 24 channels of HD Rec
  • 6 channels of UHD Rec
  • 24 channels of server in HD
  • 8 channels of server in UHD

COMMUNICATIONS:

  • RTS Adam M OMNEO Intercom with 208 X 208 Ports
  • 8– RTS Tiff 4000s

GRAPHICS:

  • Wired for 4 CG Machines in HD or 2 CG Machines in UHD

POWER REQUIREMENTS:

  • A-Unit: 1 Service, 200 AMP, 3 Phase, 208 Volts
  • B-Unit: 1 Service, 60 AMP, Single Phase, 208 Volts (Only Required if Used for Production)

SPACE REQUIREMENTS:

  • A-Unit: (All Measurements Without Tractor)

55’9” Long x 13’6” High x 8’6” Wide– Closed (W/ the Longest Tractor Length is 77’4”)

60’6” Long x 13’6” High x 14’7” Wide– Expanded W/ AC Flaps Open & Stairs Parallel to Truck (Add 5 ft to Width if Stairs Perpendicular to Curb)

  • B-Unit: (All Measurements Without Tractor)

51’7” Long x 13’6” High x 8’6” Wide– Closed

59’3” Long x 13’6” High x 8’6” Wide– W/ Liftgate Down & Side Door Closed



Mobile unit equipment list subject to change without notice. Additional equipment available. Please consult with your AMV Account Executive regarding availability and per-event specifications.

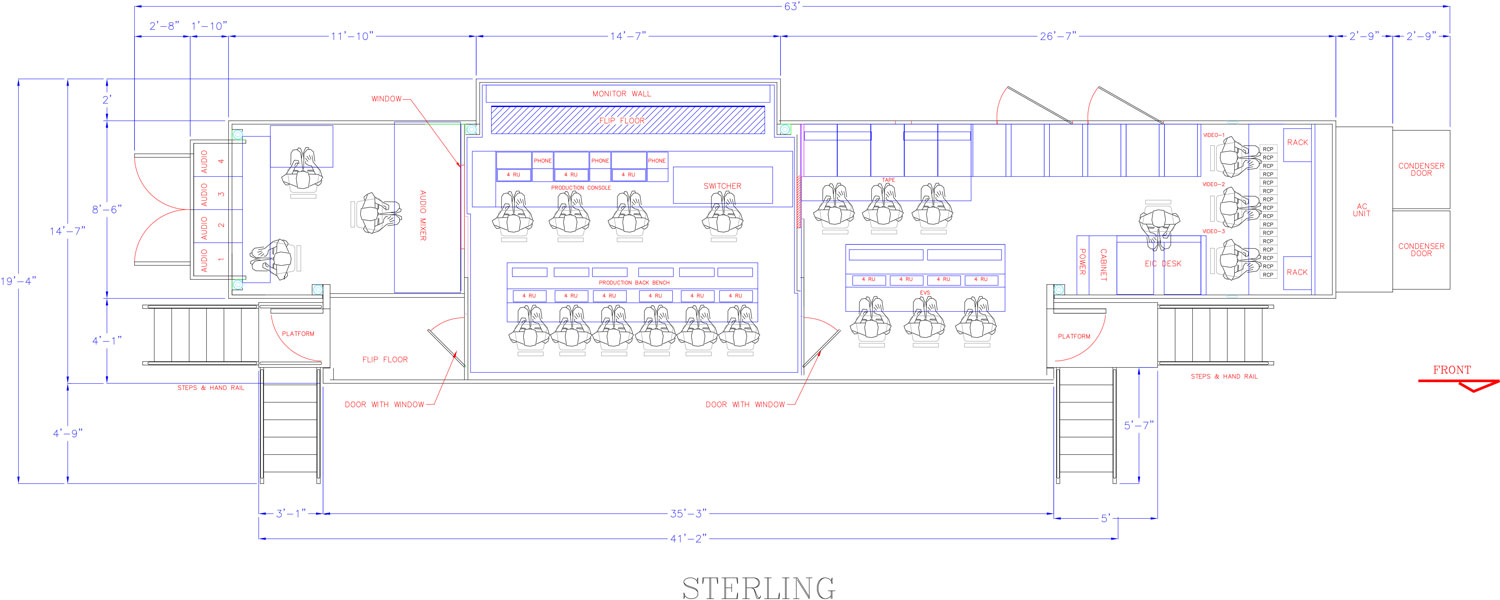

Sterling A Unit – View/Download PDF

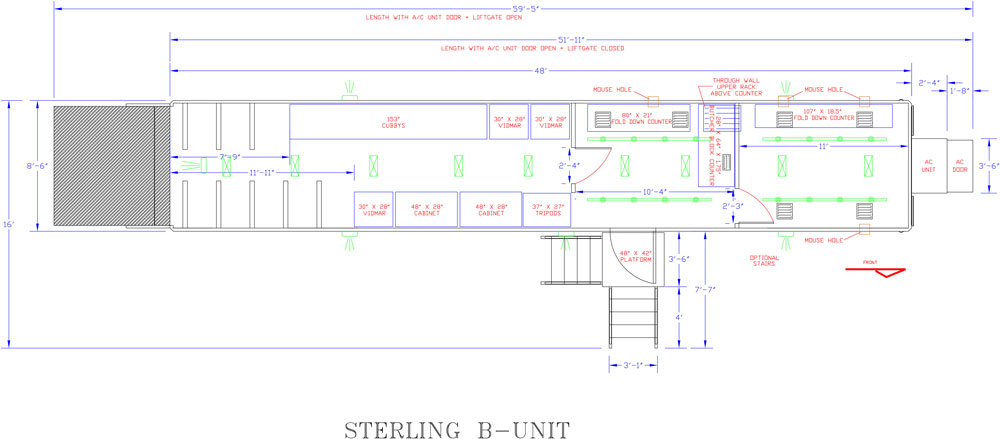

Sterling B Unit –
View/Download PDF

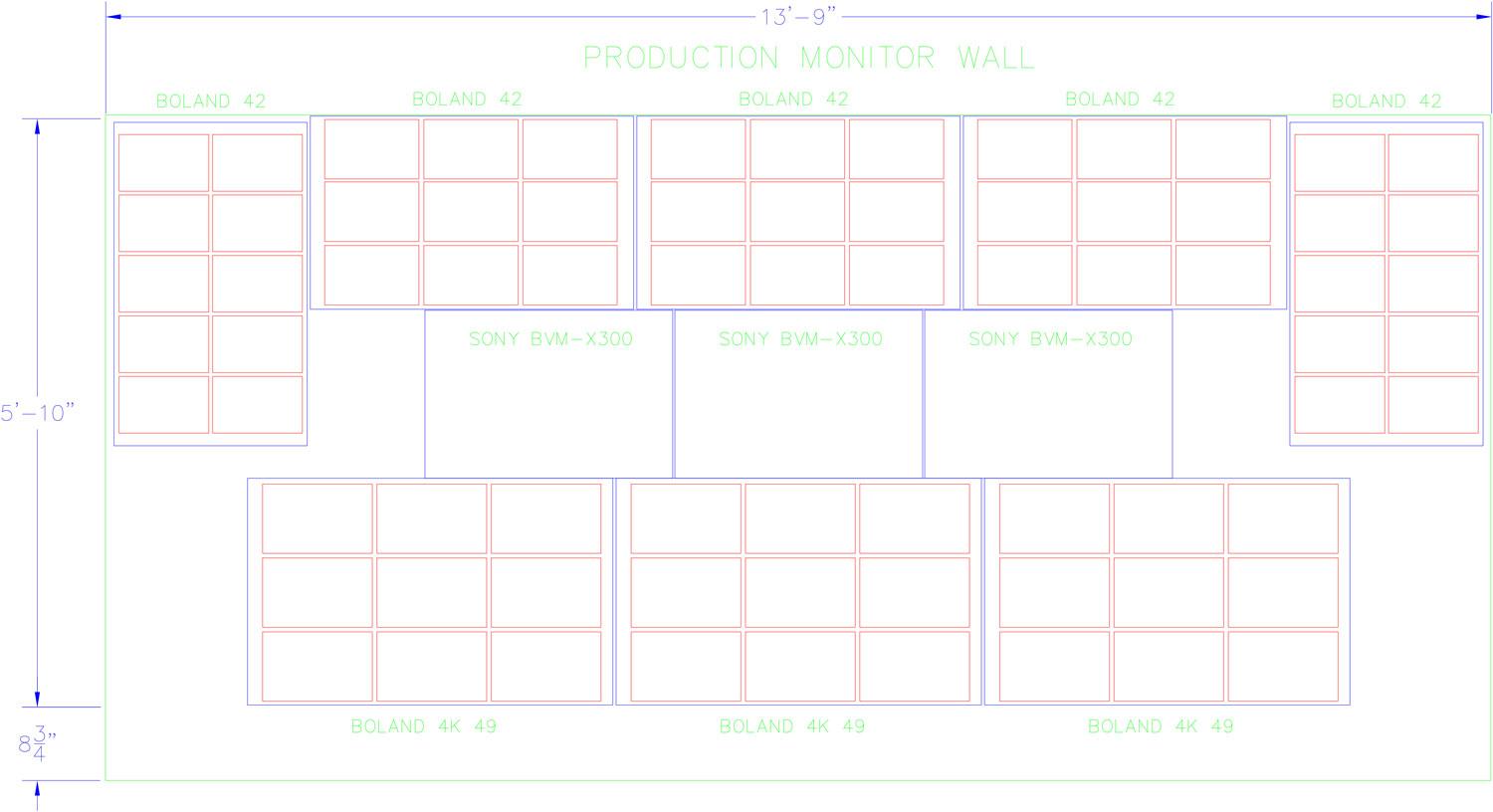

Sterling Monitor Wall – View/Download PDF
