Panasonic AWUE160 4K IP 2110 PTZ Camera

Model: AW-UE160

Brand: Panasonic

Contact
Contact

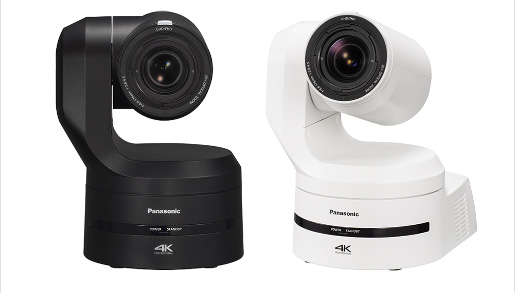

The AW-UE160 4K PTZ camera features a newly developed 4K 1” MOS sensor that offers the highest sensitivity of Panasonic’s entire PTZ lineup. Production teams shooting in a concert venue or a church can easily capture clear images even in the most challenging lighting conditions. Meanwhile, the UE160’s new optical low pass filter reduces the effect of moiré for clearer picture quality when shooting against an LED wall, which is especially important for rental and staging or worship environments. Its high-speed frame rate will help sports broadcasters capture slow motion shots in HD for replays, while seamless integration with the robotic camera system brings live broadcast-style movements to the PTZ, resulting in a dynamic and highly engaging video production.

HIGHLIGHTS:

  • Uncompromising shooting performance and operability
  • Optical low-pass filter significantly reduces moiré
  • Newly developed 4K Sensor offering superior sensitivity
  • Significantly improved Autofocus with advanced technology
  • SMPTE 2110 Support with purchase of additional software key

Product Website

SPECIFICATIONS:

ITEM AW-UE160
Current consumption 5.0 A (XLR IN connector), 1.5A (PoE++ power supply)
Power Requirements 12VDC±10%(10.8V to 13.2V)
Ambient Operating Temperature 0 °C to +40 °C (32 °F to +104 °F)
PoE++ IEEE802.3bt standard: DC 42V to 57V (Camera Input)
(Software authentication (LLDP) is supported)
Storage Temperature –20 °C to +50 °C (–4 °F to +122 °F)
Ambient Operating Humidity 20 % to 90 % (no condensation)
Mass Approx. 4.6kg (10.14lbs) (excluding mount bracket)
Finish AW-UE160W : Pearl White
AW-UE160K : Black
Controller Supported AW-RP150，AW-RP60，AK-HRP1010，AK-HRP1015，AK-HRP250
*Other ROP will be compatible in the future.
LENS Motorized Optical 20xZoom F2.8 to F4.5(f=8.8 mm to 176.0 mm,35mm equivalent:24.5 mm to 490.0 mm)i.Zoom, D.Extender
Imaging Sensors 1-type　(1″) 4K MOSx1
Effective Pixels: Approx. 9,620,000 pixels
Optical Filter Through、1/4, 1/16, 1/64 *equipped with Low pass filter(Through is used as “night mode”)
Focus Switching between auto and manual
Conversion Lens Not Supported
Angle of View Range Horizontal: 75.1°(wide) to 4.0°(tele)
Vertical: 46.7°(wide) to 2.3°(tele)
Diagonal: 82.8°(wide) to 4.6°(tele)
MINIMUM ILLUMINATION 2lx(F2.8, 59.94p, 50IRE, +42dB, without accumulation)
Focus Distance Entire zooming range: 1000 mm, Wide end: 100 mm
Standard Sensitivity F11/2,000lux (Normal), F14/2,000lux
Color Separation Optical Systems 1MOS
Horizontal Resolution 1,600 TV Typ (center area, UHD Mode, Wide)
Gain Selection Auto, 0dB to 36dB *1 dB step increments can be set.
Frame Mix Auto, 0dB, 6dB, 12dB, 18dB, 24dB*If format is set in 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/25p, it cannot be set.
Electronic Shutter Speed 60p/59.94p/59.94i:
1/100, 1/120, 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,00029.97p:
1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1,000, 1/1, 500, 1/2,00023.98p/24p:
1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,00050p/50i:
1/60, 1/100, 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,00025p:
1/48, 1/50, 1/60, 1/96, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1,500, 1/2,0059.94p･120fps:
1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,00050p･100fps:
1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000
Synchro scan 60p/59.94p/59.94i:60.00Hz to 7,200Hz
29.97p:30.00Hz to 7,200Hz
23.98p:24.00Hz to 7,200Hz
50p/50i:50.00Hz to 7,200Hz
25p:25.00Hz to 7,200Hz
59.94p･120fps:120Hz to 7,200Hz
50p･100fps:100Hz to 7,200Hz
WHITE BALANCE ATW､3200K, 5600K
ATW Speed : Normal / Slow / Fast
AWB-A､AWB-B
VAR (selectable between 2000 K and 15000 K by designating a value)
Gamma HD/NORMAL/CINEMA1/CINEMA2*HLG is set in other menuMASTER GAMMA (0.15~0.75)R GAMMA (-75~+75)B GAMMA (-75~+75)
Scene File Scene 1 to 8
Chroma Amount Variability OFF, -100% to 40%
Output Format (UHD/FHD SDI) 4K2160/59.94p, 2160/50p, 2160/29.97p(Native), 2160/25p(Native), 2160/24p(Native), 2160/23.98p(Native) HD1080/119.88p, 1080/100p, 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p(Native), 1080/25p(Native), 1080/24p(Native), 1080/23.98p(Native), 1080/59.94i, 1080/50i, 720/59.94p, 720/50p*1080/119.88p and 1080/100p use two 3G/SDI OUTPUT1/2 channels.*No output from 12G/SDI.
Output Format (HDMI) 4K
2160/59.94p, 2160/50p, 2160/29.97p(Native), 2160/25p(Native),
2160/24p(Native), 2160/23.98p(Native)HD
1080/119.88p, 1080/100p, 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p(Native),
1080/25p(Native), 1080/24p(Native), 1080/23.98p(Native),
720/59.94p, 720/50p
Output Format (Fiber(Only Video)) 4K
2160/59.94p, 2160/50p, 2160/29.97p(Native), 2160/25p(Native),
2160/24p(Native), 2160/23.98p(Native)HD
1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p(Native), 1080/25p(Native),
1080/24p(Native), 1080/23.98p(Native), 1080/59.94i, 1080/50i,
720/59.94p, 720/50p
Output Format (ST2110) HD
1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p(Native), 1080/25p(Native),
1080/24p(Native), 1080/23.98p(Native), 720/59.94p, 720/50p
HDMI HDMI 2.0 connector
4:2:2/10bit
HDCP is not supported.
Viera Link is not supported.
Synchronization System Internal/External synchronization (BBS/Tri-level sync)
INPUT DC 12 V IN, G/L IN(BNC)
G/L IN BBS (Black Burst Sync), tri-level sync supported)
OUTPUT –
AUDIO INPUT 1/2 XLR(2ch) or MIC/LINE Input compatibles /HDMI /IP)AAC compatibility (compatible with IP only)XLR3 female balanced input 2chDuring MIC inputInput level: -50dBu or -60dBu/-40dBu(0 dB=1 V/Pa, 1 kHz)Phantom power compatible､Supply voltage:47 V±2 VInput impedance:Approx. 10kΩDuring LINE inputInput level :0 dBu ( or +4dBu/-20dBu)Input impedance:Approx. 10kΩInput volume variable range: -40 dB ~0dB~+20 dB(1 dBstep)Embedded audio output level:-12 dBFS/-18dBFS/-20dBFS Sampling frequency:48 kHz Quantization bit rate : 24 bit(SDI, HDMI), 16bit(IP)
12G SDI OUT SMPTE2082-1, SMPTE424M /SMPTE292M / 75 Ω(BNC×1)
*Level-A/Level-B supported
3G SDI OUT1 SMPTE424M /SMPTE292M / 75 Ω(BNC×1)　*Level-A/Level-B supported
3G SDI OUT2/PM SMPTE424M /SMPTE292M / 75 Ω(BNC×1)　*Level-A/Level-B supported
SFP+ SFP+ standard (Single Fiber)
*This unit does not support input by optical signals
LAN LAN connector for IP control (RJ-45)
USB USB3.0 HOST(5G mobile router with USB tethering support)
RS-422 CONTROL IN RS422A (RJ-45)
INPUT/OUTPUT –
SFP+ (ST2110) ST2110-10/-20/-21/-30
IP connecting cable if you have PoE++ ethernet hub
LAN cable *1( category 5e or above､straight cable)Max100 m
If you don’t have PoE++ ethernet hub
LAN cable *1( category 5e or above､straight cable)Max100 m
*1 STP(Shielded Twisted Pair) is recommended
*2 Category 6 or above is used for 4K video transmission.
SFP+(ST2110) compatible protocol:
-ST2110-10/-20/-21/-30
-PTP ST2059-2
-NMOS IS-04/IS-05
output number:video x3(Full, Crop, Monitor), Audio x2
Input number:video x1(RETURN)
Video format:FHD　*Same as system format
Pan-tilt Head Control –
AW protocol connecting cable LAN cable* (category 5e or above, straight cable) Max1000 m
*STP (Shielded Twisted Pair) is recommended
Pan/Tilt Operation Speed Speed range:0.08 °/s ~1800°/s( Normal mode) *3 speed modes installed
Normal:~60°/s,Fast1:~90°/s,Fast2:~180°/s
Quietness NC35 or less *When standing still, NC25 or less
Tilting Range -30°~ 210
Panning range ±175°
Pan-tilt Head Unit –
Installation Method Stand-alone (Desktop) or suspended (Hanging)
Windows Windows®10
Microsoft Edge
Google Chrome
Supported operating systems and web browsers –
Image Resolution 3840×2160, 1920×1080, 1280×720, 640×360
Mac macOS 10.13 / Safari 13
macOS 10.14 / Safari 13
macOS 10.15 / Safari 13
macOS 10.15 / Google Chrome
Android Android OS
Google Chrome
IP Streaming –
Image Streaming Mode JPEG(MJPEG), H.264, H.265, NDI|HX Ver2, High Bandwidth NDI
Image Transmission setting (JPEG) Frame rate : Max 30fps
*No bit rate specified
*JPEG and H.264, JPEG and H.265 simultaneous operation depends on bit rate
Image quality(Fine/Normal)
Image Transmission Setting (H.264) Transmission Type : Unicast port (AUTO)
Unicast port (MANUAL)
Multicast port
Transmission mode :CBR, VBR
Frame Rate
[60Hz]
5fps/15fps/30fps/60fps (UHD : 30fps,60fps)
[50Hz]
5fps/12.5fps/25fps/50fps (UHD : 25fps,50fps)
Max to Min Bit Rate
2048kbps/4096kbps/8192kbps/10240kbps/12288kbps/14336kbps/20480kbps/24576kbps/51200kbps/76800kbps
iPhone / iPad / iPod touch iOS, Safari, iPadOS
Image Transmission Setting (H.265) Transmission Type : Unicast port (AUTO)
Unicast port (MANUAL)
Multicast port
Transmission Mode :CBR,VBR
Frame Rate
[60Hz]
30fps / 60fps
[50Hz]
25fps / 25fps
Max to Min Bit Rate
2048kbps/4096kbps/8192kbps/10240kbps/12288kbps/14336kbps/20480kbps/24576kbps/51200kbps/76800kbps
Supported protocol Network Protocol:
ICMP, ARP, GARP, MLD
Transmission Protocol:
TCP/IP, UDP/IP
Application Protocol:
IPv4 : HTTP, HTTPS, DNS, NTP, DHCPv6,MDNS, SNMP, 802.1X
IPv6 : HTTP, HTTPS, DNS, NTP, DHCPv4, MDNS, SNMP, 802.1X
Video Streaming Protocol:
RTP/RTCP over RTSP, RTMP, RTMPS, SRT, MPEG2-TS over UDP,
NDI|HX version 2, High bandwidth NDI
External Device Cooperation Protocol:FreeD, TSL5.0, SNMP
Audio Compression Type AAC-LC, 48kHz/16bit/2ch
Output Format Video Format(Full x1, MONI x1.Crop x1, all of these same format)1080/60p(Just), 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p(Native)25p(Native), 1080/24p(Just), 1080/23.98p(Native), 720/59.94p, 50pAudio Specification MIC1/2PCM/48khz/24bit/1ch x2
NDI (High Bandwidth NDI,NDI|HX Ver.2) –
Output Format (High bandwidth NDI) 4K
2160/59.94p, 2160/50p, 2160/29.97p, 2160/25p, 2160/24p, 2160/23.98p
HD
1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p､720/59.94p, 720/50p
Image Resolution (NDI|HX Ver.2) 1920×1080, 1280×720
Image Streaming Setting High Bandwidth NDI
Transmisiion Type : TCP /UDP
Unicast/Multicast
Bit Rate : Max 250MbpsNDI|HX version.2:
Transmission Type : TCP/UDP
Unicast/Multicast
Frame Rate
[60Hz]
5fps/15fps/30fps/60fps
[50Hz]
5fps/12.5fps/25fps/50fps
Max Bit Rate
512kbps/768kbps/1024kbps/1536kbps/2048kbps/3072kbps/
4096kbps/6144kbps/8192kbps/10240kbps/12288kbps/14336kbps/
16384kbps/20480kbps/24576kbps
Audio Compression Type 2 High Bandwidth NDI:AAC, 48kHz, 2ch
NDI|HX Ver.2:AAC-LC, 48kHz/16bit/2ch
ST2110 –
Number of Output (TX) Video:3 line (Full x1, MONI x1.Crop x1)
Audio:2 line
Auxiliary data:No output
Number of Input (RX) Video:1 line(RETURN) *Out from 3G SDI OUT2(Video is changed in the OSD menu)
Audio:No input
Auxiliary data:No input
Optional Accessories –
Cropping Select from 3 types of images from 3G/SDI_OUTPUT2, Crop_Zoom available
Image Stabilization OIS 2-axis + Hybrid method of roll direction correction
MENU switching :select between OFF/OIS/Hybrid(Stable)/Hybrid(Pan/Tilt)
Power LED ON/OFF control
Tripod Screw Penetration Measures Yes
Privacy Mode The lens surface faces downward when standing by (ON/OFF)
Input Format Video Format (Full x1, MONI x1.Crop x1, all of these same format)1080/60p(Just), 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p(Native)25p(Native), 1080/24p(Just), 1080/23.98p(Native), 720/59.94p, 50p
New Feature –
HDR/SDR HLG/BT.2020 compatible, SDR/BT.709 compatible
F Number Display Displayed on the AW-RP150 and AW-RP60 sides
NDI AW-UE160:High Bandwidth NDI, NDI|HX Ver.2 included as standard
IP menu display supported　*Non-synchronous with SDI-OUT
VR (FreeD) (IP/RS422) supported
Yellow Tally supported
PTP supported
5G/WiFi 6 Compatible with recommended products only
WFM display Output with video superimposed from 3G/SDI_OUTPUT2
Return Video Output Output return video input from ST2110, NDI via SDI_OUT2
Horizontal Level Gauge ON/OFF control  in OSD MENU
Wireless Remote Controller AW-RM50AG（Size “AA” dry battery x 2, obtained separately）
Dimensions (W x H x D) 213.0 mm x 277.0 mm x 240.0 mm(8.39inches x 10.91inches x 9.45inches)
[excluding protrusions, cable cover, ceiling mount bracket]
Supported Format ST2110:10/20/21/30
PTP:ST2059-2
NMOS:IS-04/IS-05
