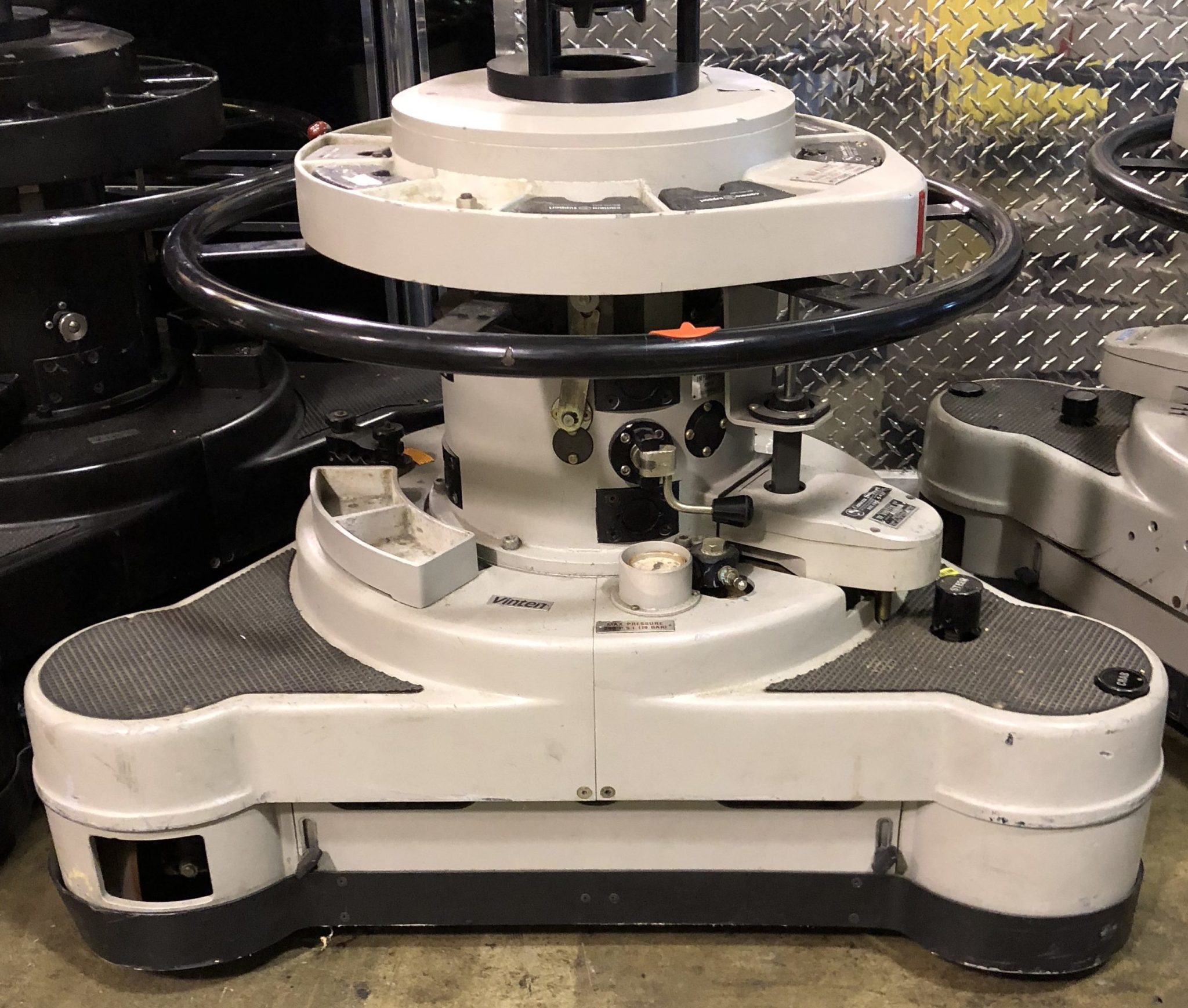

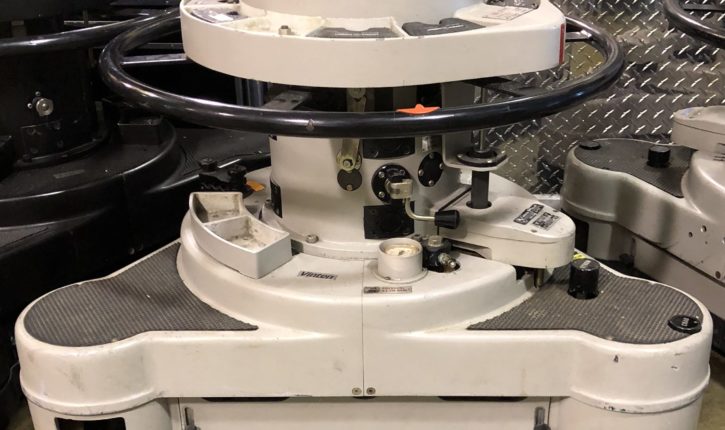

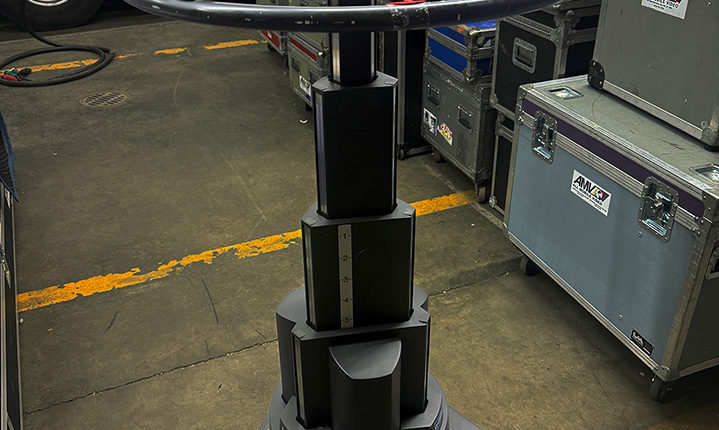

All Mobile Video offers a comprehensive inventory of camera pedestals including Vinten’s Fulmar, Quattro (both “L” studio as well as “OBL” field versions), Vinten Osprey Elite, Sachtler 2-75 Vario and 1-90 Vario pedestals.

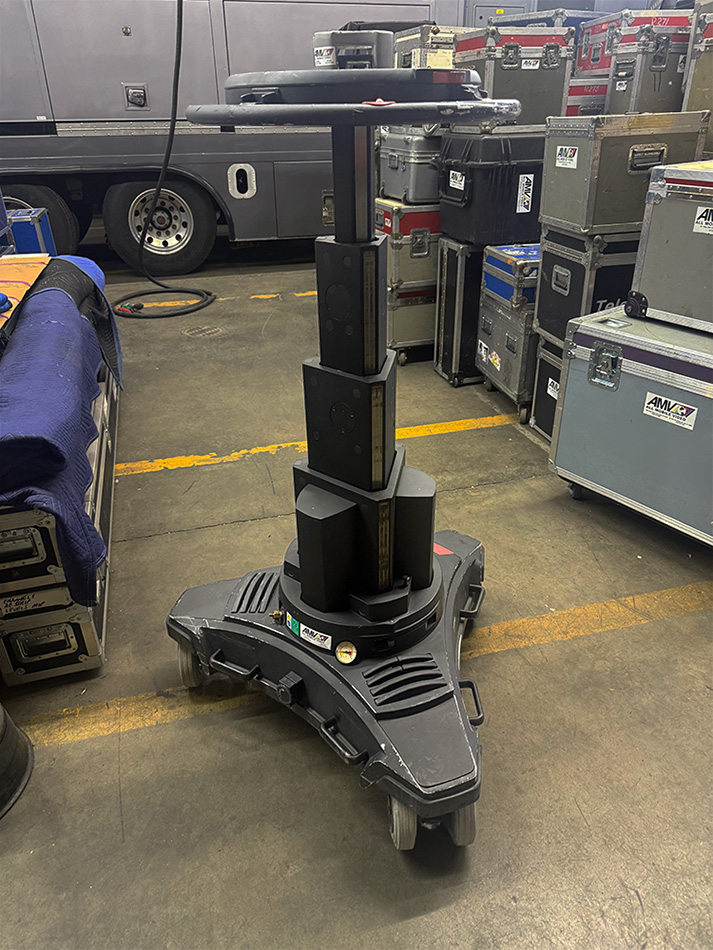

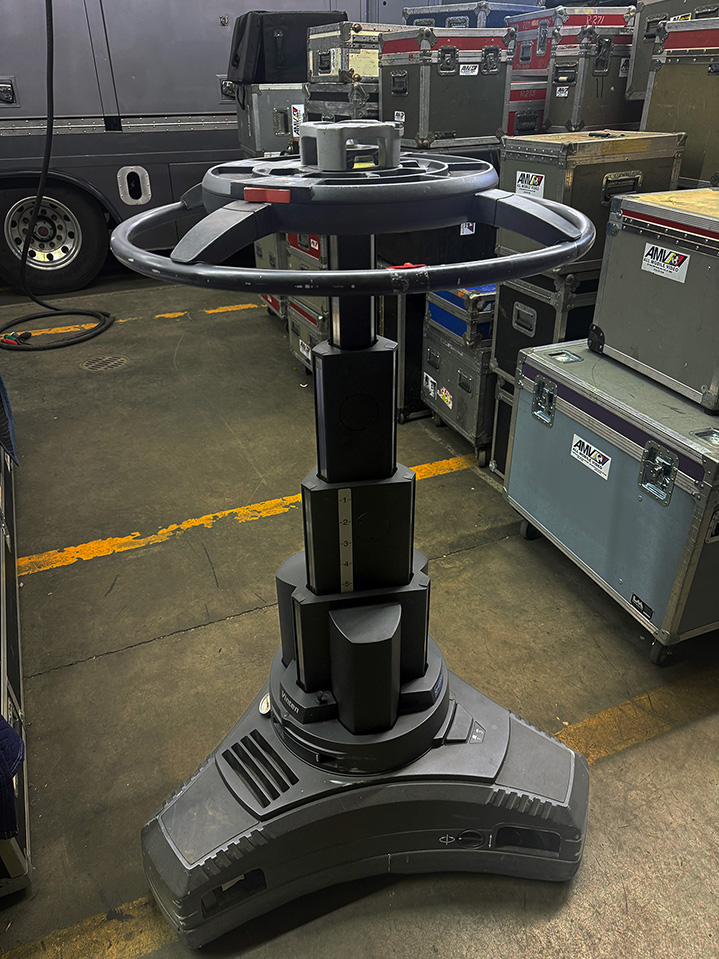

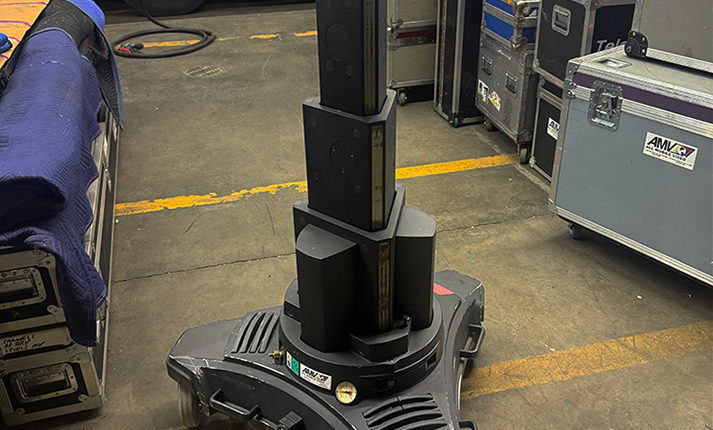

Studio pedestals (e.g.: Vinten’s Fulmar and Quattro-L) typically have harder wheels (appropriate for smooth studio floors) and cable skirts which surround the entire pedestal base. Field, or “OB” pedestals typically have softer wheels and adjustable cable skirts for each set of wheels.

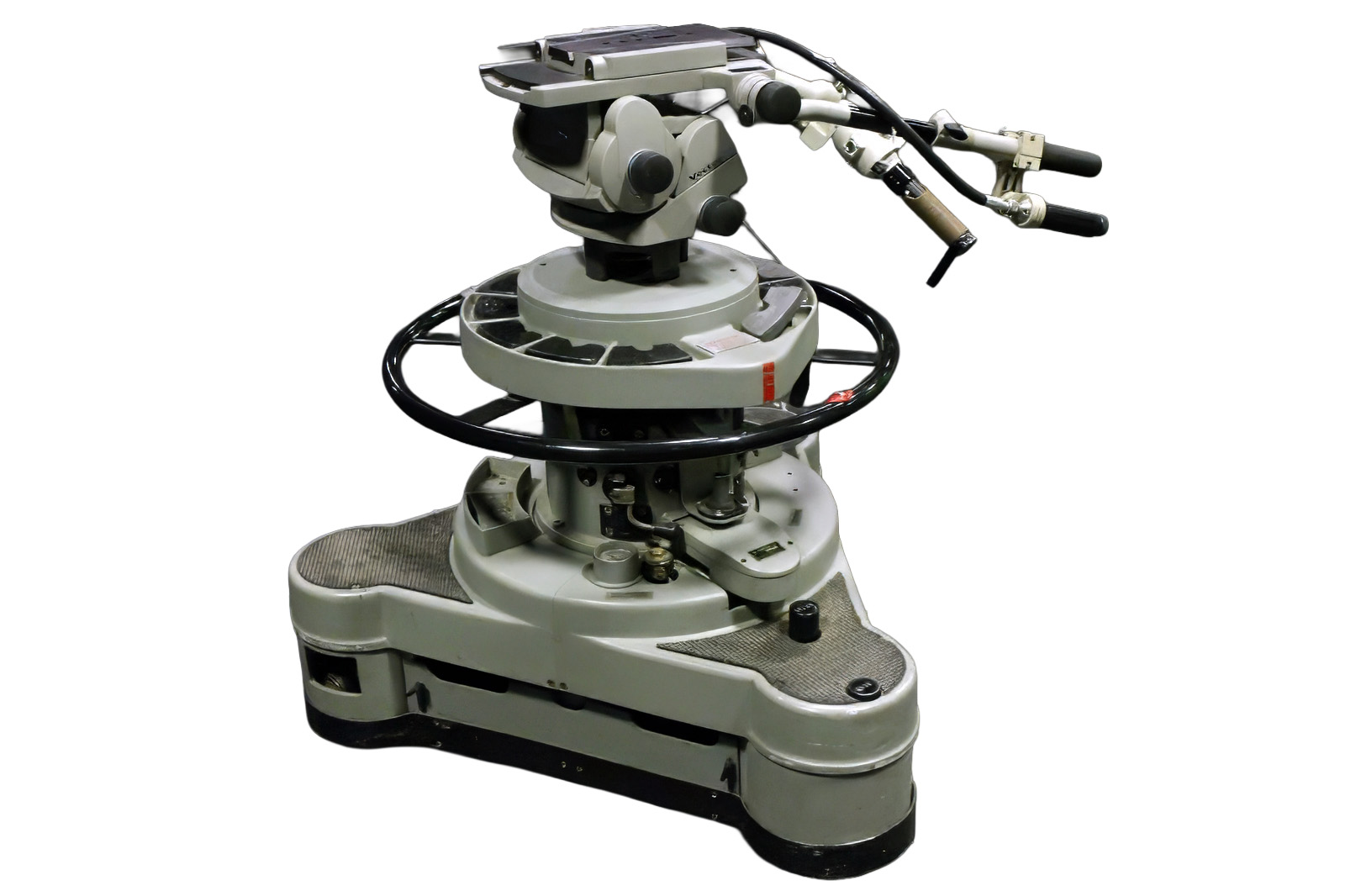

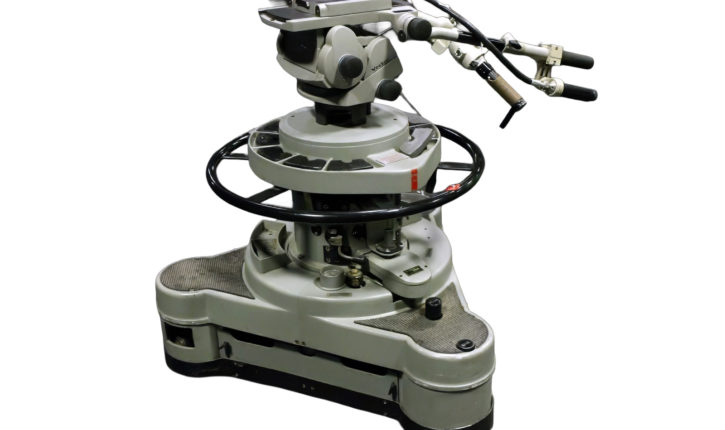

For “hard cameras” (systems expander or larger body cameras with box lenses) Vinten’s Fulmar or Quattro are recommended, especially if accessories such as prompter, PGM or vanity monitors are being used.

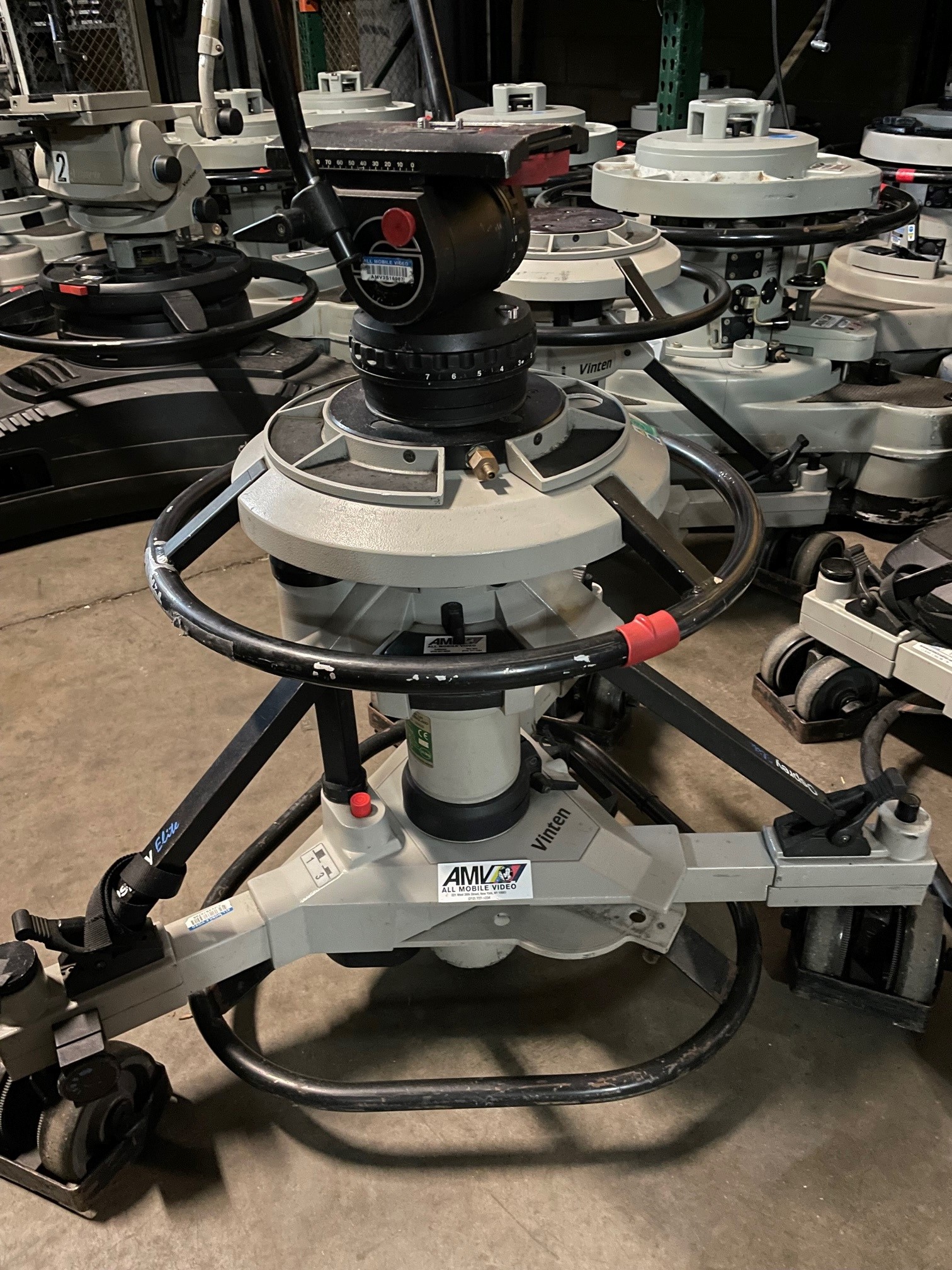

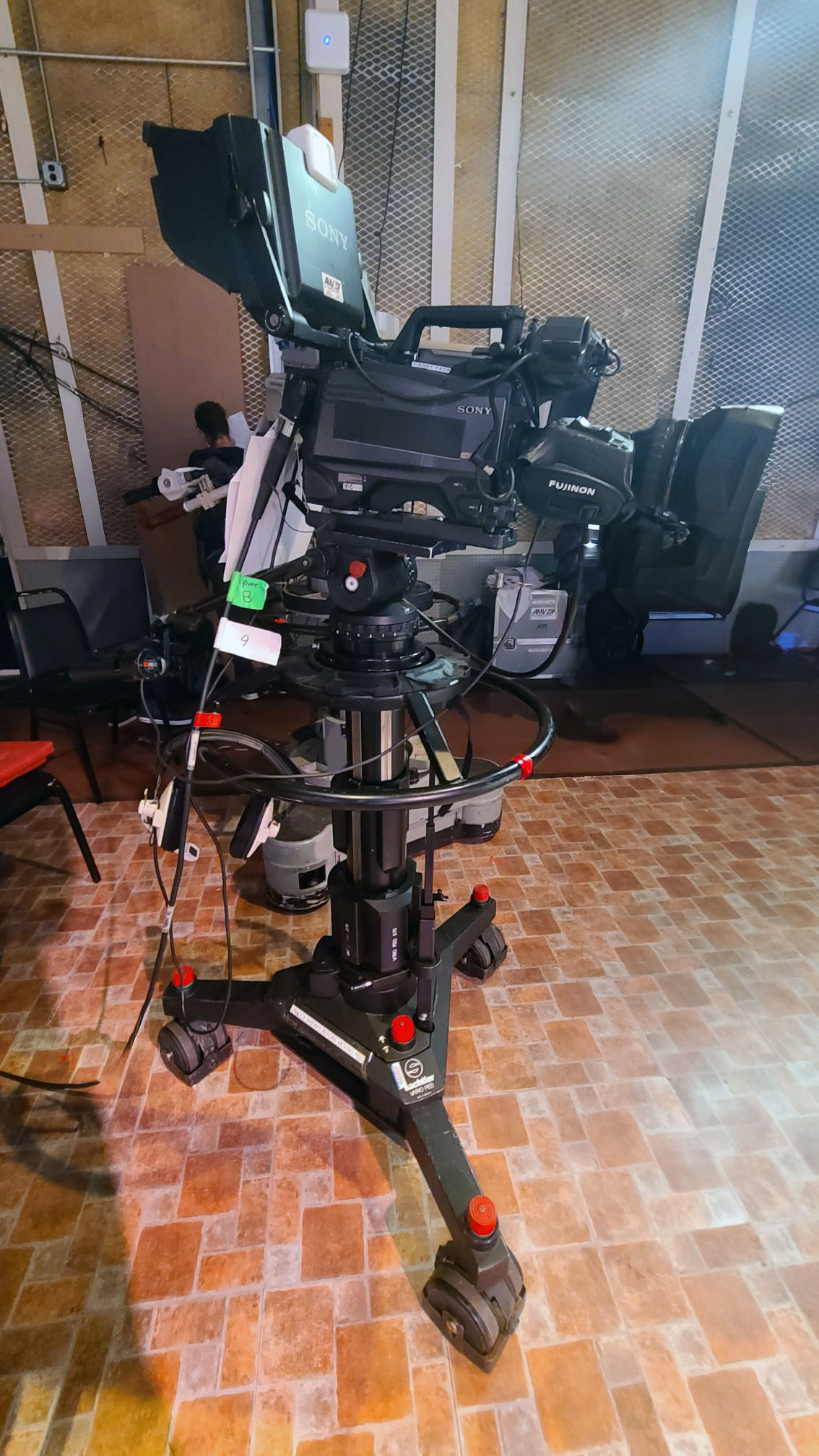

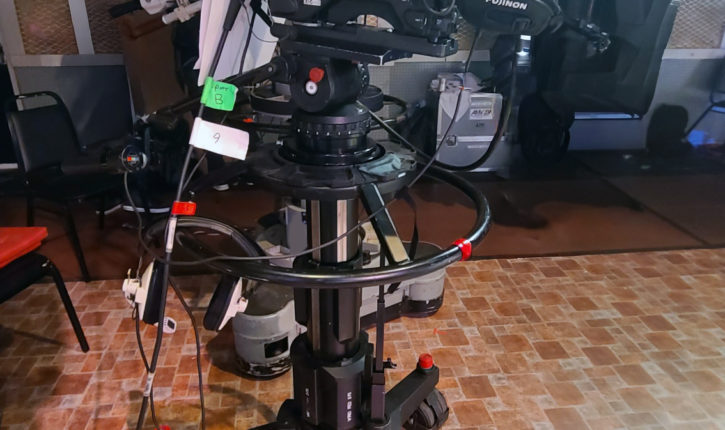

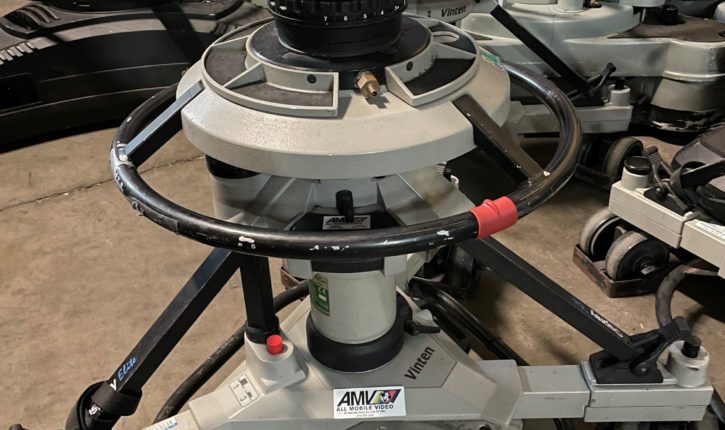

For “mini cameras” (smaller body cameras with ENG form-factor lenses) Vinten’s Osprey Elite or Sachtler Varios (2-75 or 1-90) are typically sufficient, especially were a lighter weight, more portable pedestal is needed.
A comparison chart detailing various specifications may be found on the next tab.
AMV also offers fluid pan heads, air pumps, nitrogen tanks, regulators, U-channel skateboard wheels and other accessories, optionally.
| | Fulmar | Quattro-L | Quattro-OBL |
| Studio | Studio | OB |
| Mass | 383 lbs | 348.4 lbs | 255.8 lbs |
| Recommended gas | Nitrogen | Nitrogen | Nitrogen |
| Maximum pressure | 19.3 bar (280 psi) | | |
| Head mount | Mitchell or flat | Mitchell or flat | Mitchell or flat |
| Trim weights (total) | 16.5 lbs | 16.5 lbs | 16.5 lbs |
| Payload maximum | 350 lbs | 264.6 lbs | 220.5 lbs |
| Payload minimum | 50 lb | | |
| Maximum height | 59" | 58.2" | 59" |
| Minimum height | | 17.8" | 19.6" |
| On-shot stroke | 30" | 39.4" | 39.4" |
| Doorway tracking width | | 42.1" | 38.5" |
| Doorway transit width | 34" | 34.2" | 34.2" |
| Narrow doorway width | | | |
| Doorway width maximum | 39" | | |
| Wheel Diameter: | | 6.3" | 7.8" |
| Ground clearance | | 1.1" | 2" |
| Steering Ring Diameter: | | 29" | 23.2" |
| | Osprey Elite | Vario 2-75 | Vario 1-90 |
| OB 2-stage | OB 2-stage | OB 1-stage |
| Mass | 107.4 lbs | 121 lbs | 118 lbs |
| Recommended gas | Nitrogen or air | Air | Air |
| Maximum pressure | 13.8 bar (200 psi) | | |
| Head mount | Mitchell or flat | Flat | Flat |
| Trim weights (total) | 7.5 lbs | | |
| Payload maximum | 165 lbs | 165 lbs | 198 lbs |
| Payload minimum | | | |
| Maximum height | 57.3" | 57" | 57" |
| Minimum height | 27" | 26" | 26" |
| On-shot stroke | 30.3" | 30" | 16" |
| Doorway tracking width | 38.2" | | |
| Doorway transit width | 31.5" | | |
| Narrow doorway width | 28.5" | | |
| Doorway width maximum | | | |
| Wheel Diameter: | 6.3" | | |
| Ground clearance | 1.2" | | |
| Steering Ring Diameter: | 21" | | |
