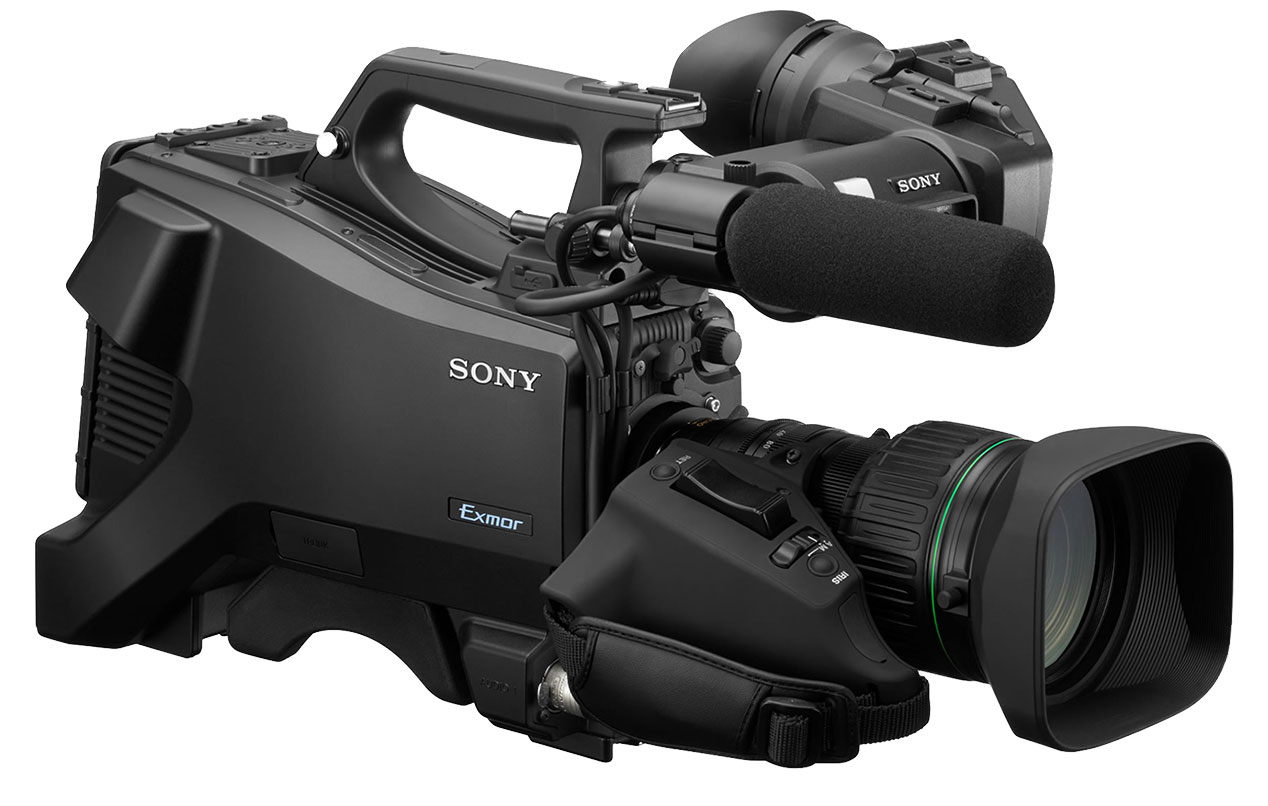

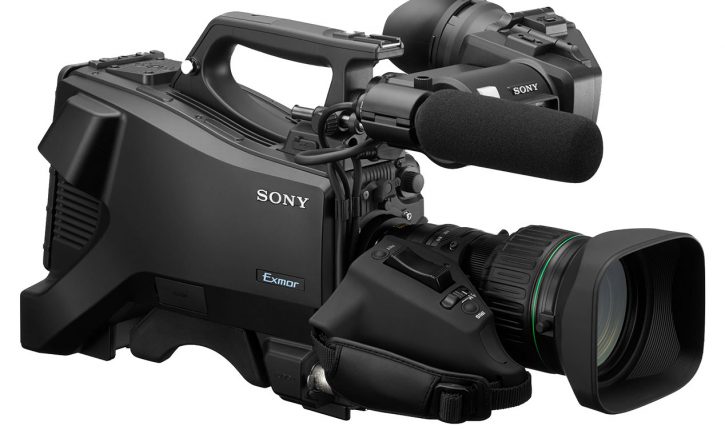

Sony HXCFB80

Model: HXCFB80

Brand: Sony

Contact
Contact

The HXC-FB80 is a cost-effective high-performance HD portable camera with three Sony 2/3-inch Exmor® CMOS sensors offering excellent sensitivity and full-HD picture quality. Built on a 3G-SDI platform, the HXC-FB80 is capable of 1080/50p, 59.94p signal processing while maintaining low power consumption

In combination with the HXCU-FB80N* 4K/HD Camera Control Unit, the HXC-FB80 offers future-proof expandability including 4K upscale and HD HDR support (HLG, Hybrid Log-Gamma)**. The HXC-FB80 is compatible with the optional HZC-RCP5 PC-based Remote Control Panel which allows for flexibility in system operation.

* HXC-FB80 camera comes standard with a Neutrik connector interface. An optional Lemo conversion kit is available.

** Requires firmware upgrade planned to be available June 2018.



Highlights:

  • Three 2/3-inch Exmor® CMOS sensors for stunning full-HD picture quality
  • Outstanding sensitivity: F13 in 50Hz and F12 in 59.94 Hz at 1080 mode
  • 3G Camera System with 1080@59.94p/50p/23.98psf output
  • 4K Up-Scale Output at HXCU-FB80N CCU (Wide color Gamut BT.2020)
  • Multi-Camera Control (up to 24 cameras)
  • 4-position Servo ND filter
  • HD-HDR Output(HLG) at HXCU-FB80N* (HD/HDR Feature planned to be available June 2018 via free firmware upgrade.)
  • 12G-SDI and 4x 3G SDI output interfaces
  • HD Prompter in and HD Trunk out
  • HZC-RCP5 (PC-RCP) compatible for flexible operation using a RCP panel
Camera Specifications Detail:
Built-in-Filters CC: Electrical
ND: 1; CLEAR, 2; 1/4ND, 3; 1/16ND, 4; 1/64ND
Effective Picture Elements 1920 x 1080 (H x V)
Gain Selection -3, 0, 3, 6, 9, 12 dB
Horizontal Resolution 1,000 TV lines or higher
Lens Mount Sony 2/3-inch type bayonet mount
Modulation Depth HD : 45% or higher at 27.5 MHz (1080i)
Pickup Device 3-chip 2/3-inch type CMOS
S/N Ratio Typical 60dB *3 (1080/59.94i)
Sensitivity (2000 lx, 89.9% reflectance) F12 (59.94 Hz), F13 (50 Hz)
Shutter Speed 1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000 sec (59.94i mode)



General Specifications Detail:
Dimensions (W x H x D) (Body) 6 3/8 x 10 1/2 x 12 3/8 inches
(with Lens&VF) *2 11 5/8 x 17 1/8 x 22 1/2 inches
Operating Temperature 14°F to +113°F
Power Consumption Approx.19W (Camera body only)
Approx. 32W (Camera body with supplied viewfinder)
Recording Format -4°F to +140°F
Weight (Body) Approx. 7 lb 8 oz
(with Lens&VF) Approx. 14 lb 16 oz



Inputs and Outputs Specifications Detail:
Audio In Audio Input (CH1):
XLR type: 3-pin, female
MIC IN: -60dBu (Up to -20dBu can be set by using menu or HXCU-FB80), balanced
LINE IN: 0dBu, balanced
Audio Input (CH2):
XLR type: 3-pin, female
MIC IN: -60dBu (Up to -20dBu can be set by using menu or HXCU-FB80), balanced
LINE IN: 0dBu, balanced
DC In XLR-type 4-pin (x1), DC 10.5 V to 17 V
DC Out 4-pin (x1), DC 10.5 V to 17 V, 1.5 A (max.)
Earphone Stereo mini jack (x1)
Genlock In BNC (x1); Gen-Lock In or Prompter Out
HD-SDI Out (Dual Link) BNC (x1) SMPTE ST425-1/ST292-1/259M; 3G/HD-SDI or SD-SDI selectable
Lens 12-pin (x1)
Remote 8pin (x1)
SDI In BNC type (1) SMPTE ST292-1, for HD Prompter Out or HD Video Trunk In
Test Out TEST Out (Analog output with/without characters), or HD/SD Sync Out
USB USB 2.0 (x1)
