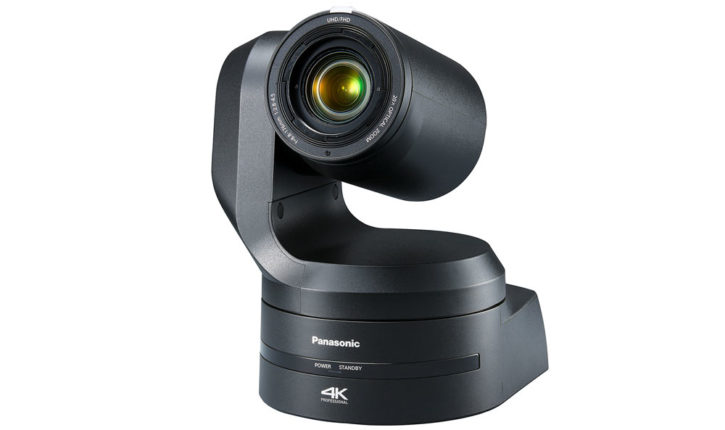

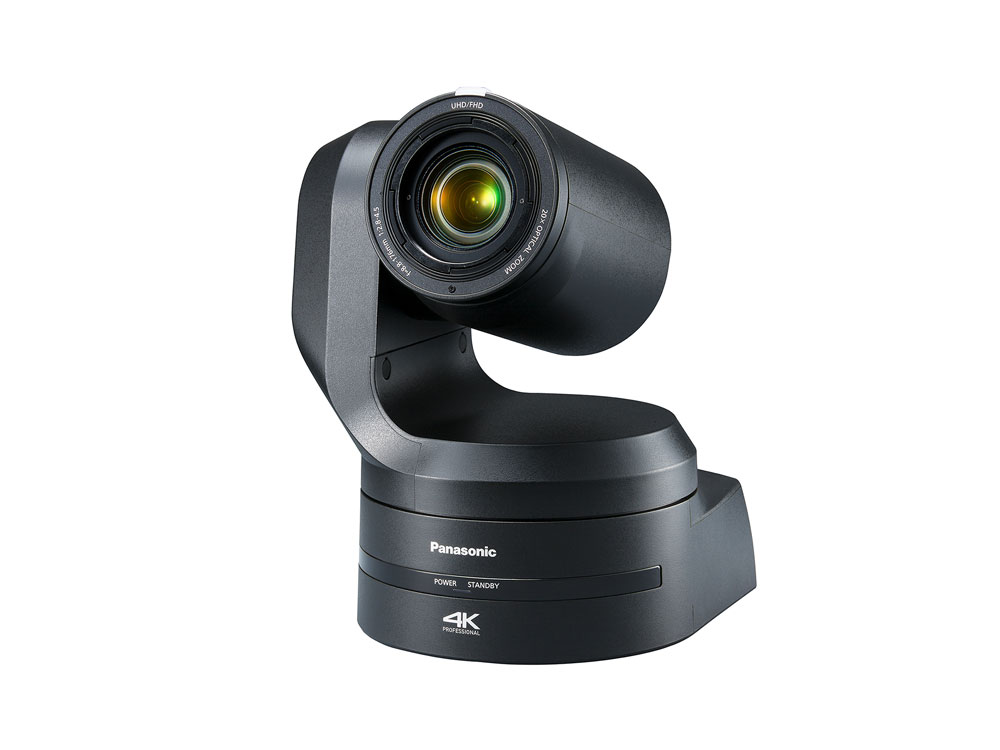

Panasonic AWUE150

Model: AWUE150

Brand: Panasonic

Contact

The newest addition to Panasonic’s comprehensive professional PTZ camera lineup, the AW-UE150 features a large 1″ MOS sensor, supports high-quality 4K/UHD 60p video output, features a 75.1-degree viewing angle, 20x optical zoom and supports versatile outputs, including 12G-SDI, HDMI, optical fiber and IP. The AW-UE150 is the ideal choice for taking your remote camera production to the next level.

KEY FEATURES

  • First UHD/4K 59.94p Integrated PTZ Camera
  • 75.1° horizontal viewing angle (widest in its class)
  • Various 4K interfaces (12G-SDI, HDMI, Optical Fiber, IP)
  • Optical 20x Zoom + iZoom
  • 4K/HD Simultaneous Output

SPECIFICATIONS:



General
Power Requirements Due to increased PRO PTZ camera installations utilizing existing PoE++ infrastructure, the AW-UE150 unit does not include a standard power supply. If the AW-UE150 will be installed in an area without PoE++, please utilize an IA-70a power supply. XLR 4-PIN: 12 V DC (10.8 V to 13.2 V) PoE++: IEEE 802.3bt (Type 4) Standard DC 42 V to 57 V (Camera Input)
PoE++ IEEE802.3bt standard: DC 42 V to 57 V (Camera Input)
Current consumption 4.0 A (XLR IN connector), 1.2 A (PoE++ power supply)
Ambient Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Ambient Operating Humidity 20 % to 90 % (no condensation)
Storage Temperature -20 °C to 50 °C (-4 °F to 122 °F)
Mass Approx. 4.2 kg (9.24 lb) (excluding mount bracket)
Dimensions (W x H x D) (mm) 213 mm x 267 mm x 219 mm
(excluding protrusions, direct ceiling mount bracket)
Dimensions (W x H x D) (inch) 8-3/8 inches x 10-1/2 inches x 8-5/8 inches
(excluding protrusions, direct ceiling mount bracket)
Finish AW-UE150WP/AW-UE150WE: Pearl white
AW-UE150KP/AW-UE150KE: Black
Controller supported*1 AW-RP150GJ
Camera Unit
Imaging Sensors 1-type 4K MOS×1
LENS * Motorized Optical 20x zoom, F2.8 to F4.5
[f=8.8 mm (11/32 inches) to 176.0 mm (6-15/16 inches); 35 mm (1-3/8 inches)
equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19-9/32 inches)]
Zoom ・Optical zoom: 20x
・i.Zoom: UHD 24x, FHD 32x
・Digital zoom: 10x
Conversion Lens Not supported
Angle of View Range Horizontal angle of view: 75.1° (wide) to 4.0° (tele)
Vertical angle of view: 46.7° (wide) to 2.3° (tele)
Diagonal angle of view: 82.8° (wide) to 4.6° (tele)
Optical Filter Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”)
Focus Switching between auto and manual
Focus Distance Entire zooming range: 1000 mm (3.3 ft)
Wide end: 100 mm (0.33 ft)
Color separation optical system 1MOS
Standard Sensitivity F9, 2000 lx (When normal mode is selected)
MINIMUM ILLUMINATION 2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation)
S/N 60 dB or more
Horizontal Resolution 1600 TV lines Typ (Center area)
Gain Selection Auto, 0 dB to 36 dB*2
Super Gain function equipped : +37 dB to 42 dB
Frame mix*3 0 dB, 6 dB, 12 dB, 18 dB, 24 dB
Electronic Shutter Speed 59.94p/59.94i
1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
29.97p 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
23.98p/24p
1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
50p/50i
1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
25p
1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Syncro Scan 59.94p/59.94i : 60.00 Hz to 7200 Hz
29.97p : 30.00 Hz to 7200 Hz
23.98p/24p : 24.00 Hz to 7200 Hz
50p/50i : 50.00 Hz to 7200 Hz
25p : 25.00 Hz to 7200 Hz
Gamma HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC / HLG
WHITE BALANCE ATW : 3200K, 5600K
ATW Speed : Normal / Slow / Fast
AWB : AWB-A / AWB-B
VAR (selectable between 2000K and 15000K by designating a value)
Chroma Amount Variability OFF, -99 % to 99 %
Scene File Scene1, Scene2, Scene3, Scene4
Output Format 4K
2160/59.94p, 2160/50p, 2160/29.97p*4, 2160/25p*4, 2160/24p*4, 2160/23.98p*4
HD
1080/59.94p, 1080/50p, 1080/29.97p*4, 1080/29.97PsF, 1080/25p*4, 1080/25PsF, 1080/23.98p*5, 1080/24p*4, 1080/23.98p*4, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
Synchronization System Internal / External synchronization (BBS / Tri-level sync)
INPUT
Input Connector DC 12 V IN, G/L IN (BNC)
・BBS (Black Burst Sync), tri-level sync supported
OUTPUT
VIDEO OUTPUT HDMI
HDMI 2.0 standard
4:2:2/10bit
・HDCP is not supported.
・Viera Link is not supported.
12G-SDI OUT
SMPTE 2082-1 standard / 75 Ω (BNC x 1)
3G-SDI OUT
SMPTE292 / 75 Ω (BNC x 1)
・Level-A/Level-B supported
MONI OUT
SMPTE292 / 75 Ω (BNC x 1)
Optical Fiber
SFP+ standard
Single Fiber
・The signal sent is the same as 12G-SDI OUT.
・This unit does not support input by optical signals.
INPUT/OUTPUT
Input / Output Connector LAN
LAN connector for IP control (RJ-45)
RS-422
CONTROL IN RS-422A (RJ-45)
MIC/LINE input
φ3.5 mm stereo mini jack
Input impedance: High impedance
・During MIC input
Supported mic: Stereo mic (plug-in power, on/off switching via menu)
Supply voltage: 2.5 V ± 0.5 V
Mic input sensitivity: Approx. -40 dBV ± 3 dBV
(0 dB=1 V/Pa, 1 kHz)
・During LINE input
Input level: Approx. -10 dBV ±3 dBV
Pan-tilt Head Unit
Camera/pan-tilt head control IP connecting cable
・LAN cable*6*7 : (category 5e or above, straight cable / crossover cable)
max. 100 m (328 ft)
AW protocol connecting cable
LAN cable*6 (category 5e or above, straight cable)
max. 1000 m (3280 ft)
Installation Method Stand-alone (Desktop) or suspended (Hanging)*8
Pan/Tilt Operation Speed Minimum speed 0.08°/s
Maximum speed 60°/s or higher*9
・Maximum speed is 180°/s in high-speed mode
Panning range ±175°
Tilting Range -30° to 210°*10
Quietness NC35 or less
Supported operating systems and web browsers*11
Supported operating systems and web browsers Windows
Microsoft(R) Windows(R) 7, 10
Windows(R) Internet Explorer(R) 11 (64-bit/32-bit)
Microsoft Edge
Google Chrome
Mac
Mac OS 10.13, Mac OS 10.12, Mac OS 10.11, Safari 11, Google Chrome
iPhone / iPad iOS 11.4.1
Google Chrome
IP Streaming
Image Streaming Mode JPEG (MJPEG), H.264, H.265
Image Resolution 3840×2160, 1920×1080, 1280×720, 640×360, 320×180
Image Transmission setting (JPEG) Frame Rate: Maximum 30 fps
Image quality (Fine / Normal)
Image Transmission Setting (H.264) ■Frame Rate
[60Hz]
5fps/15fps/30fps/60fps (UHD: 30fps, 60fps)
[50Hz]
5fps/12.5fps/25fps/50fps (UHD: 25fps, 50fps)
■Max Bit Rate
HD : 512kbps/768kbps/1024kbps/1536kbps/2048kbps/3072kbps/4096kbps/6144kbps/8192kbps/10240kbps/12288kbps/14336kbps/16384kbps/20480kbps/24576kbps/32768kbps/40960kbps/51200kbps/76800kbps
UHD : 12800kbps/25600kbps/51700kbps/76800kbps
Image Transmission Setting (H.265) ■Image Transmission Type:
Unicast port (AUTO)
Unicast port (MANUAL)
Multicast port
■Frame Rate
[60Hz] 30fps
[50Hz] 25fps
■Max Bit Rate
8192kbps/12800kbps/25600kbps/51200kbps/76800kbps
Audio Compression Type AAC-LC, 48 kHz / 16 bit / 2ch
Supported protocol ■IPv6 : TCP / IP, UDP / IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP, RTMP
■IPv4 : TCP / IP, UDP / IP, HTTP, HTTPS, RTSP, RTP / RTCP, DHCP, DNS, DDNS, NTP, UPnP, IGMP, ICMP, ARP, RTMP
Other Function
NDI support*12 NDI | HX
Tally LED display color red / green
Note *1: AW-RP50, AW-RP120G, AK-HRP1000GJ and AK-HRP1005GJ connection with the AW-UE150W/K is planned for future support. Contact your sales representative for further information on when support will be available for this feature. Use may require a software version update. *2: 1 dB step increments can be set. *3: This cannot be configured when the format is 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/23.98p(59.94i), 1080/29.97PsF, 1080/23.98PsF, 1080/25p, 1080/25PsF. *4: Native output. *5: It denotes “1080/23.98p over 59.94i”. *6: Use of an STP (shielded twisted pair) cable is recommended. *7: Category 6 or more is used when sending 4K images. *8: To ensure safety, the unit must be secured using the mount bracket supplied. *9: Quietness, stationary accuracy, etc., in high-speed mode may vary from normal mode. *10: Depending on the pan or tilt position, the camera may be reflected in the image. *11: Supported OS indicated are for browsers current as of October 2018. See Service and Support on the Panasonic website (https://pro-av.panasonic.net/en/) for the latest information on browser support. *12: Contact your local Panasonic vendor for further information.

*Native output.

** Specifications are subject to change without notice.
