Autopod

Model: Autopod Elevation Unit

Brand: POLECAM

Contact

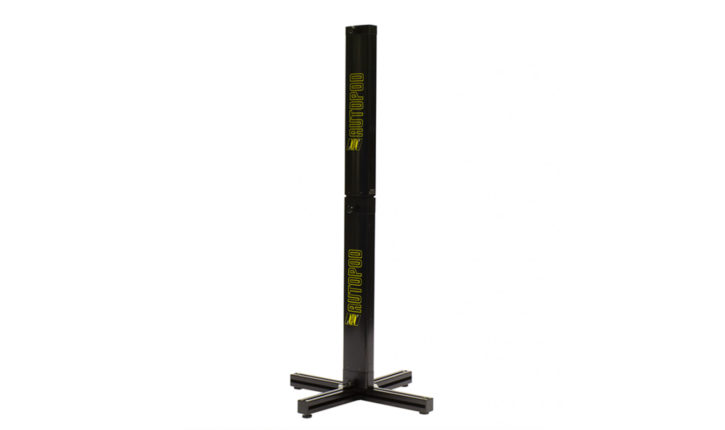

The NEW Autopod V2 is a continuation of the Polecam ethos of providing a “platform” which is a remotely operated programmable telescopic elevation unit for use with Rigs, Cranes, PTZ, Remote heads, Cameras, Teleprompters, Speakers and more….

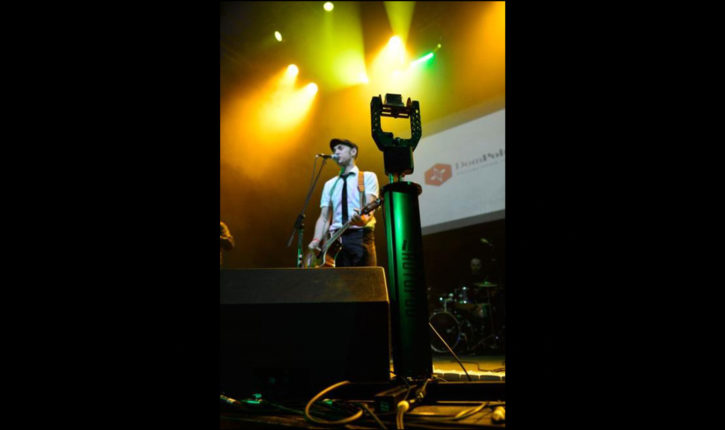

The double unit with a lifting capacity of 25kg (55lbs) over a range from 110cm to 250cm (43” to 98”) operates simultaneously and can be used as a standalone system on a stage, in a studio, behind a goal, conference venue, or remote location such as a golf course to provide an unobtrusive camera position – great for the spectators whilst not interfering with the artistes, players action, presenters or the sequence being shot.

The double elevation system is supplied with its own lightweight adjustable base ensuring ease of deployment in many situations and applications. New to the system is the “V” quick connect mounts which also incorporate the newly introduced robust XLR sockets for power and data connections

Mounting a camera securely is achieved using the included 1/4” captive camera screw in the new “V” connect mounting top plate; or using the optional “T” bar, ideal for mounting multiple PTZ’s for both forward and backward facing

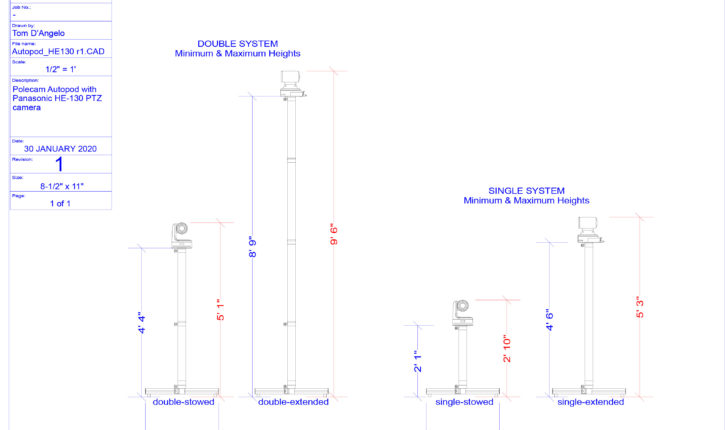

In addition, it is strongly recommended that the circular heavy duty wheeled steel base (Part #ATP-150) is used for additional stability. It is possible to use just one elevation unit; this lowers the operational height to just 55cm, extending to 125cm (21” to 49”) with an improved payload of 35kg (77lbs).



Autopods used to create vertical pedestalling motion with PTZ cameras at the 2020 NYC State of the City Address

Key Features

  • Elevation range 110cm to 250cm
  • Payloads up to 25kg
  • Soft starts and stops
  • Programmable positioning x3
  • “V” quick connect plates inc XLR’s In additon, it is strongly recommended that the circular heavy duty wheeled steel base (Part #ATP-150) is used for additional stability. It is possible to use just one elevation unit; this lowers the operational height to just 55cm, extending to 125cm (21” to 49”) with an improved payload of 35kg (77lbs) Issue V1 08.05.19
  • Remotes via foot pedal and or hand controller
  • Powered by Mains or 24vdc
  • Modular and stackable x2
  • Quiet operation

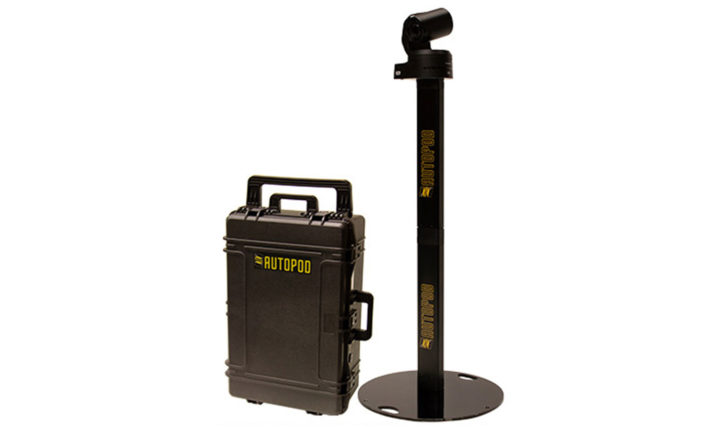

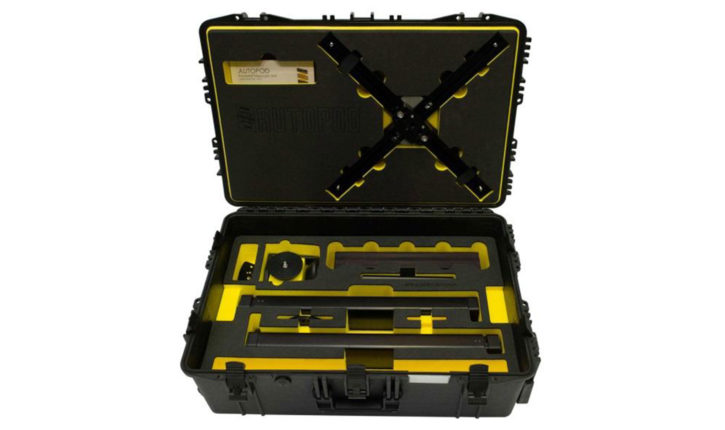

  • Packs in to a roll-along case 82 x 56 x 33cm @ 38kg

Technical Data Sheet – View / Download PDF
Manual – View / Download PDF
Spec Drawing – View / Download PDF
