All Mobile Video’s HD & UHD Video carrypack systems offer quick, efficient and cost-effective solutions for multi-camera production either not requiring a production truck, or occurring in locations which would make a truck logistically difficult.

AMV’s system can accommodate various camera and recorder makes, models and configurations, including:

Sony HDC-F5500 S35mm large sensor, UHD or HD
Sony HDC-4300 2/3″ sensor, UHD or HD
Sony HDC-2500 2/3″ sensor, HD
Sony Venice 2 or PMWF55 (either with full CCU control), S35mm large sensors, UHD or HD
Aja KiPro or Cinedeck recorders

See Spec Sheet tab for further details

Many systems with varying capability are available. The system shown offers:

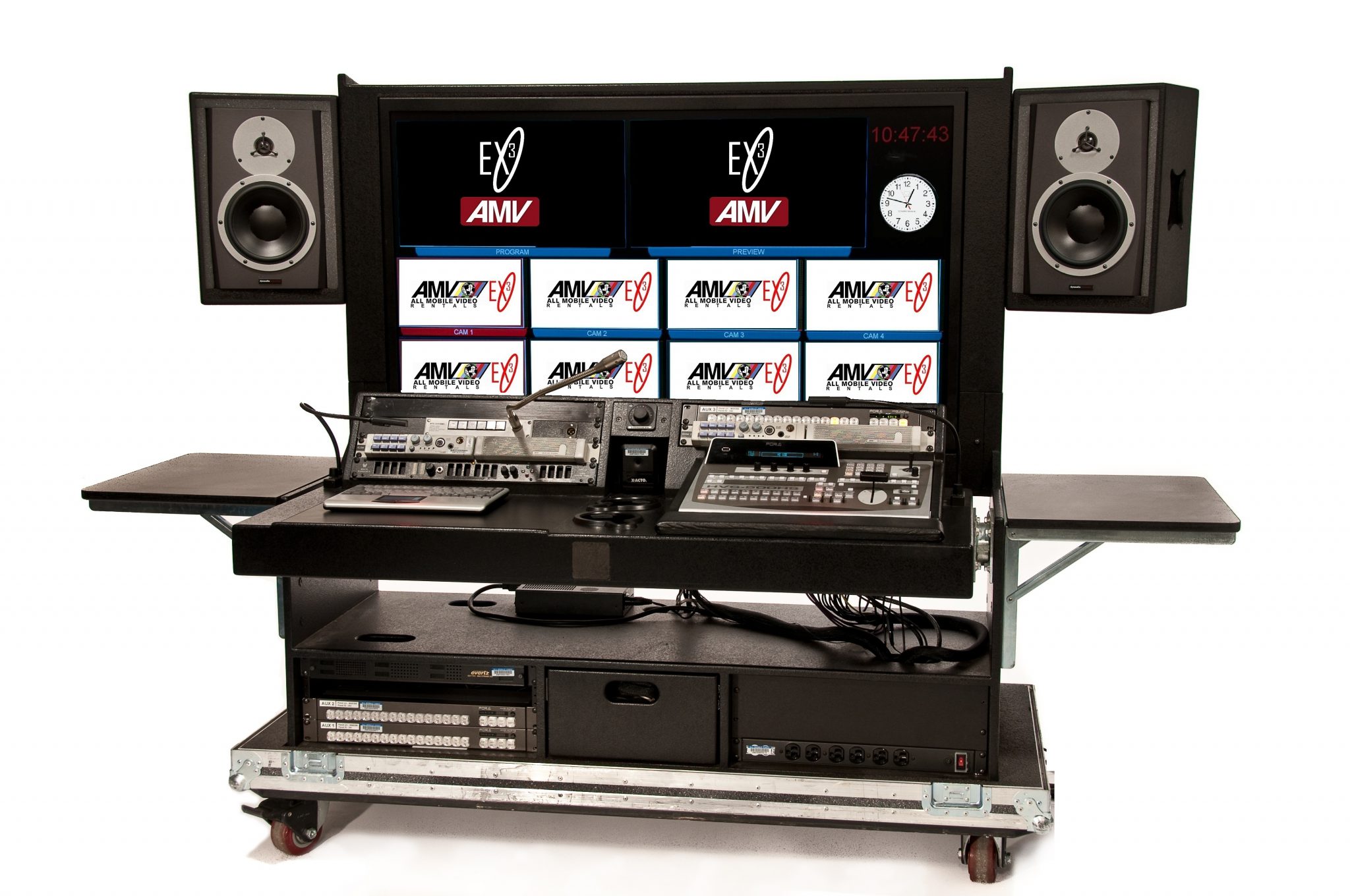

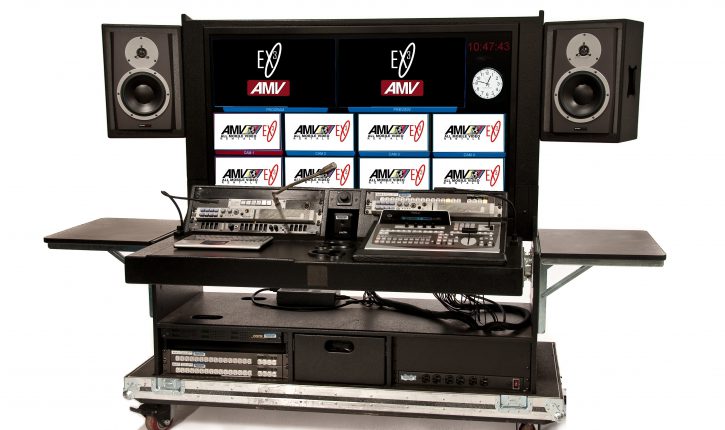

PRODUCTION BENCH
Case becomes furniture design (Director & TD plus two flip-up wings for additional space)

  • 1 Boland 52″ 1080p HD LCD, with up to twenty images Miranda multiviewers
  • 1 For-A HVS500 Hanabi HD 8-input or HVS300 12 input HD Production switchers
  • 3 RTS KP12 4-wire comms rack stations
  • 1 Wholer 4-channel PFL audio speakers
  • 2 Genelec 1029a control room audio speakers
  • 1 Oxmoor VCA volume control
  • 1 Pencil sharpener
  • 2 Little Lights
  • 1 Utility power strip

All connections to other racks are via multi-coupler cables for quick and efficient set-ups and strikes.

Multi-Format System :
1080HD/59.94i, 50i, 29.97PsF, 23.98PsF; 720HD/59.94p, 720/50p; 525SD/60, 625/50

PRODUCER & LD BENCH(s)
Integrated desk, 26” HD LCD monitor, RTS KP12 comms panel, Wholer PFL audio speaker, Little Light & flip-up wings for additional space if needed, optional printer

CAMERA OPTIONS

  • Sony HDC1500 SMPTE fiber
  • Sony HDC2500 SMPTE fiber
  • Sony HDC4300 SMPTE fiber
  • Sony F55 LIVE SMPTE fiber
  • Sony HDCP1/3 or Sony HDCP43 box cameras
  • Panasonic AW-HE130 PTZ cameras
    Or any other model of HD camera …

CAMERA SUPPORT

  • Sachtler, Vinten & OConnor tripods
  • Sachtler Vario & Vinten Fulmar, Quattro & Osprey Pedestals
  • Blackcam B60, B40 & B10 railcam systems

COMMUNICATIONS

  • RTS Cronus 4-wire communication system
  • RTS PS31, KP12s, SAP612, TW-12B
  • Twelve throw-down BP325 beltpacks & DT108/109 headsets

Can be easily augmented with optional Telos Link hybrids, Telos One phone interfaces, wireless PL systems, etc.

GRAPHICS (Optional)

  • Ross Xpression
  • Pinnacle Deko 3000
  • Chyron Duet Hyper X3

CAMERA SHADING / TERMINAL
Case becomes furniture design

  • 2 Marshall V-R44P Quad 4″ LCD Monitor
  • 1 Sony Color Critical HD monitor
  • 1 Leader LV5800 HD waveform monitor
  • 1 For A AUX router panel (3 total)
  • 1 Evertz 5600MSC Sync / Master Clock
  • 11 Evertz HD DA & down converters
  • 4 Evertz 7700ADA7+3RU Analog Video DA
  • 4 Evertz 7700ADA-AUD-3RU audio DA
  • 3 Leitch Analog Video DA
  • 2 Leitch Analog Audio DA
  • 1 AJA HD10A Analog Component HD to HD-SDI
  • 1 Miranda AMX800 timecode embedder
  • 2 Miranda KALEIDO-ALTO-HD multiviewers
  • 1 Miranda remote control unit
  • 1 Rane AVA22 2-ch audio delay
  • Up to 8 Sony RMB/RCP paint boxes

AUDIO
Audio distribution amplifiers to all record ISOs and Line-cut recordings are included in the Tapeless video carrypack standard configuration. AMV’s DM2K audio carrypack is also available optionally.

POWER & SPACE REQUIREMENT

  • Power Draw: 105-135 amps (7-9 15amp circuits) single phase 110v (depending on the quantity of cameras/recorders required). AMV can supply a power tie-in package and PD (optionally)
  • Space: typically 120-225 sq ft active space plus 100-160 sq ft storage

DECKS

  • Aja Ki Pro
  • Cinedeck ZX, MX, RX
  • Sony XDCAM Optical recorders
    Other recorder make/models available (optionally)

LENSES
All Mobile Video uses a comprehensive inventory of broadcast quality lenses, including:

  • Fujinon UA107x8.4 4K box lens
  • Fujinon XA87x13.2 HD box lens
  • Fujinon XA101x8.9 HD box lens
  • Fujinon XA99x8.4 HD box lens
  • Fujinon XA88x8.8 HD box lens
  • Fujinon XA87x9.3 HD box lens
  • Fujinon HA66x9.5 HD box lens
  • Fujinon HA27x6.5 HD box lens
  • Fujinon HA24x7 HD box lens
  • Fujinon HA22x7.2 HD box lens
  • Fujinon HA42x9.7 HD lens
  • Fujinon HA22x7.8 HD lens
  • Fujinon HA13x4.5 (HA14x4.5, ZA12x4.5) HD W/A lens
  • Fujinon HA18x5.5 HD W/A lens
  • Zeiss Digi-Prime & Digi-zoom 6-24mm, 17-112mm cine lenses
    Fujinon HAc15x7.3 cine lens
